Bajaj Platina 125
606 parts across 46 plates
Color (Transition)Doc: 71111029Rev: REV. 00Date: 2010-03-0146 assemblies · 16 kits
Plate 1
Cover Cylinder Head
7 parts
Plate 2
Cylinder Head
10 parts
Plate 3
Valve
6 parts
Plate 4

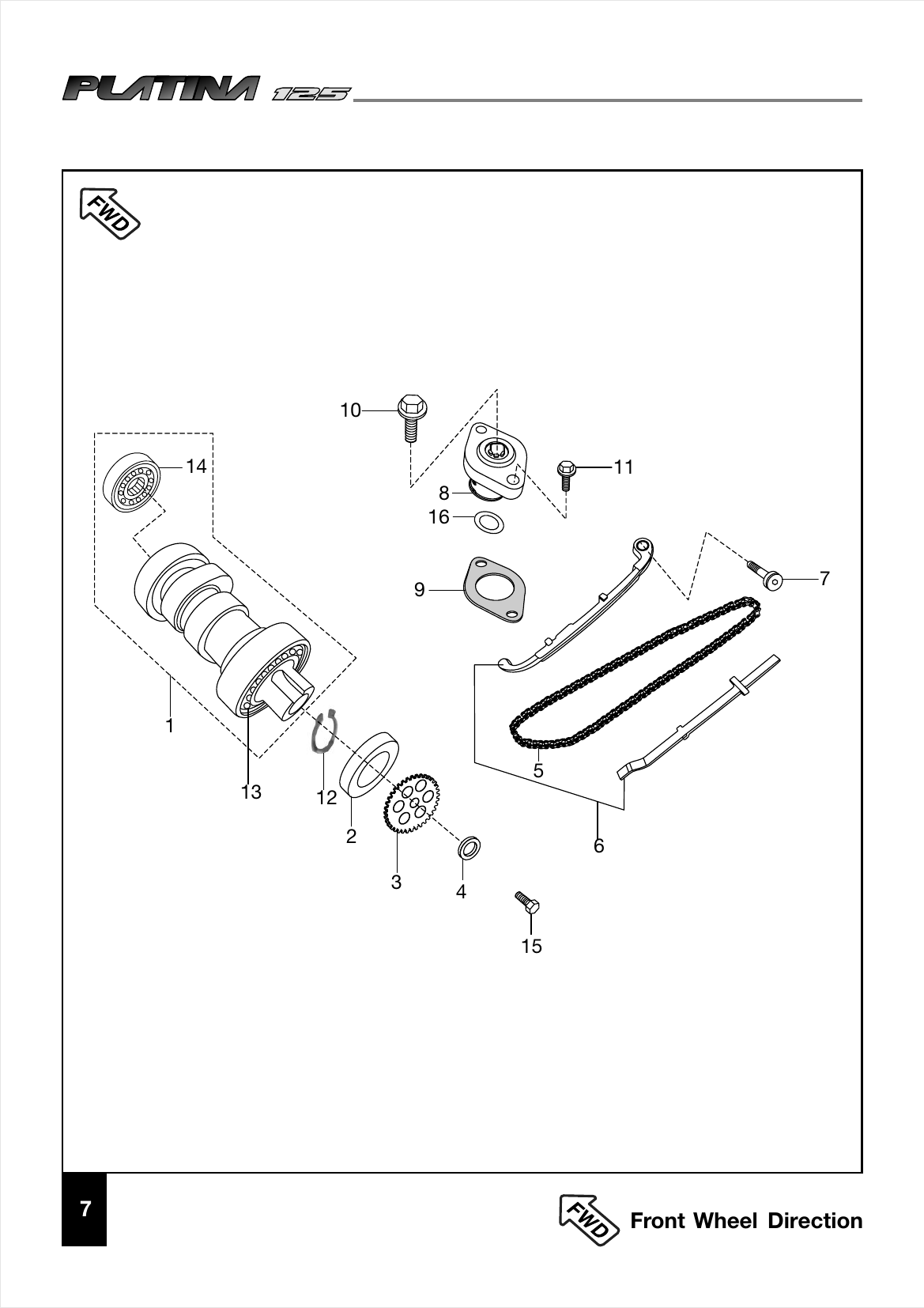

Camshaft / Tensioner
16 parts
Plate 5
Cylinder Block and Piston
6 parts
Plate 6
Crankshaft
12 parts
Plate 7

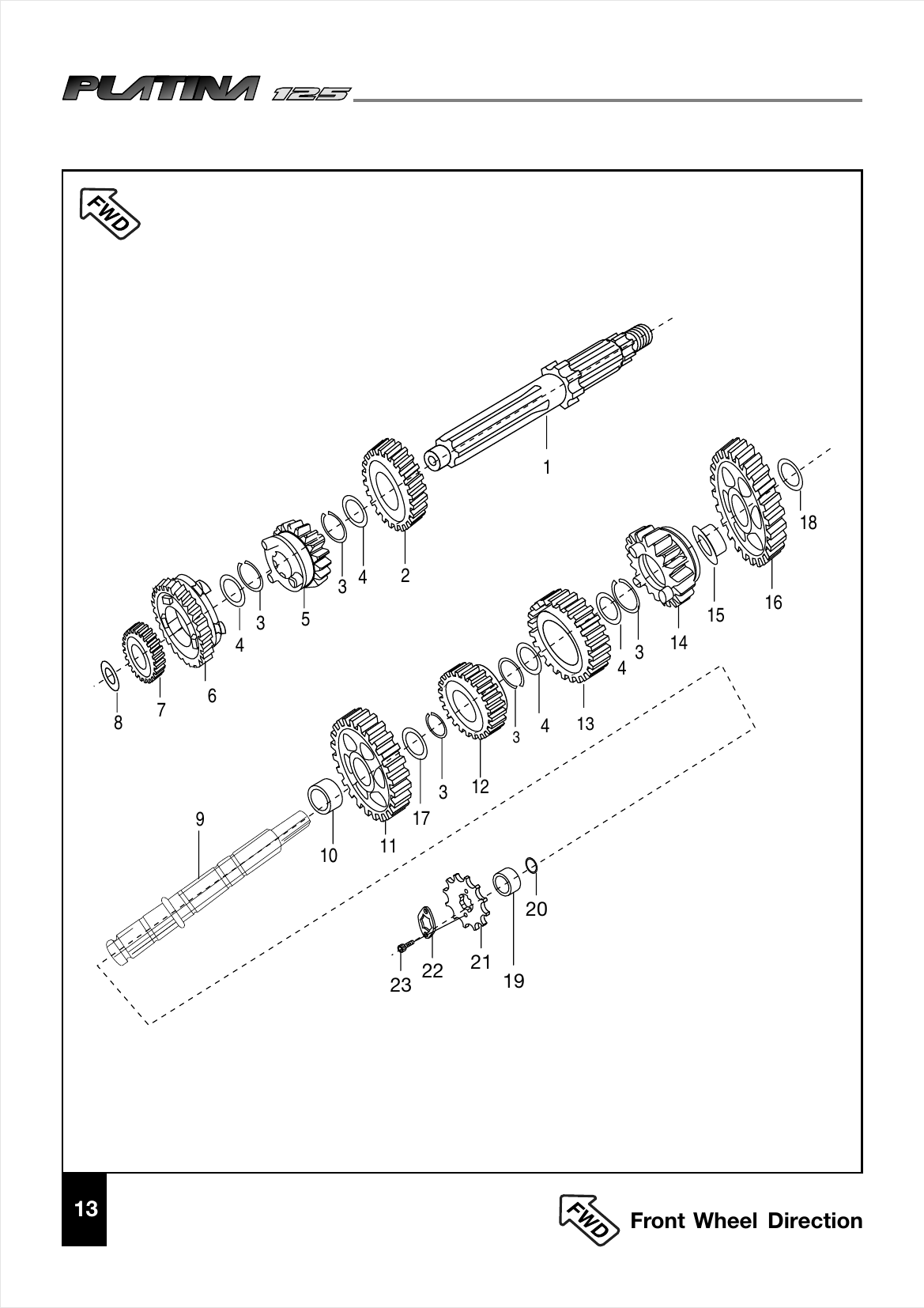

Transmission
27 parts
Plate 8
Change Drum / Shift Fork
10 parts
Plate 9

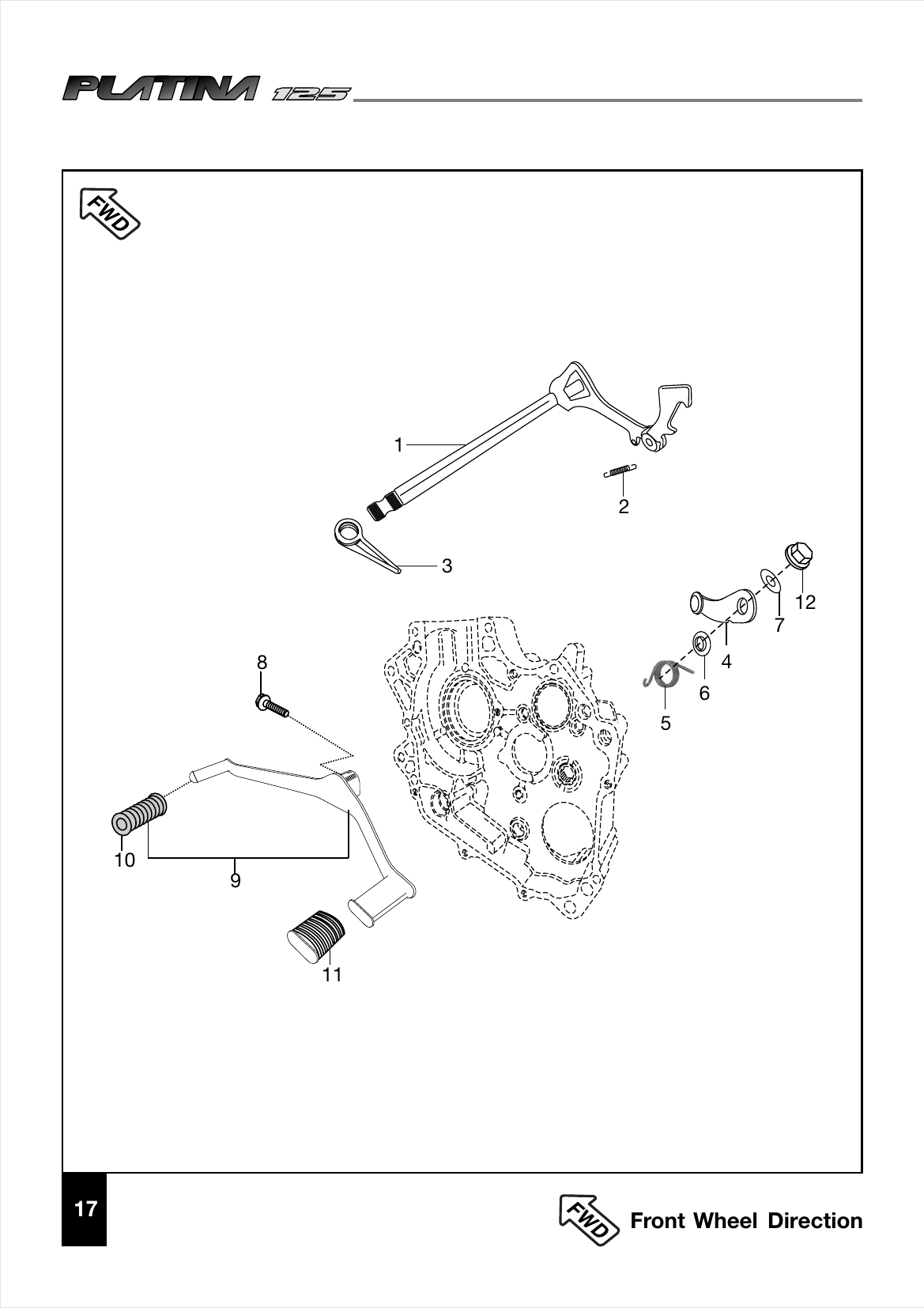

Gear Change Mechanism
12 parts
Plate 10
Engine Assembly / Crankcase RH
14 parts
Plate 11

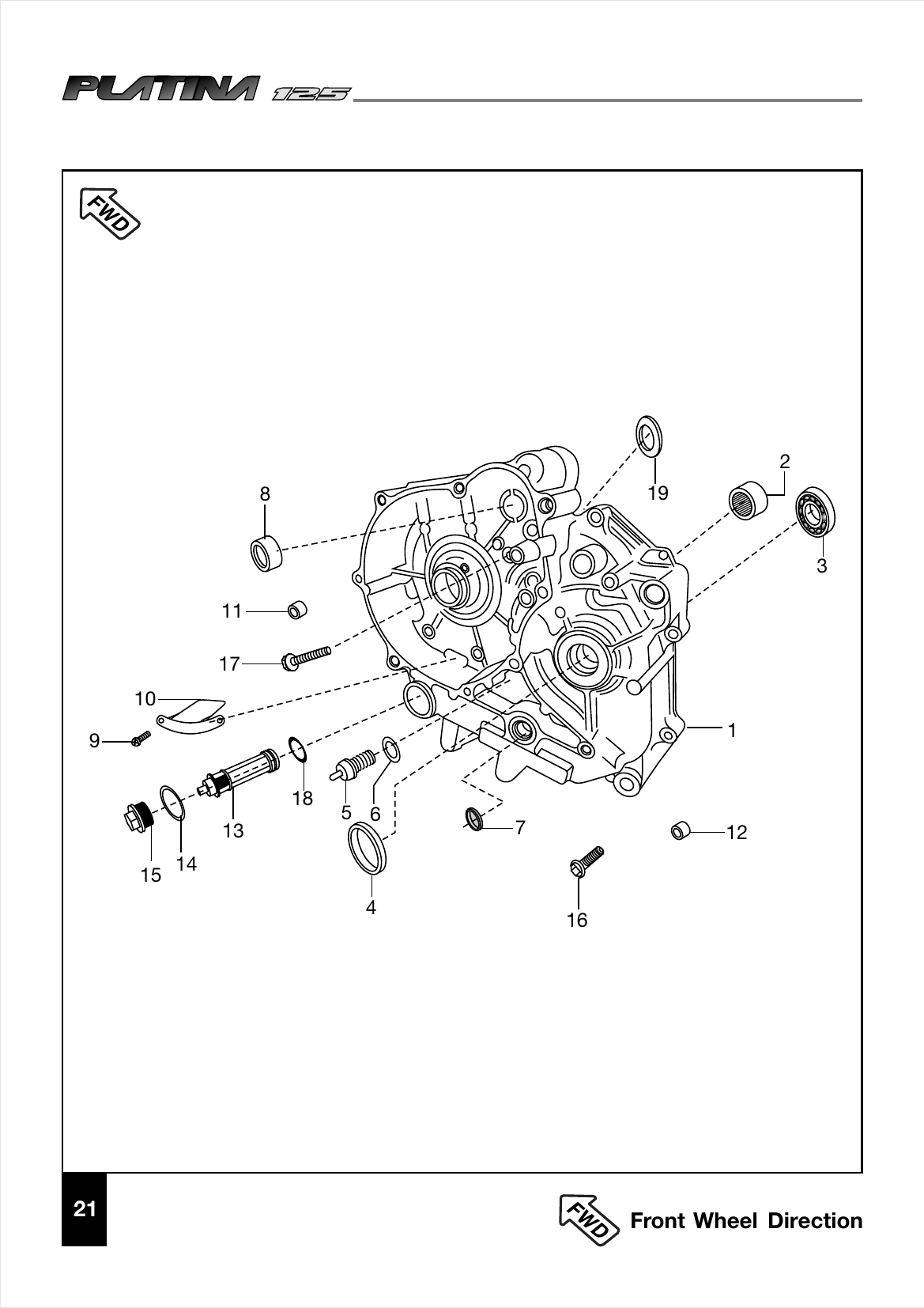

Crankcase LH
19 parts
Plate 12
Cover Clutch
23 parts
Plate 13

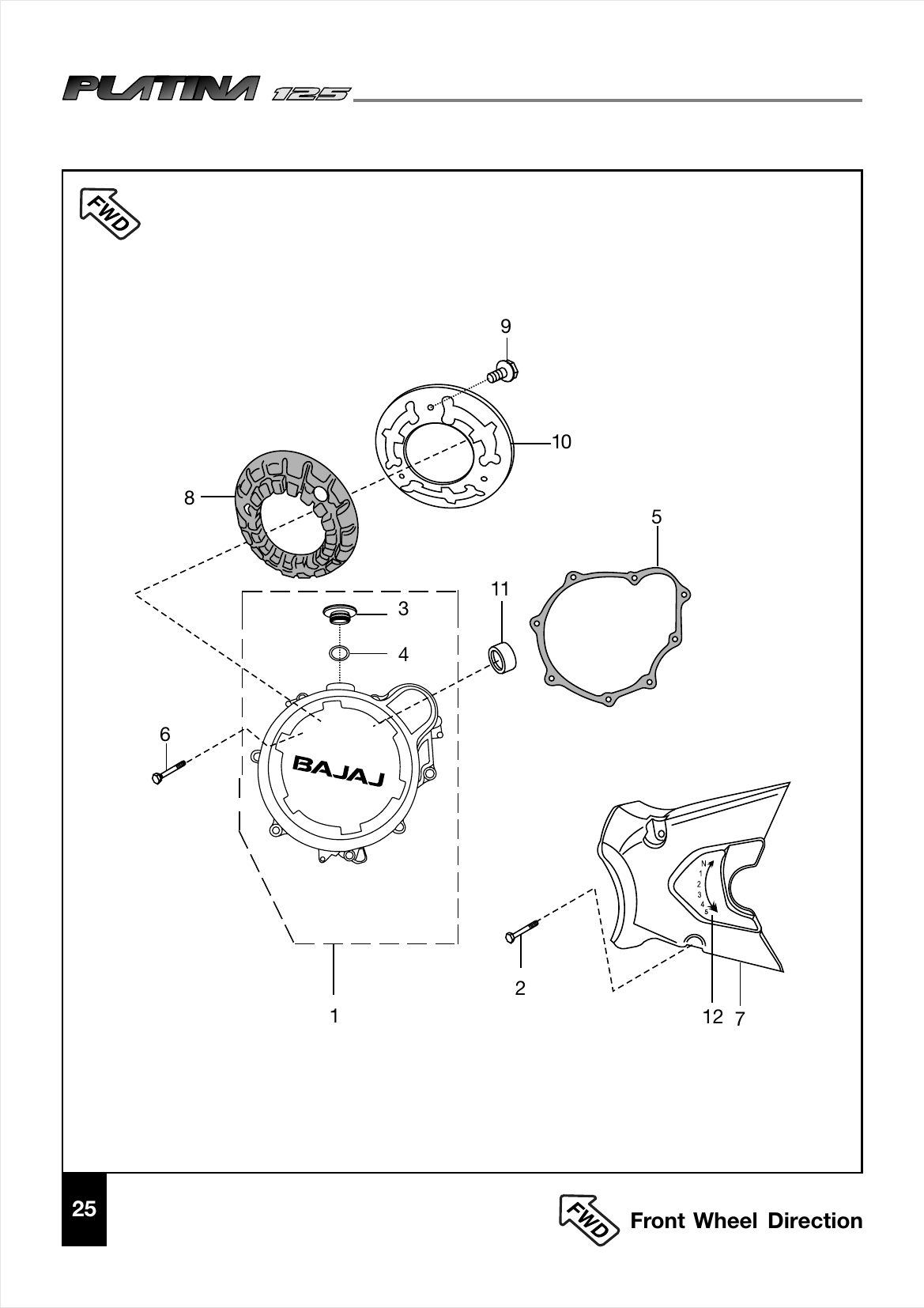

Cover Magneto
12 parts
Plate 14
Clutch Assly
16 parts
Plate 15
Kick Starter Mechanism
14 parts
Plate 16

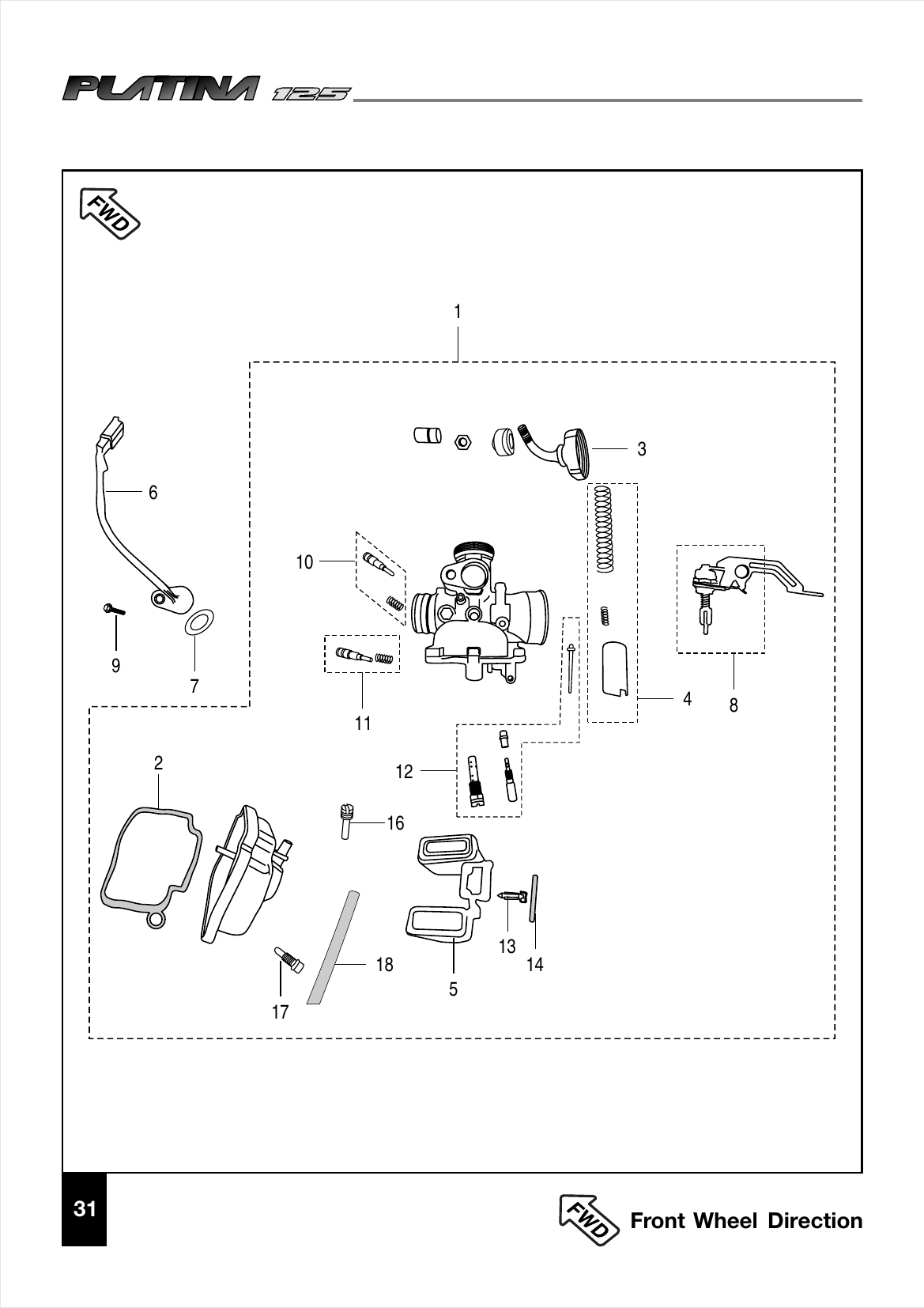

Carburettor
18 parts
Plate 17

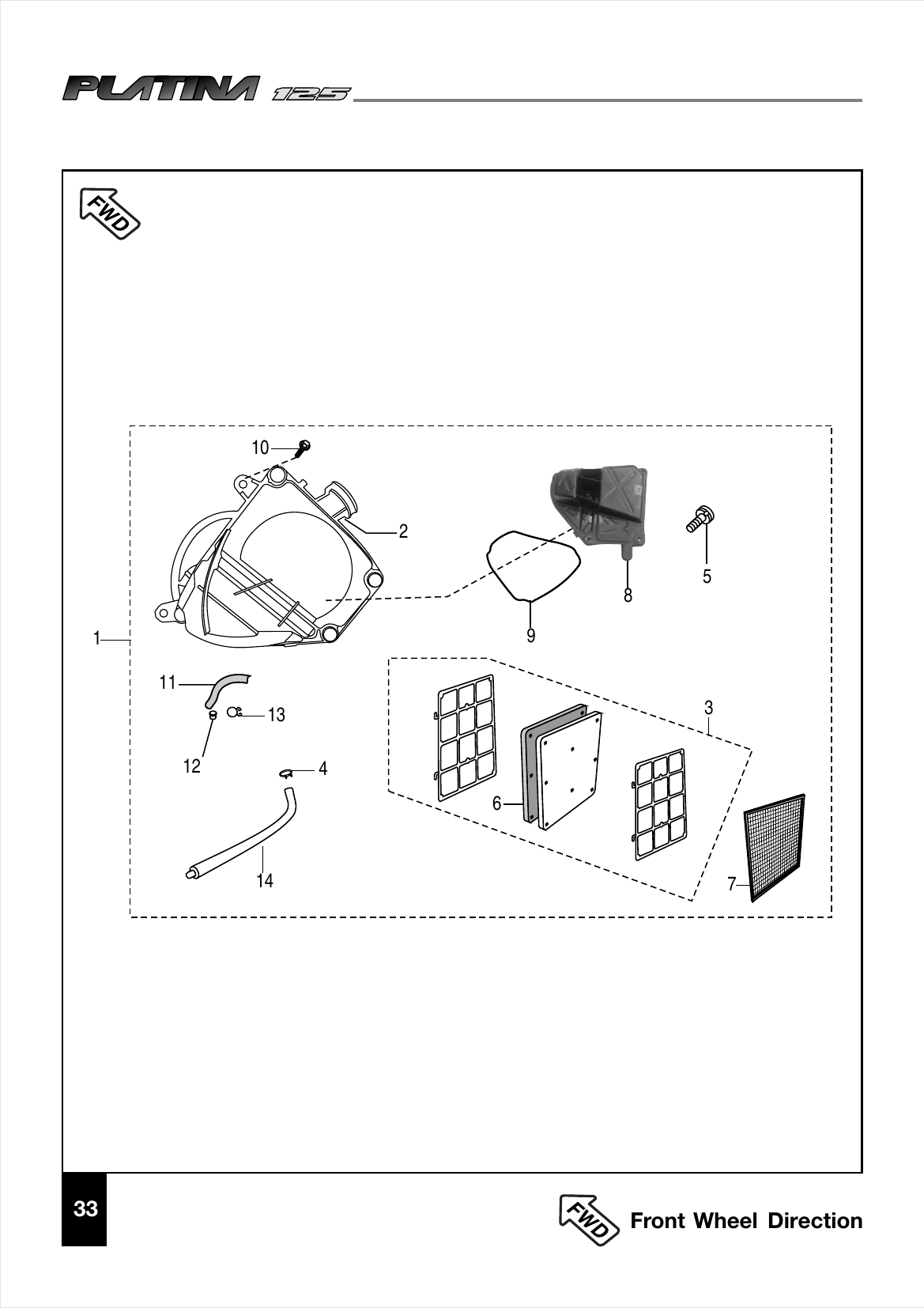

Air Cleaner Complete
14 parts
Plate 18
Silencer Assembly
9 parts
Plate 19

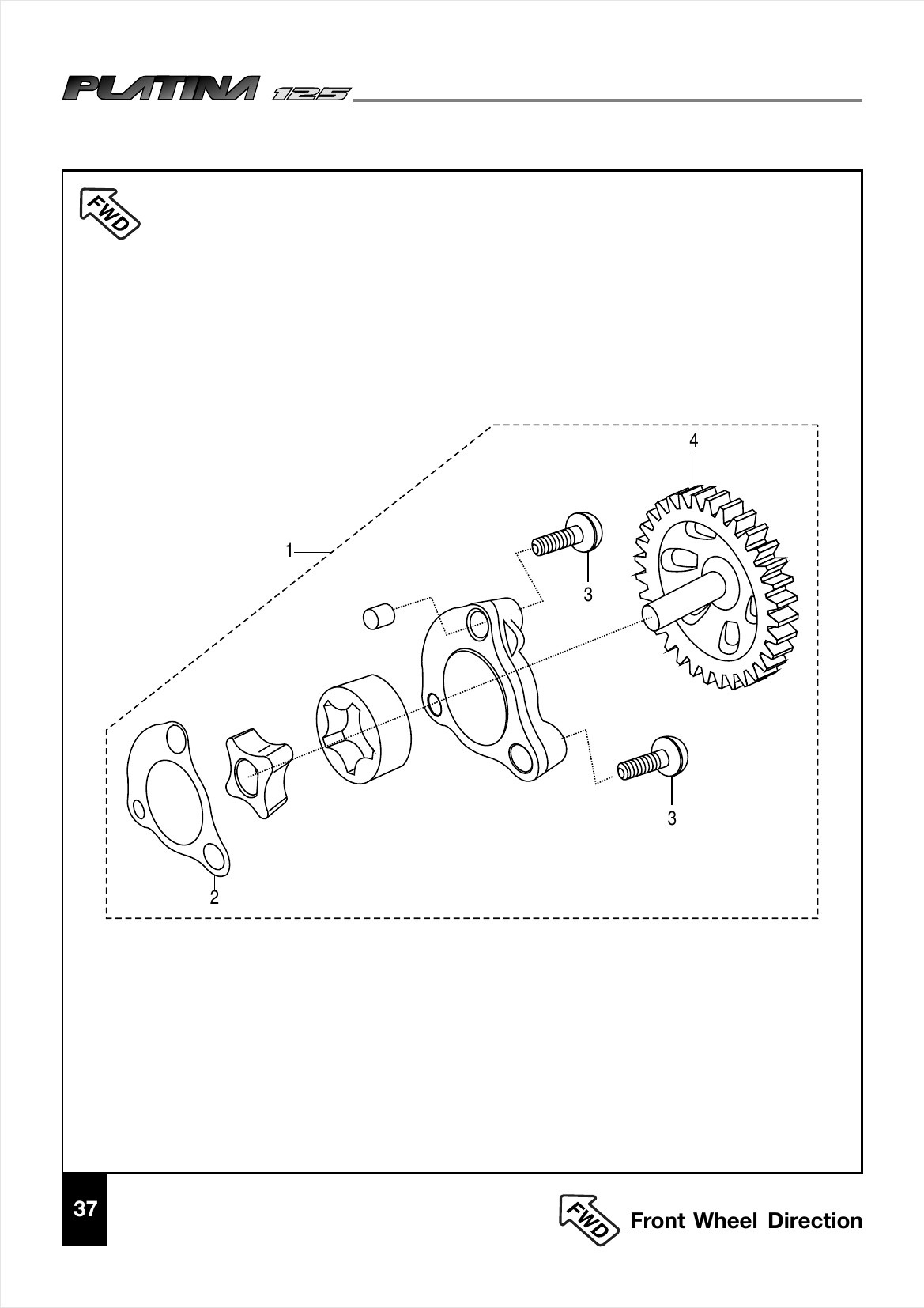

Oil Pump
4 parts
Plate 20
Starter & Motor Assembly
19 parts
Plate 21
Magneto, CDI & H.T. Coil
14 parts
Plate 22

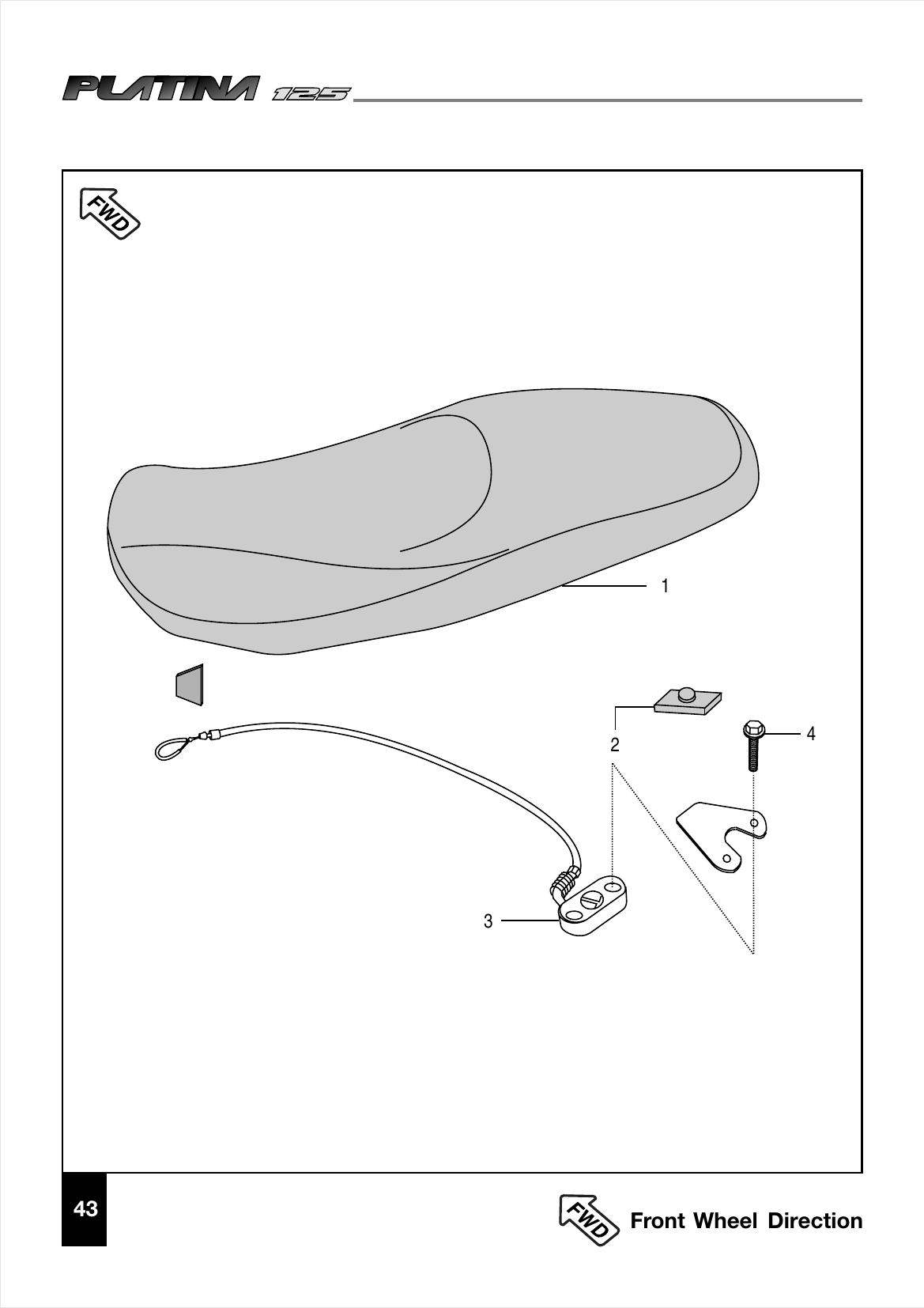

Seat Assembly / Seat Lock
4 parts
Plate 23
Engine Mountings
8 parts
Plate 24
Frame and Frame Fittings
8 parts
Plate 25

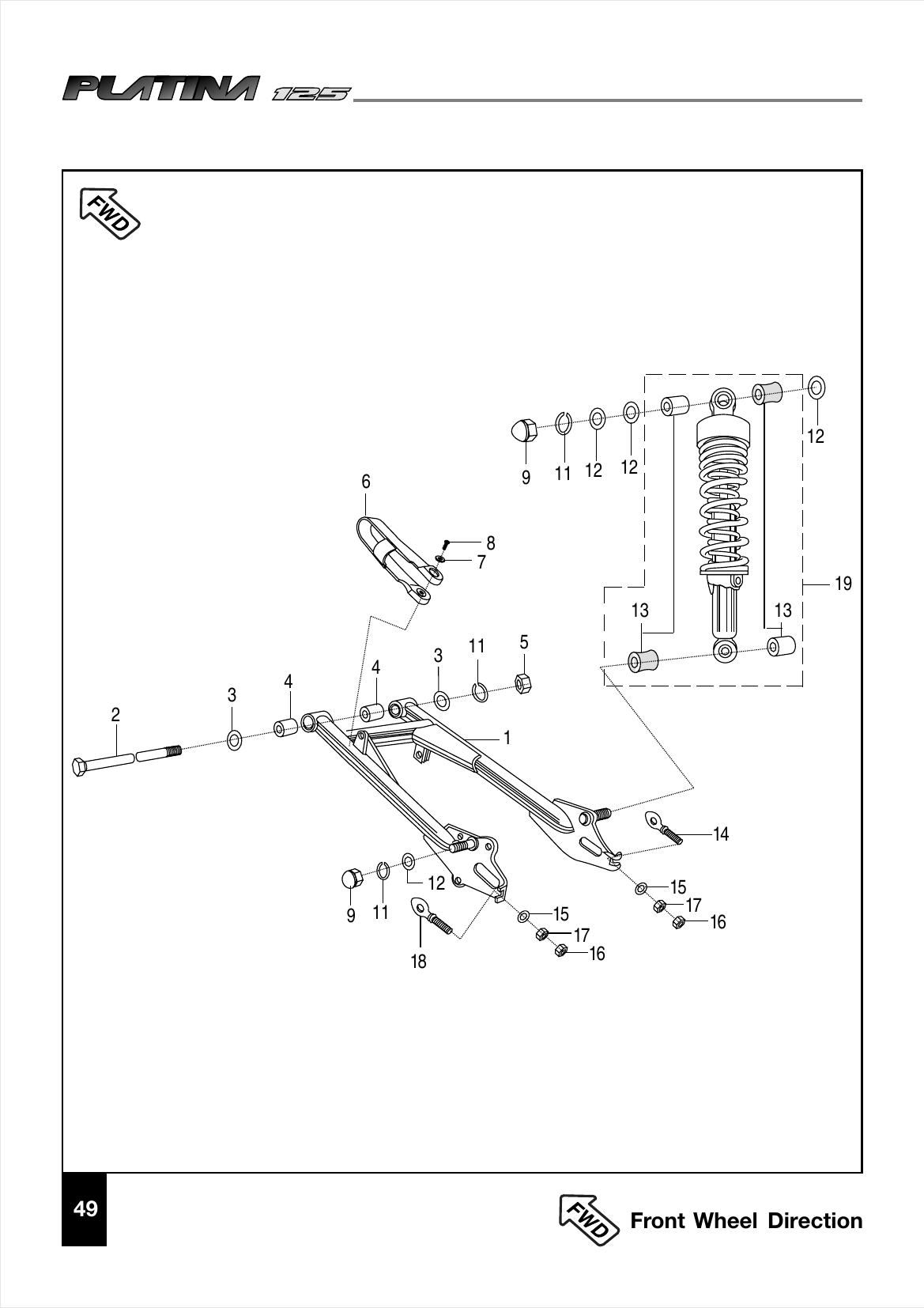

Swing Arm / Rear Shock Absorber
19 parts
Plate 26
Rider & Pillion Foot Rest
11 parts
Plate 27
Mudguard - Front & Rear
7 parts
Plate 28
Stand Assembly
9 parts
Plate 29
Tube / Tyre / Rim
6 parts
Plate 30
Front Hub
25 parts
Plate 31
Rear Hub
28 parts
Plate 32

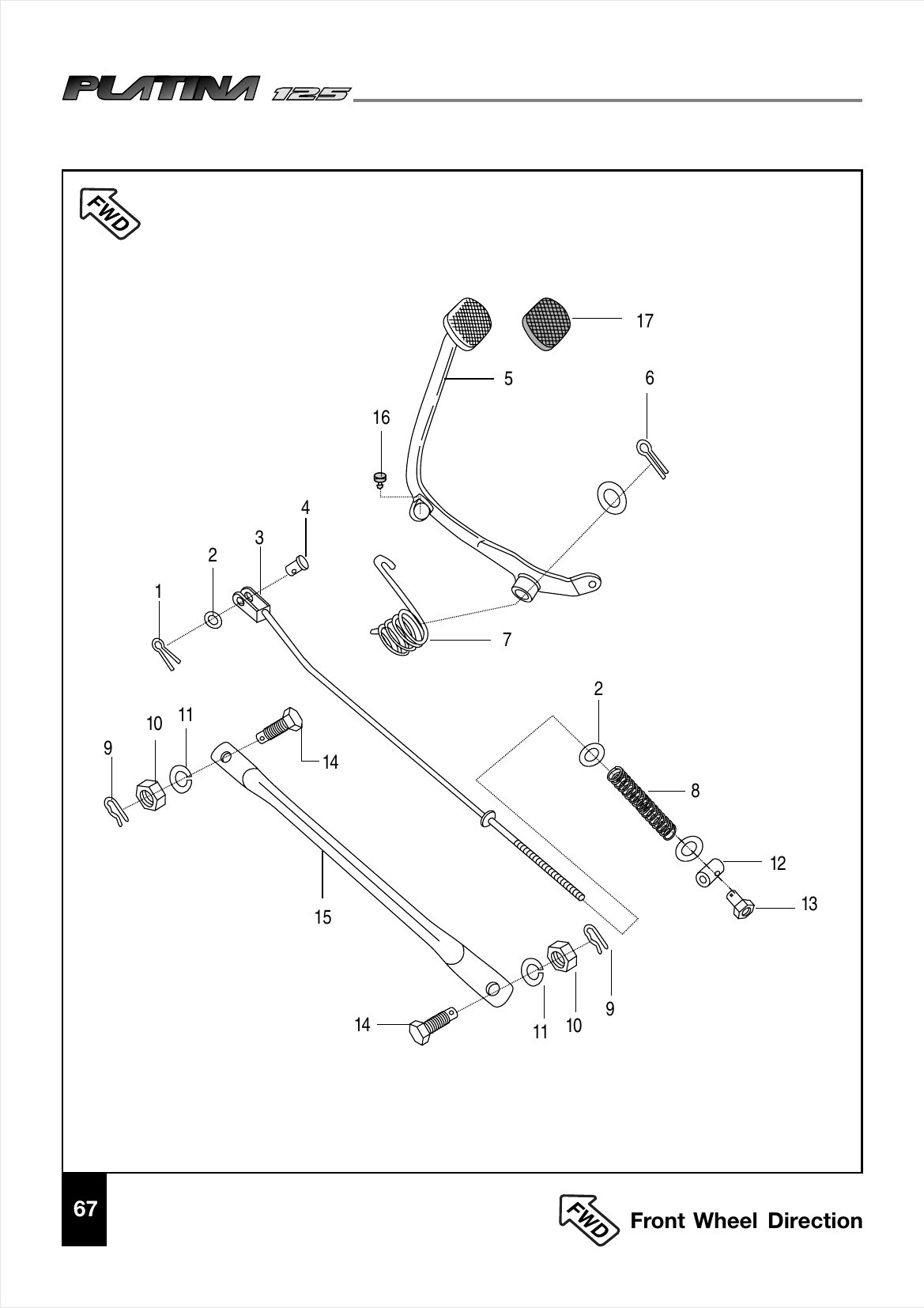

Rear Brake Pedal
17 parts
Plate 33
Handle Bar
27 parts
Plate 34
Front Fork
19 parts
Plate 35
Painted Parts and Decals
26 parts
Plate 36
Petrol Tank, Cap Tank and Gauge Fuel
16 parts
Plate 37
Fittings - Petrol Tank, Side Covers & Cover Seat
10 parts
Plate 38
Meter Assembly
12 parts
Plate 39
Control Cables
9 parts
Plate 40
Chain Case
4 parts
Plate 41
Head Lamp & Fairing
16 parts
Plate 42
Indicator Light Assembly
7 parts
Plate 43
Tail Lamp Assly / Front Number Plate
18 parts
Plate 44
Electrical Equipments
14 parts
Plate 45
Tool Kit
1 parts
Plate 46
Accessories / Grab Handle
3 parts
