BAJAJ
CT 100 KS (CBS)
774 parts across 53 plates
Color (Transition)Doc: 71112902Rev: REV. 04Date: 2019-12-0153 assemblies · 6 kits
Plate 1
Cover Cylinder Head
7 parts
Plate 2

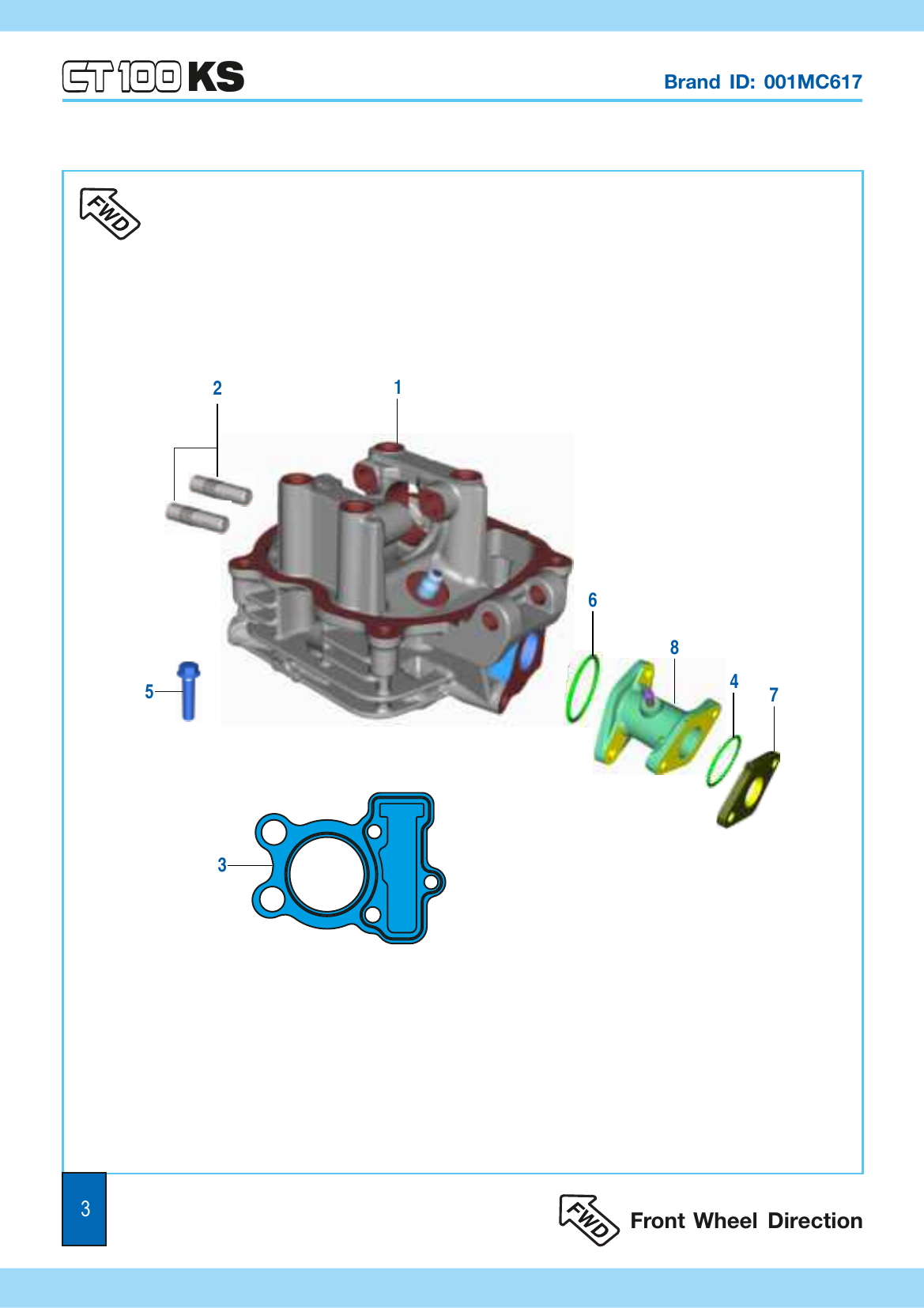

Cylinder Head
8 parts
Plate 3

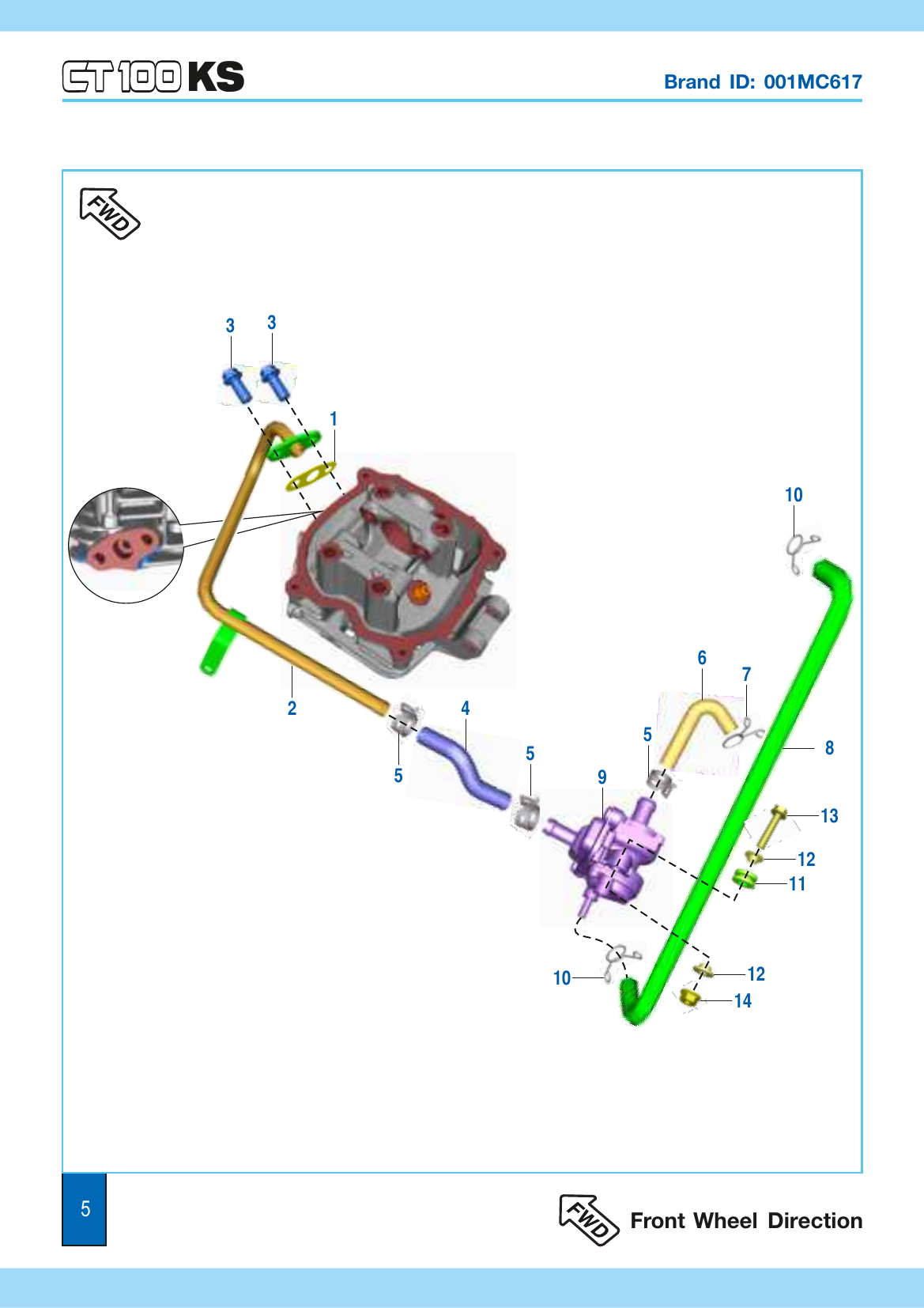

SAI System
14 parts
Plate 4

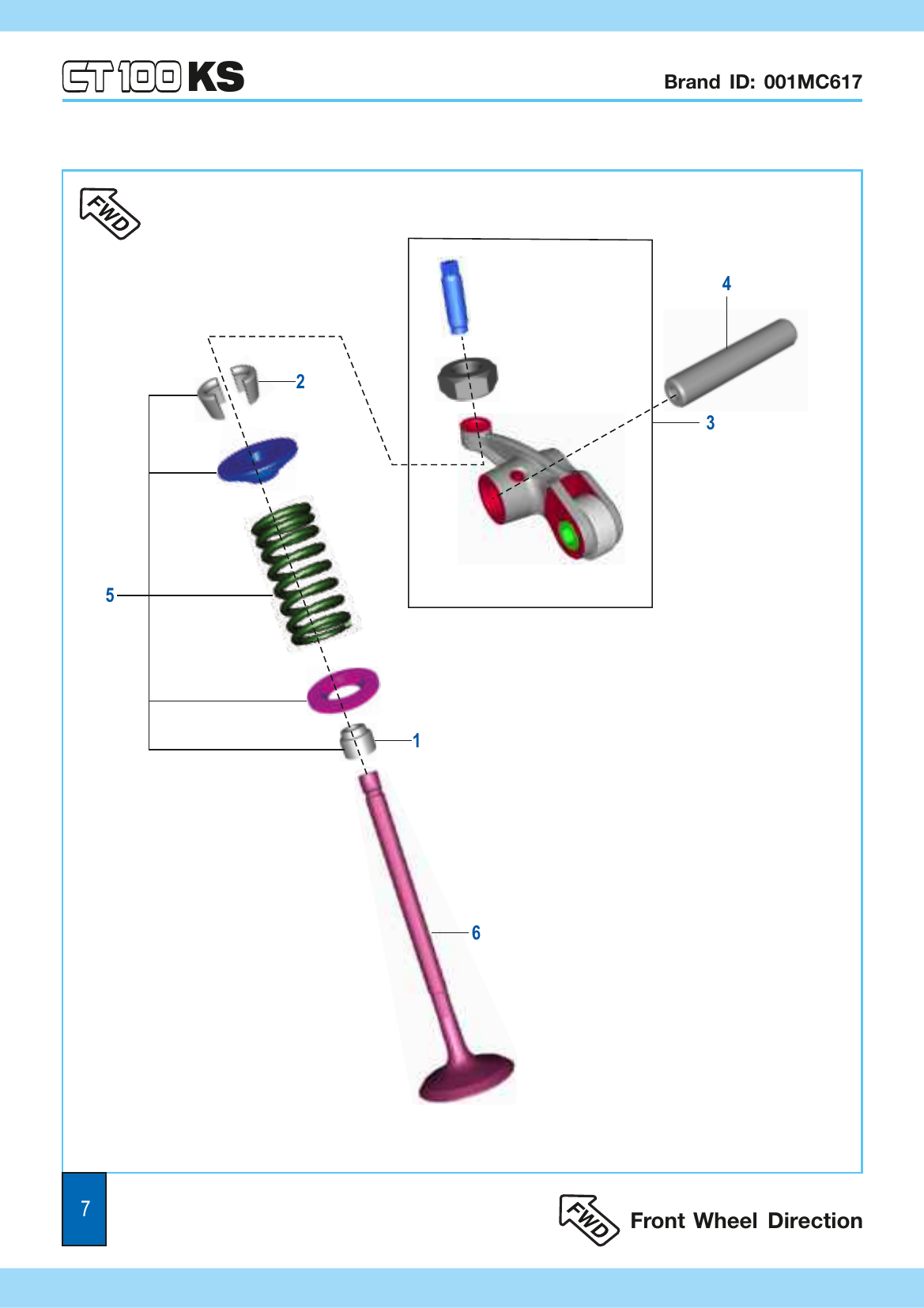

Valve
6 parts
Plate 5

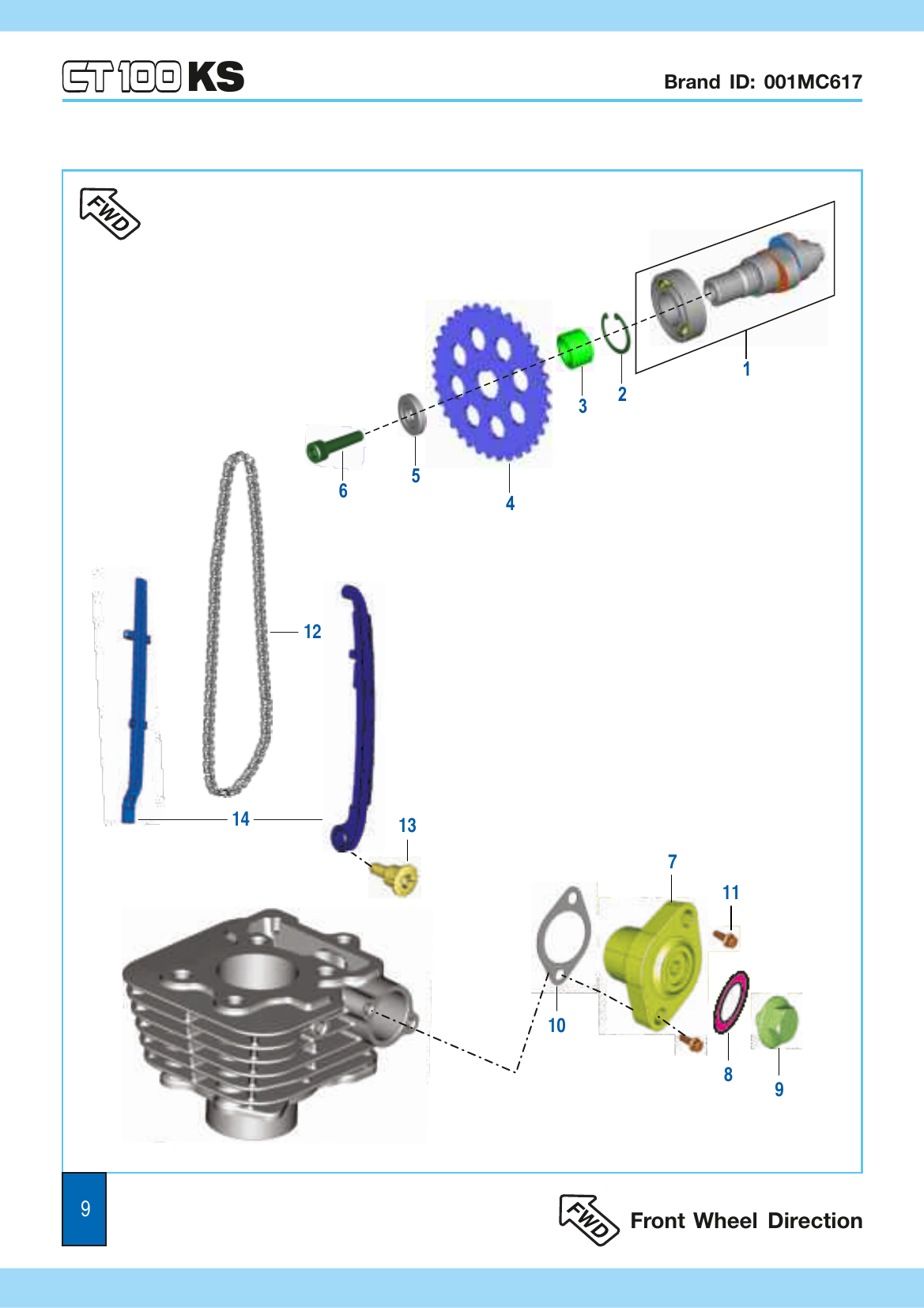

Camshaft / Tensioner
18 parts
Plate 6

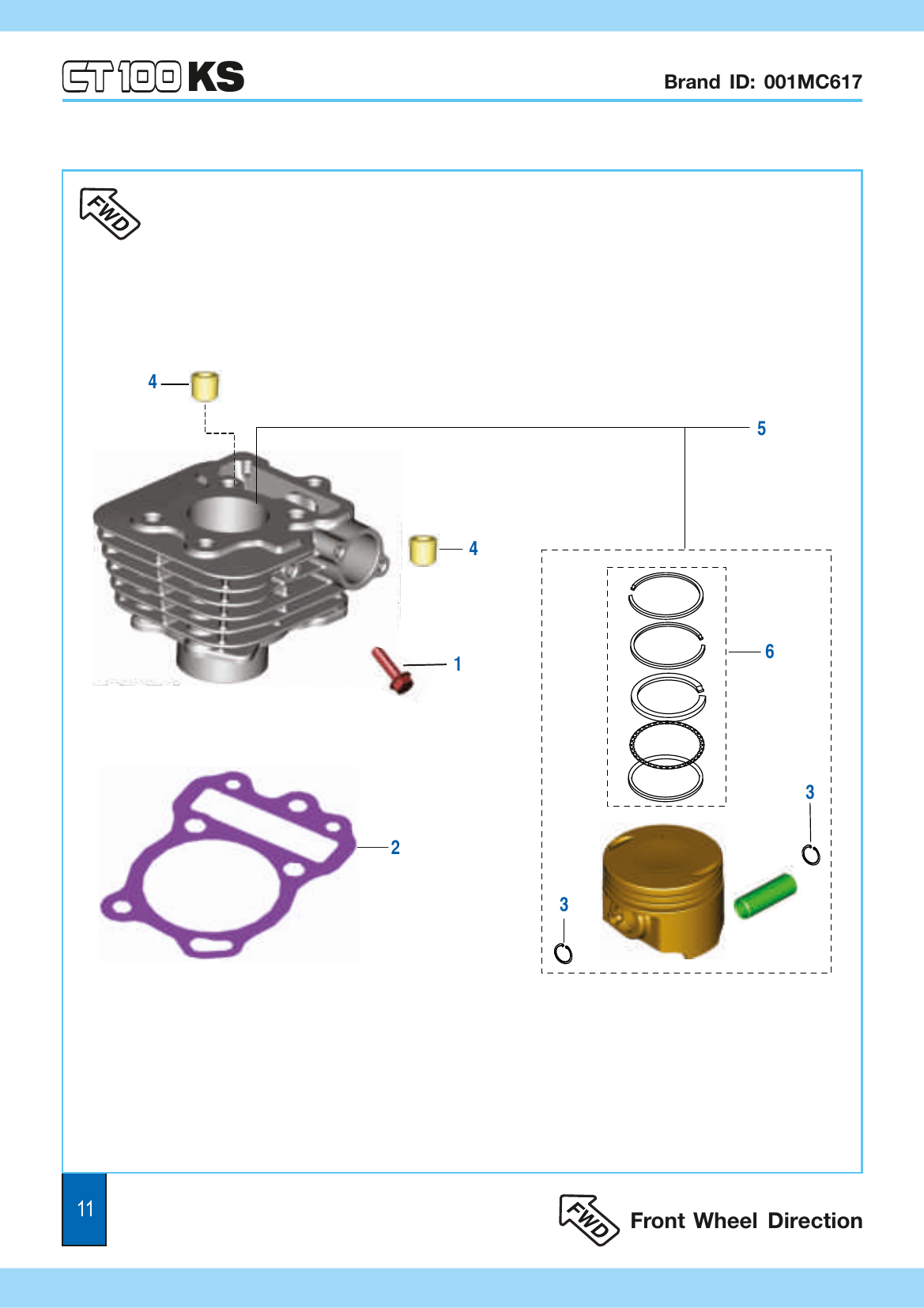

Cylinder and Piston
7 parts
Plate 7

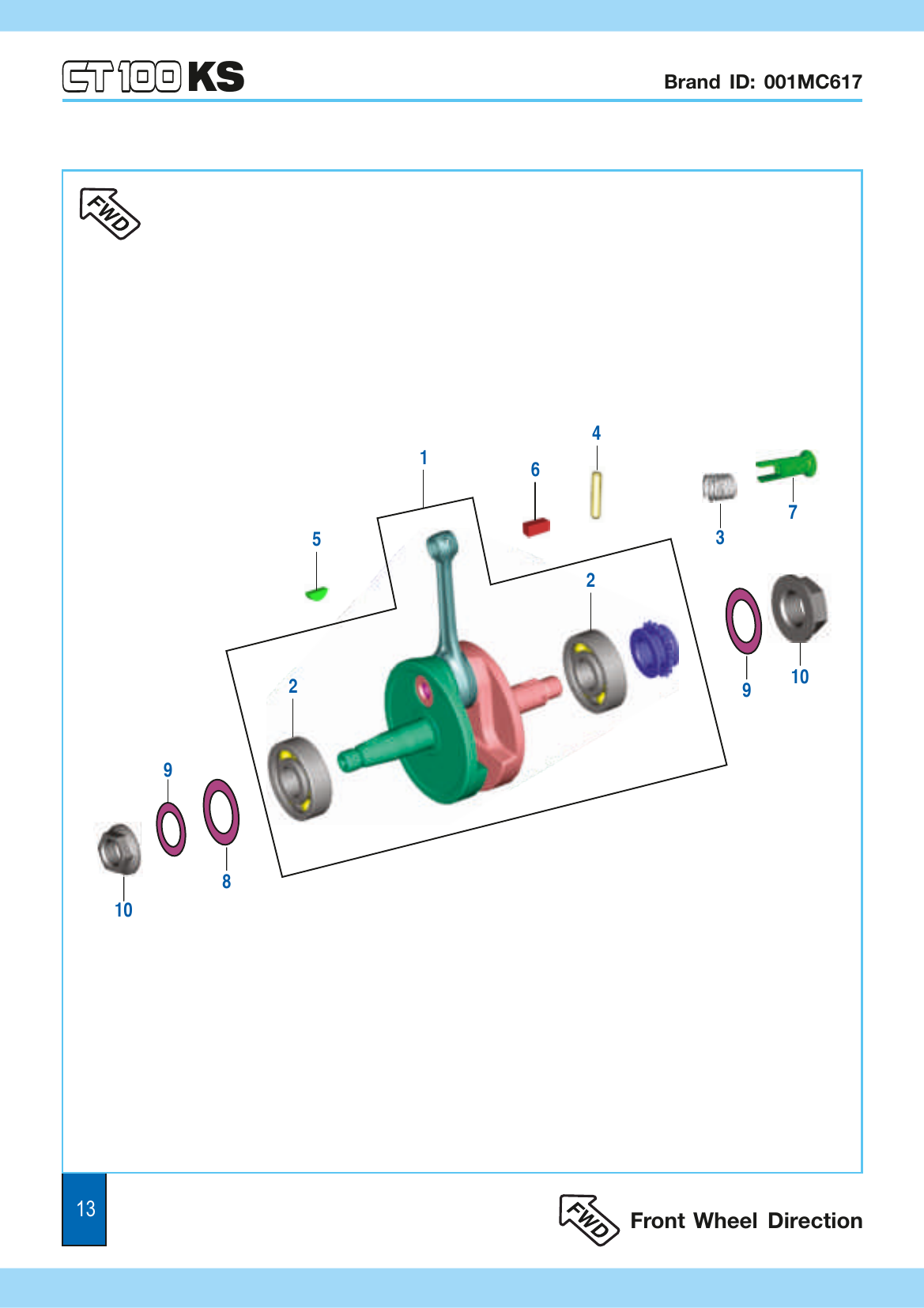

Crankshaft
11 parts
Plate 8

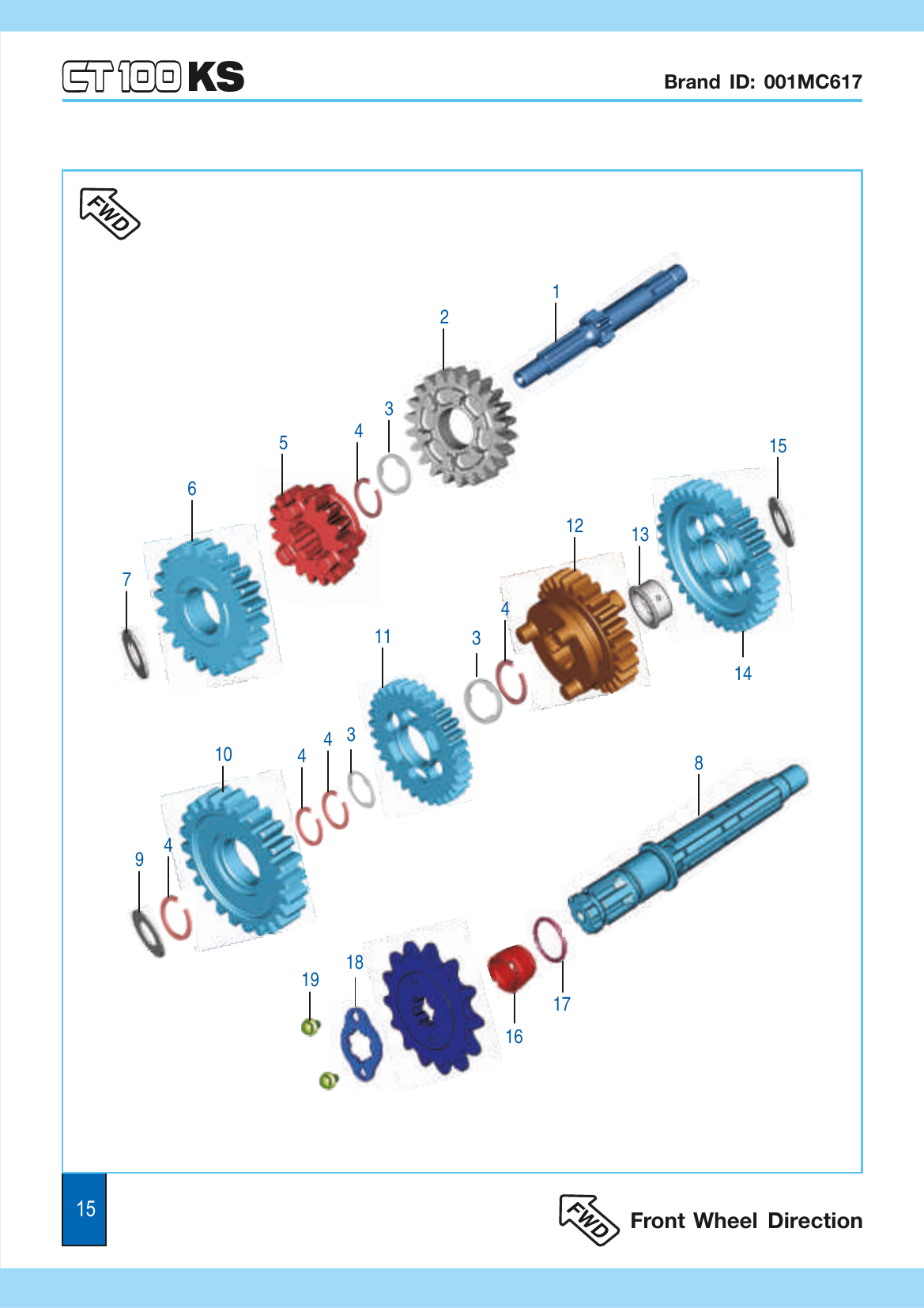

Transmission
19 parts
Plate 9

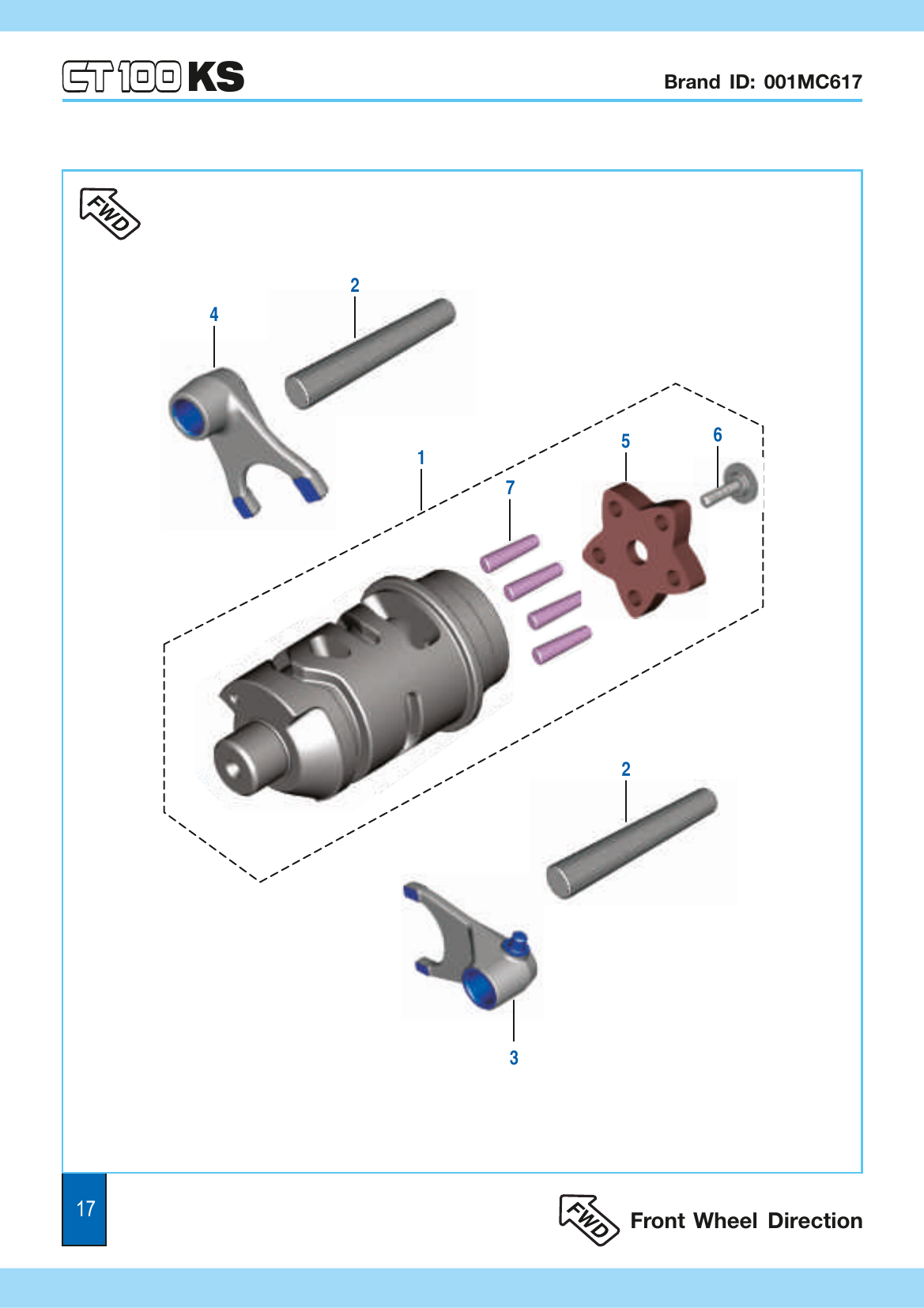

Change Drum / Shift Fork
7 parts
Plate 10

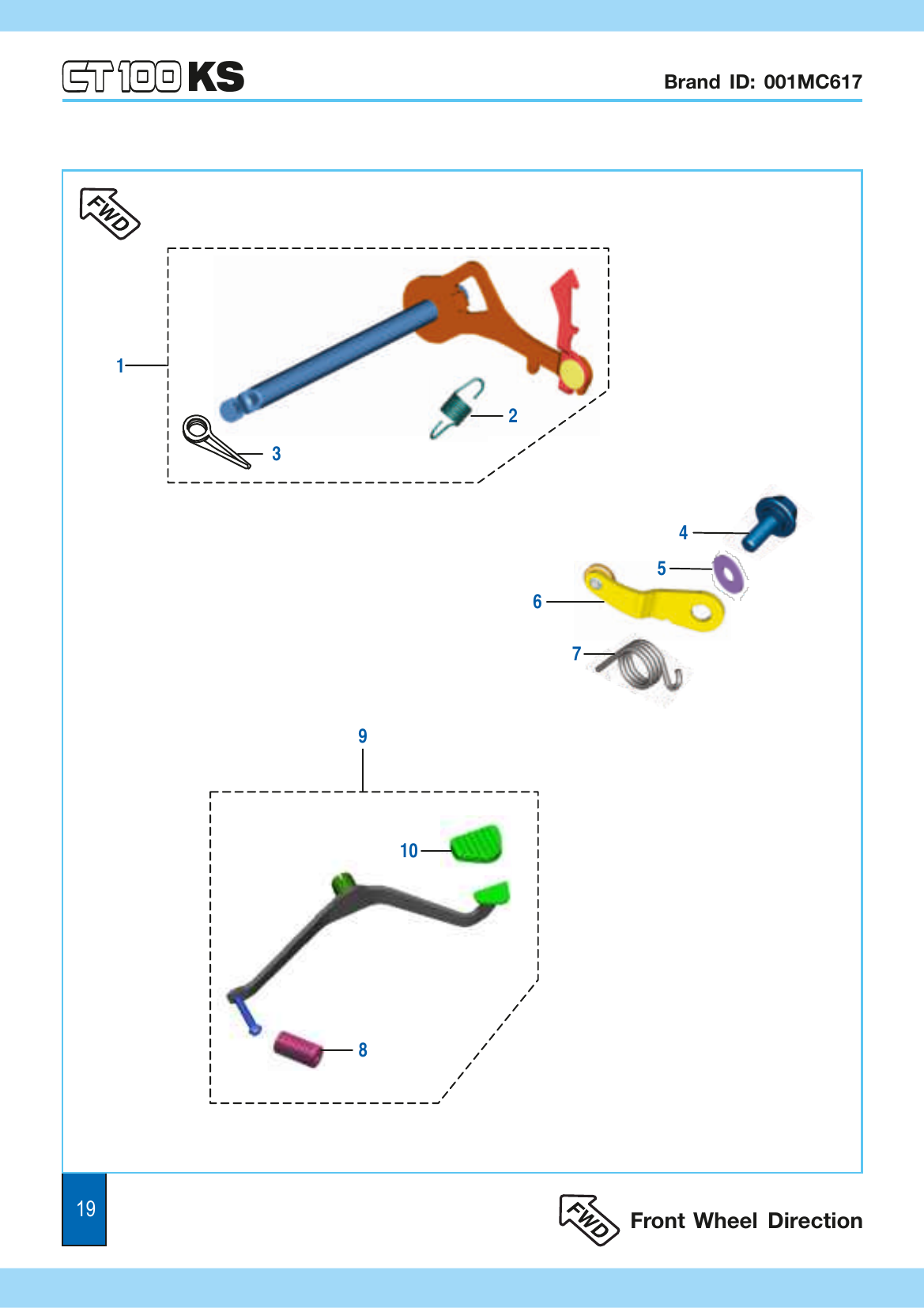

Gear Change Mechanism
10 parts
Plate 11

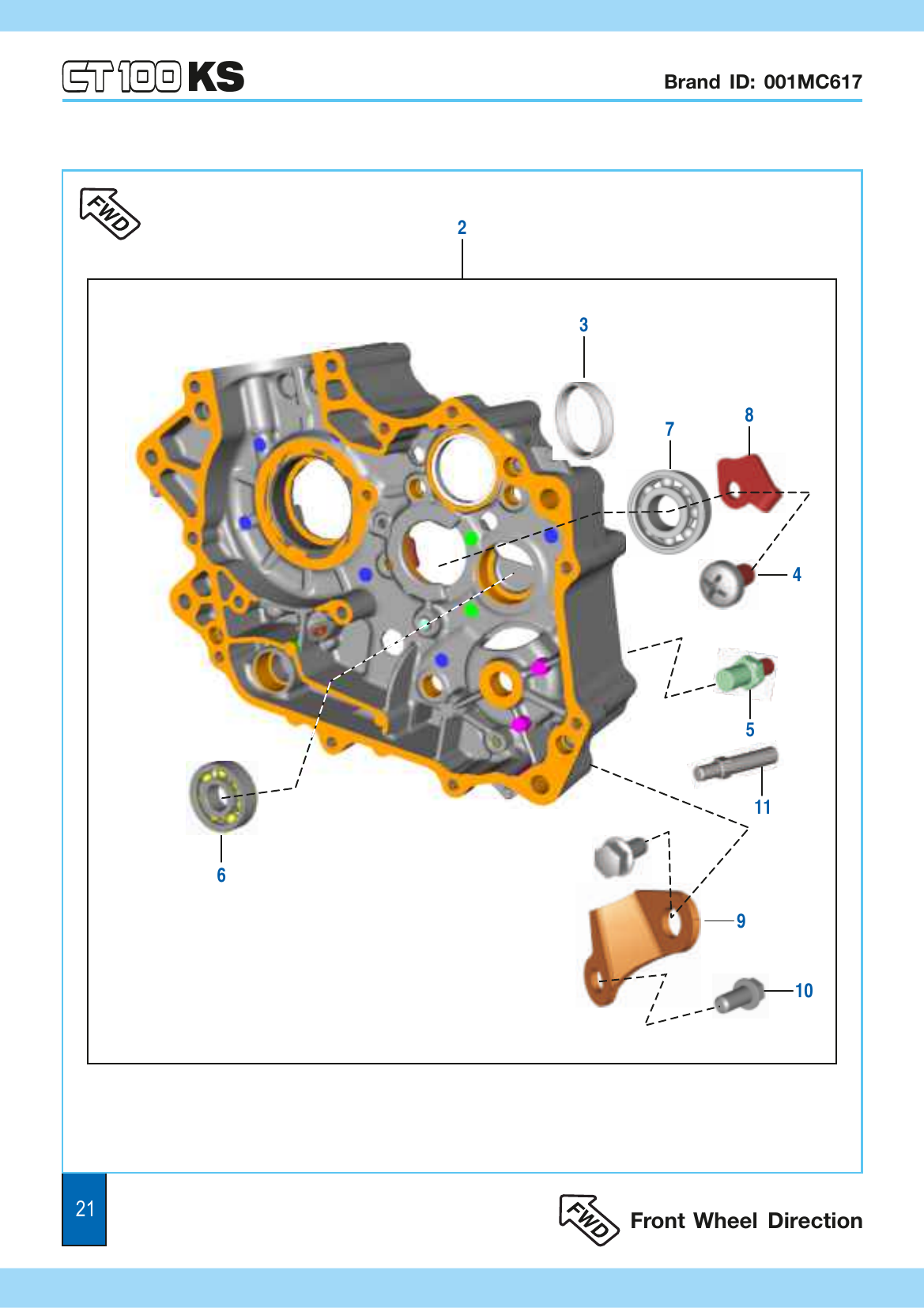

Engine Assembly / Crankcase RH
11 parts
Plate 12

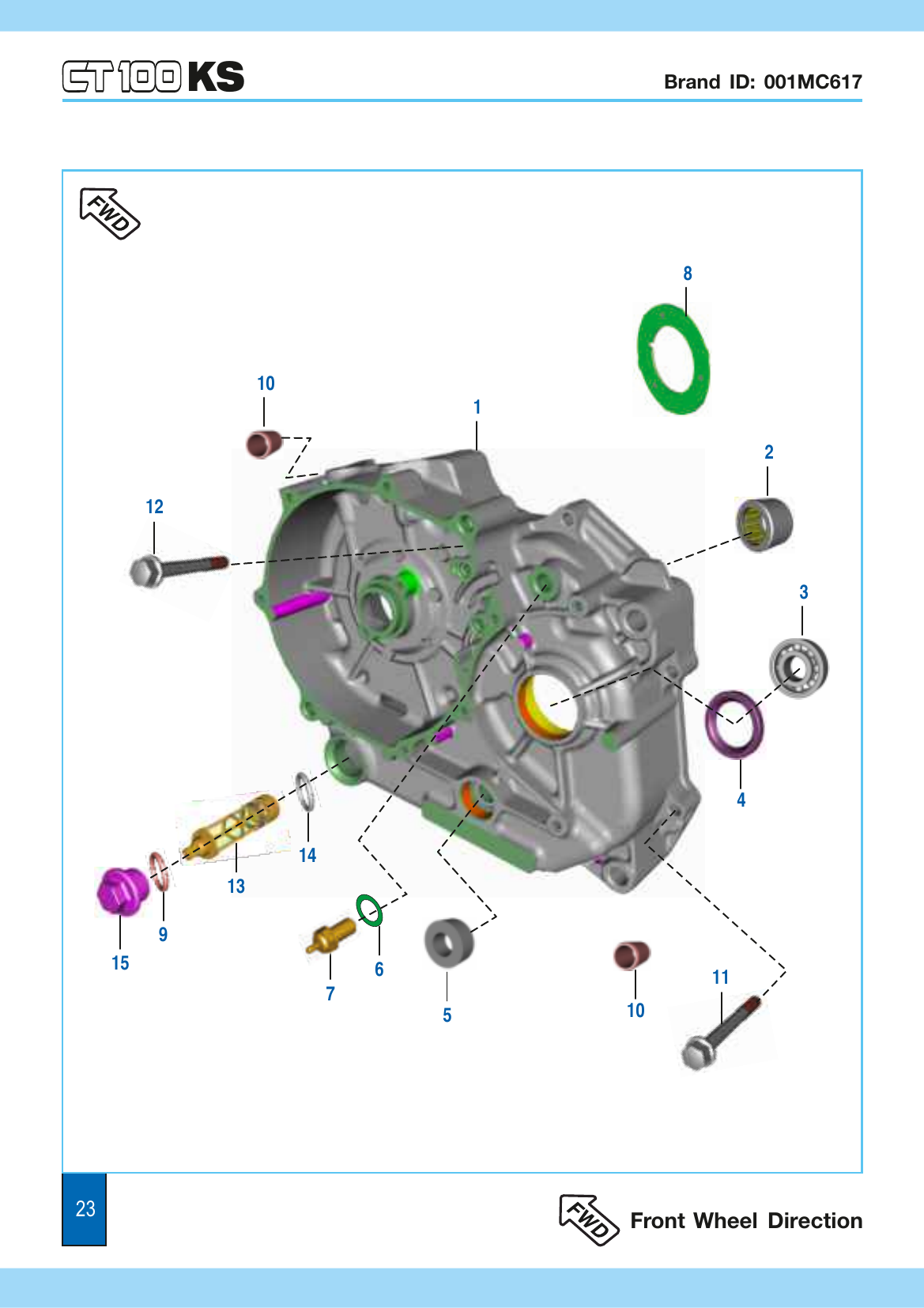

Crankcase LH
15 parts
Plate 13

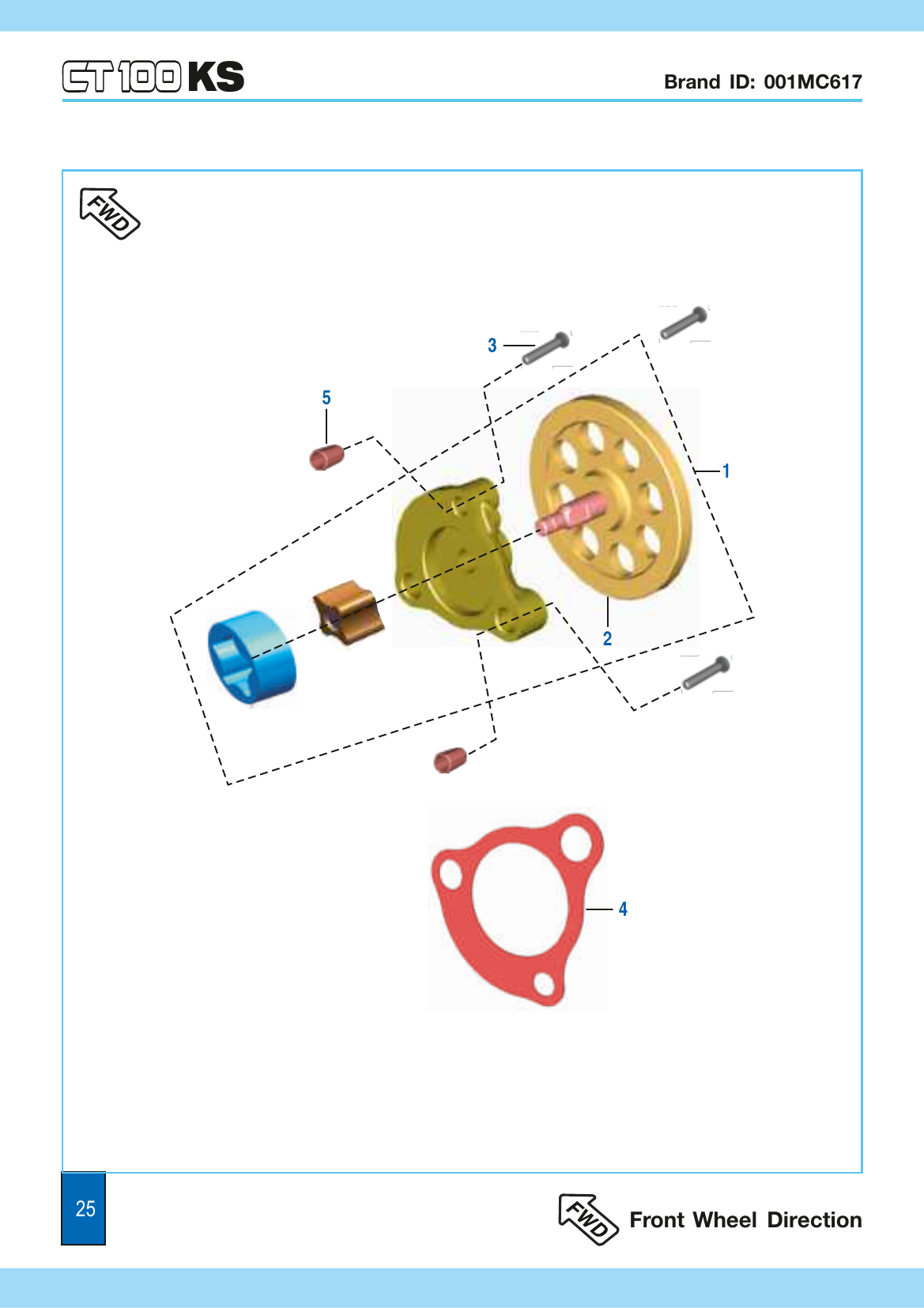

Oil Pump
5 parts
Plate 14

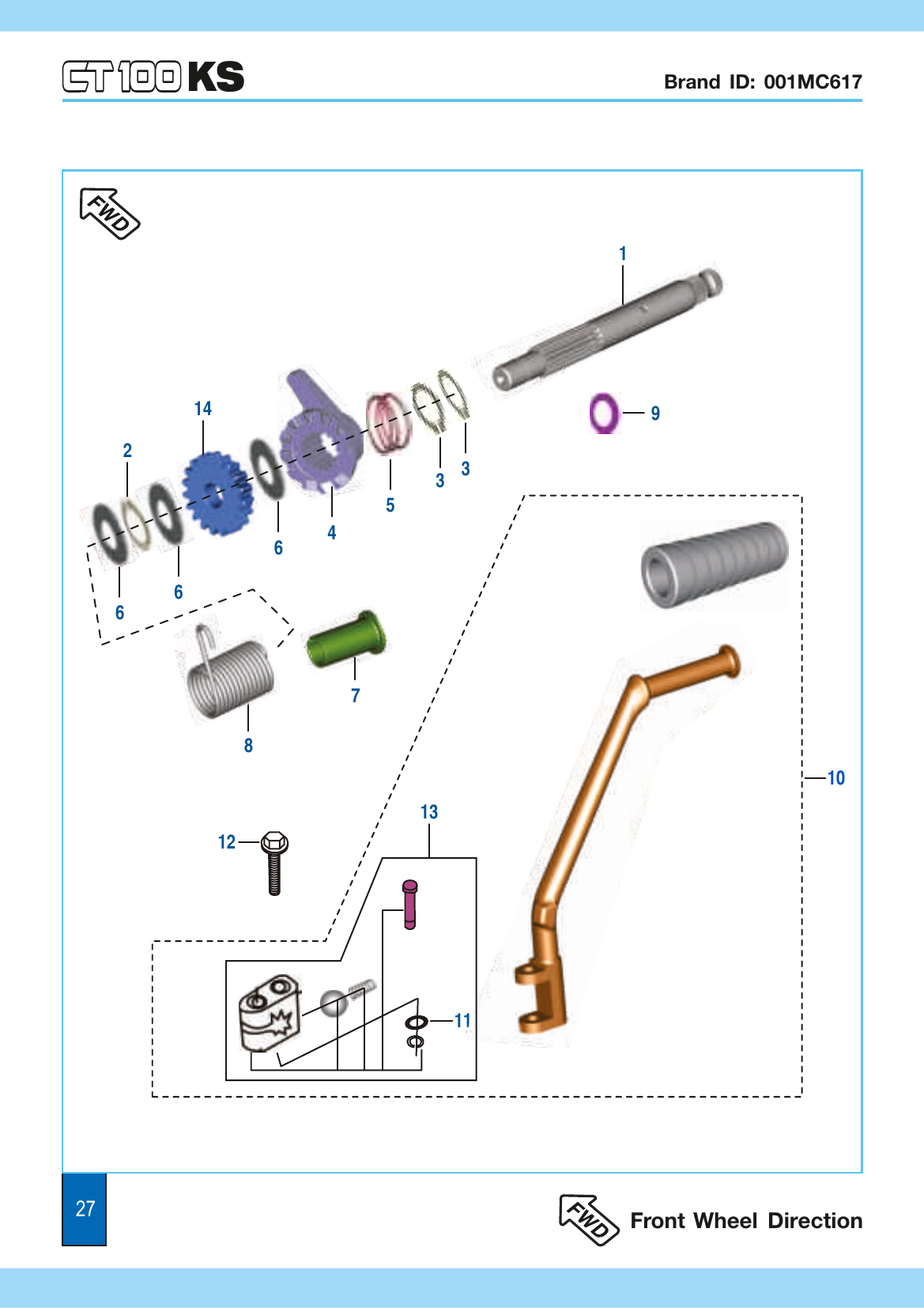

Kick Starter Mechanism
14 parts
Plate 15

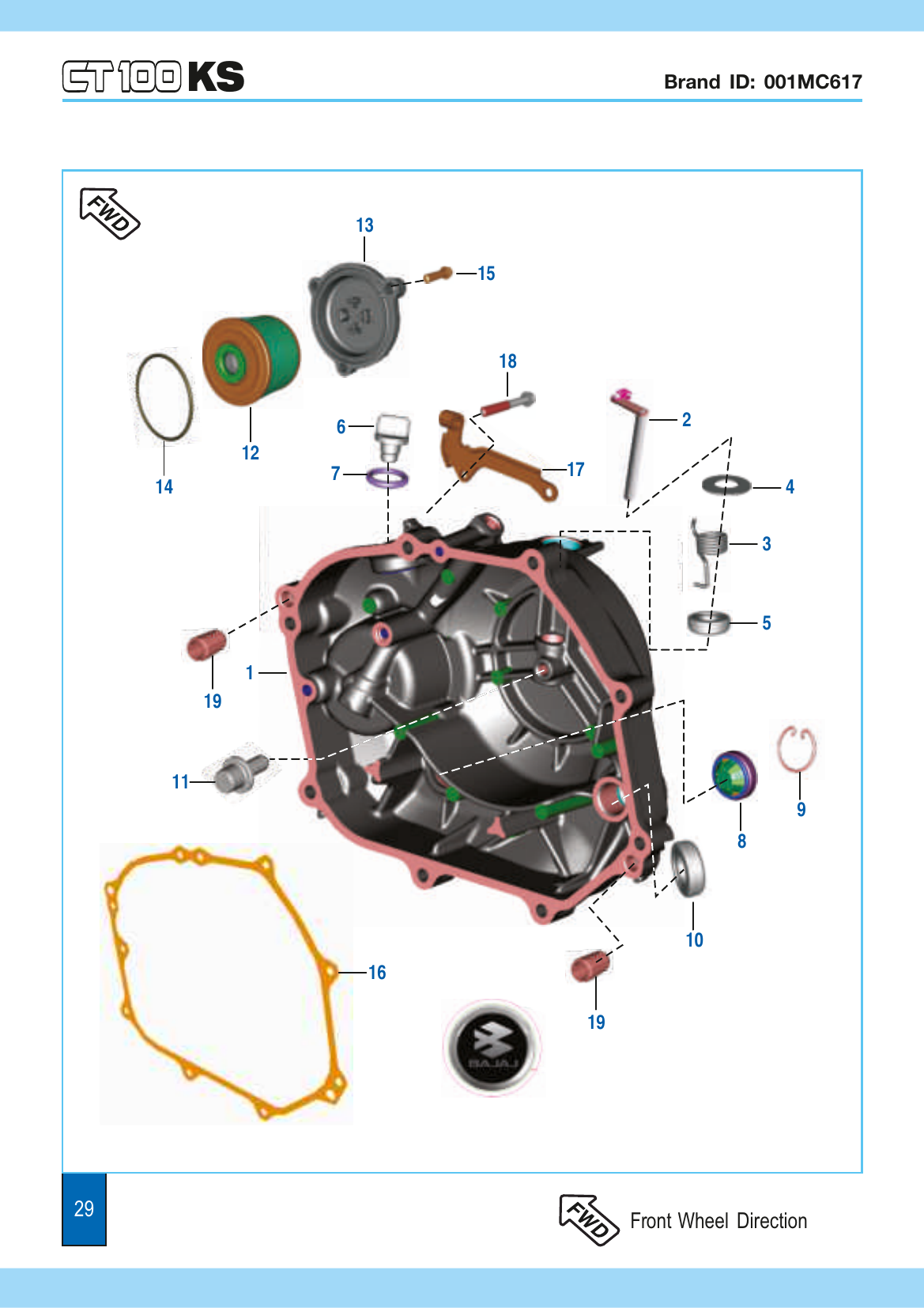

Cover Clutch
20 parts
Plate 16

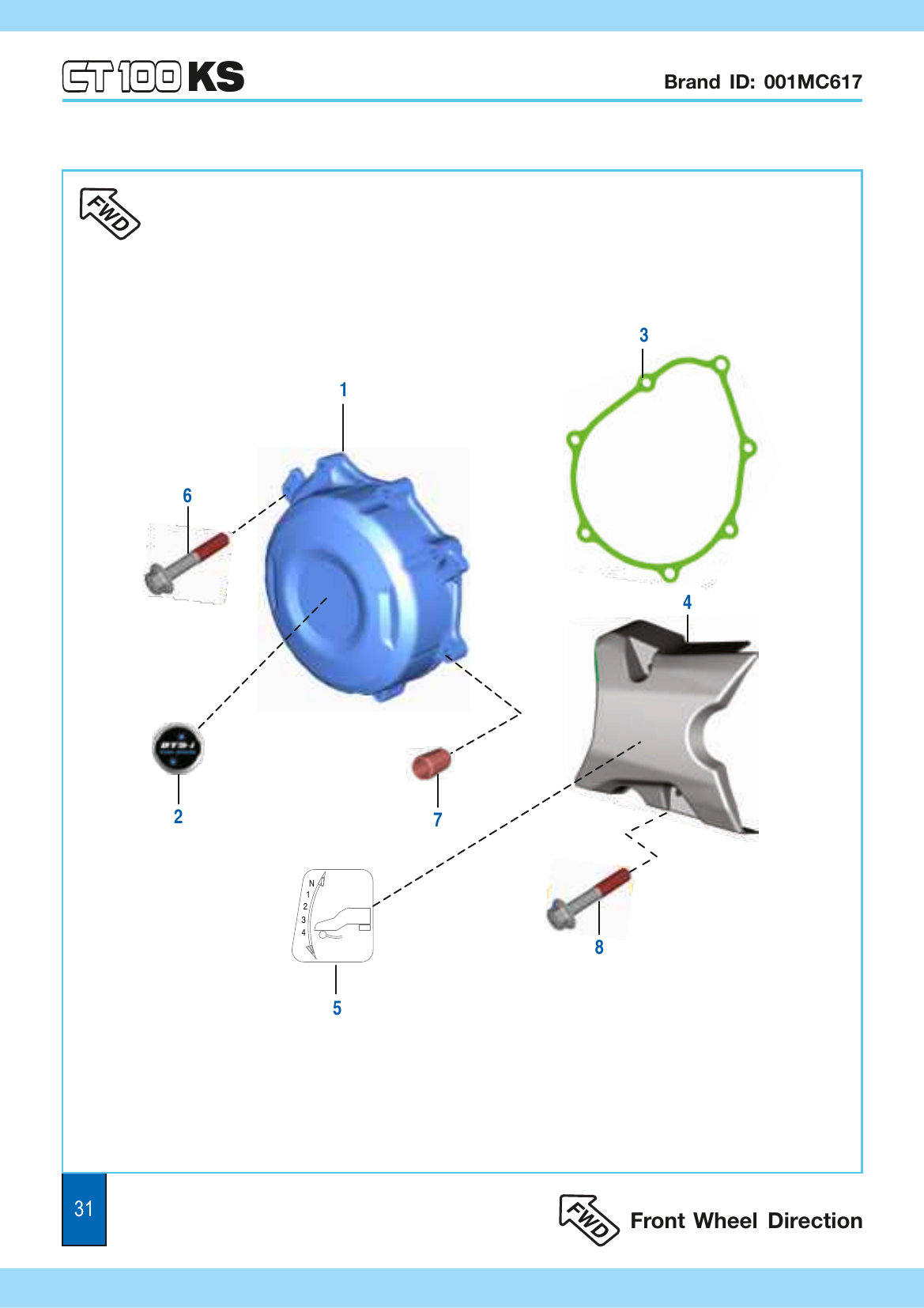

Cover Magneto
8 parts
Plate 17

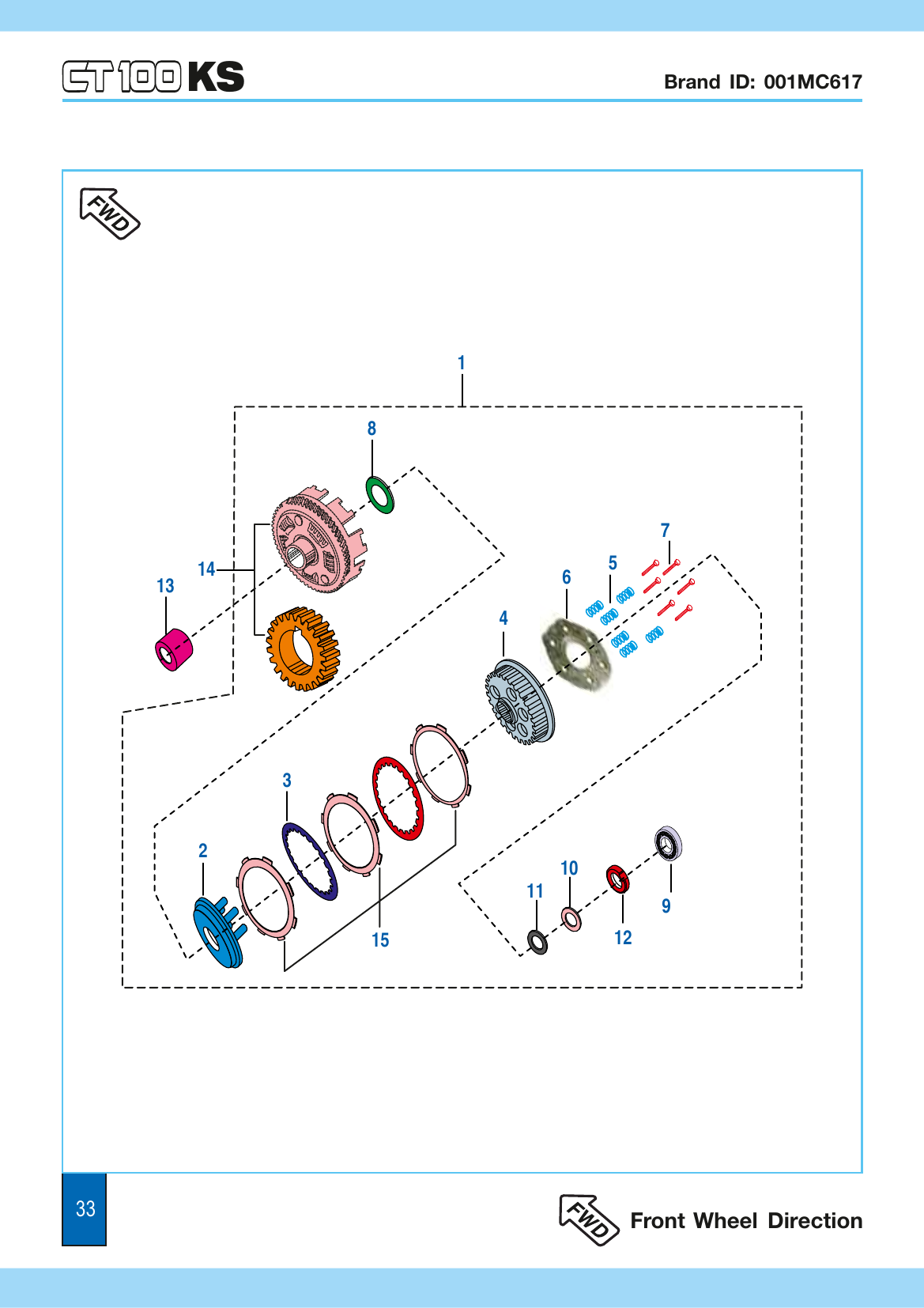

Clutch Assembly
15 parts
Plate 18

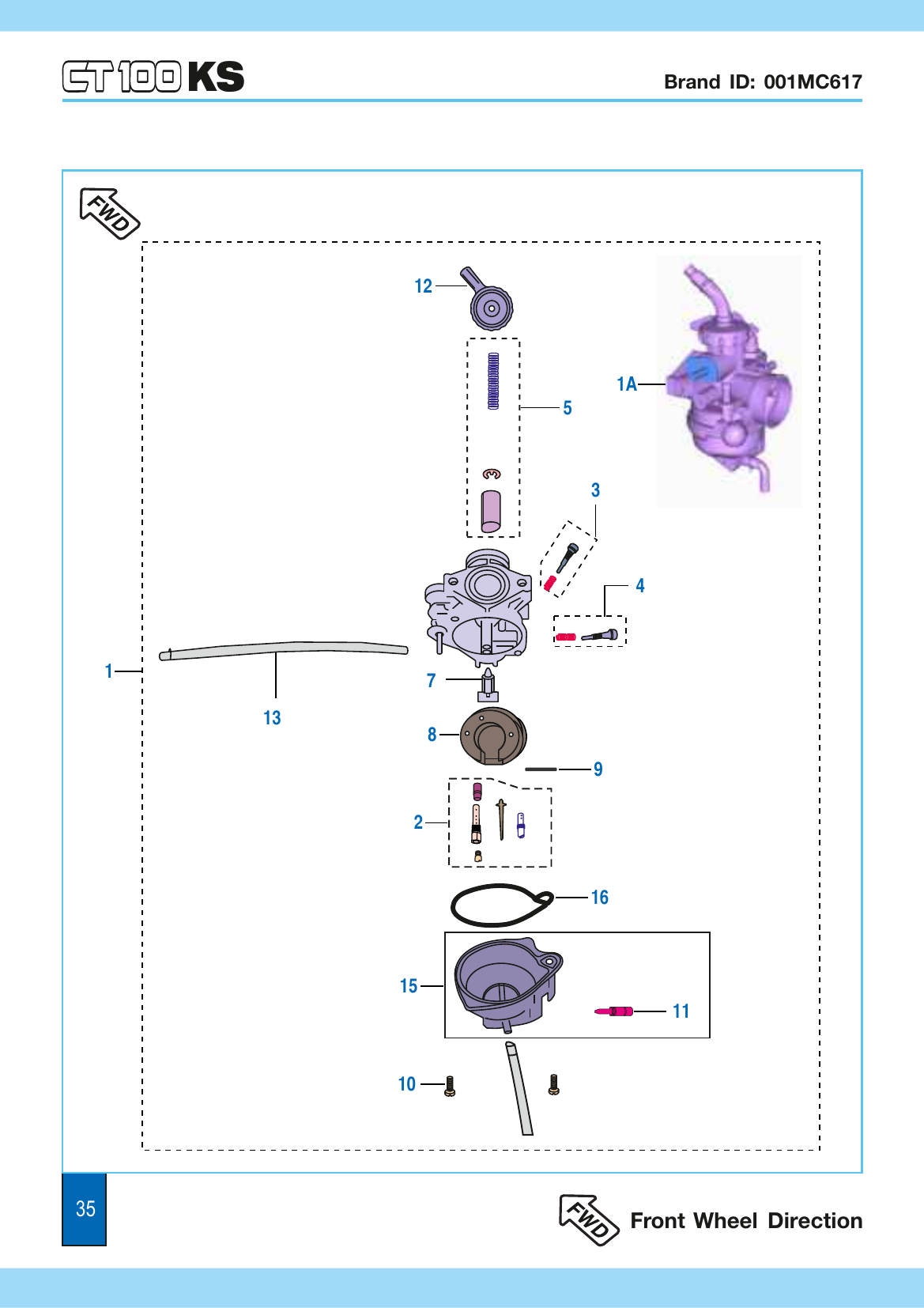

Carburetor Assembly - KEIHIN make
15 parts
Plate 19

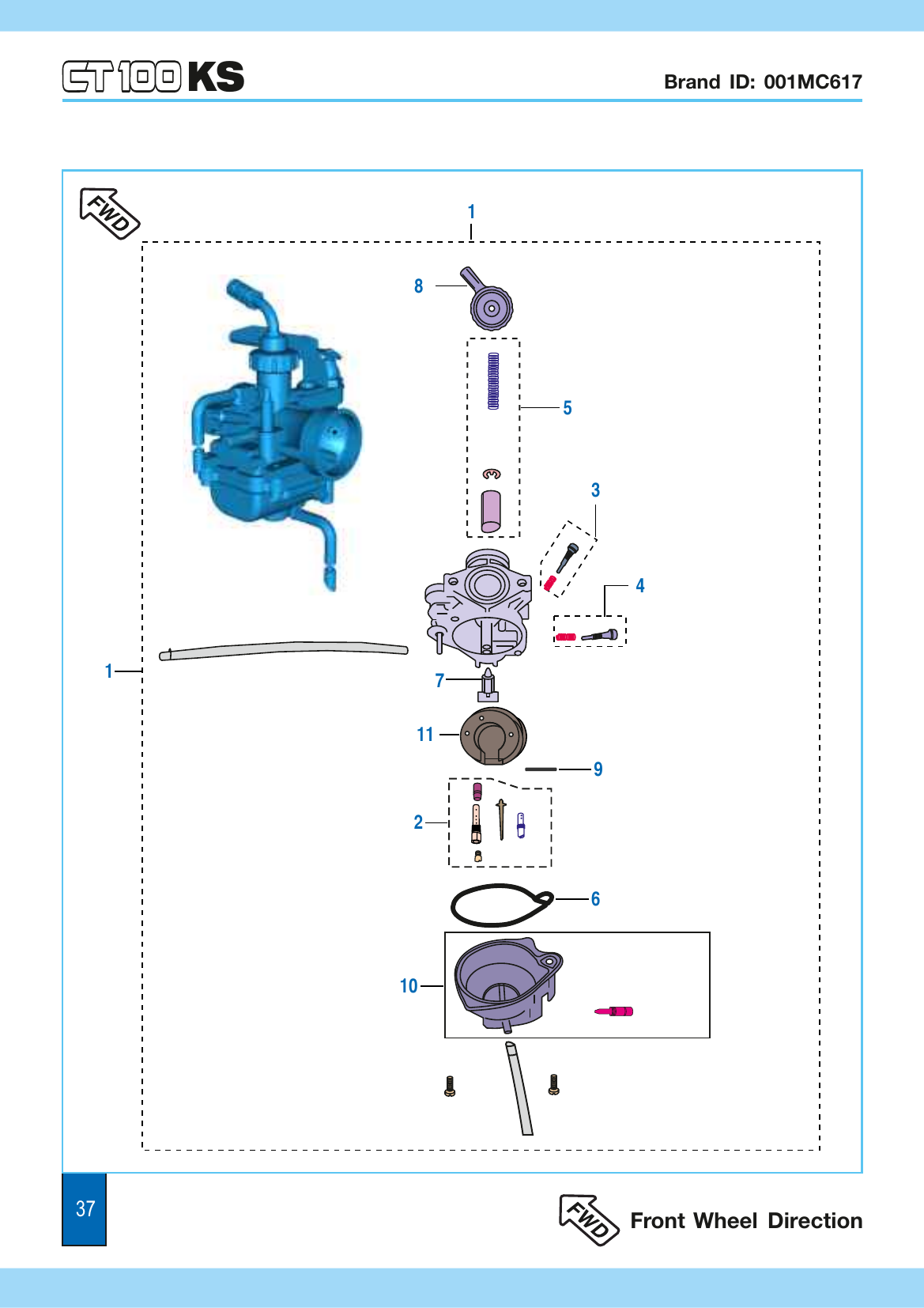

Carburetor Assembly - UCAL make
11 parts
Plate 20

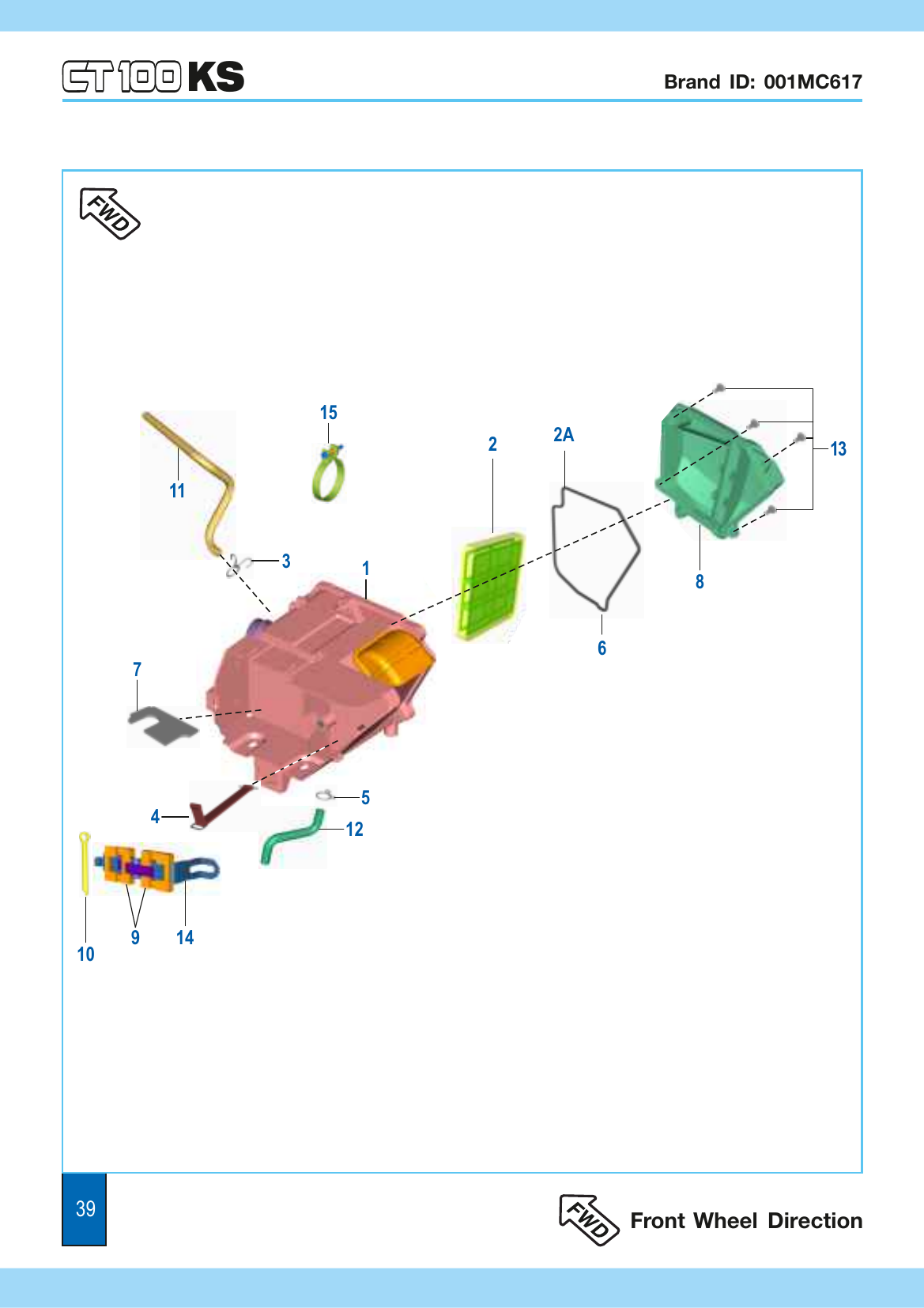

Air Cleaner Complete
16 parts
Plate 21

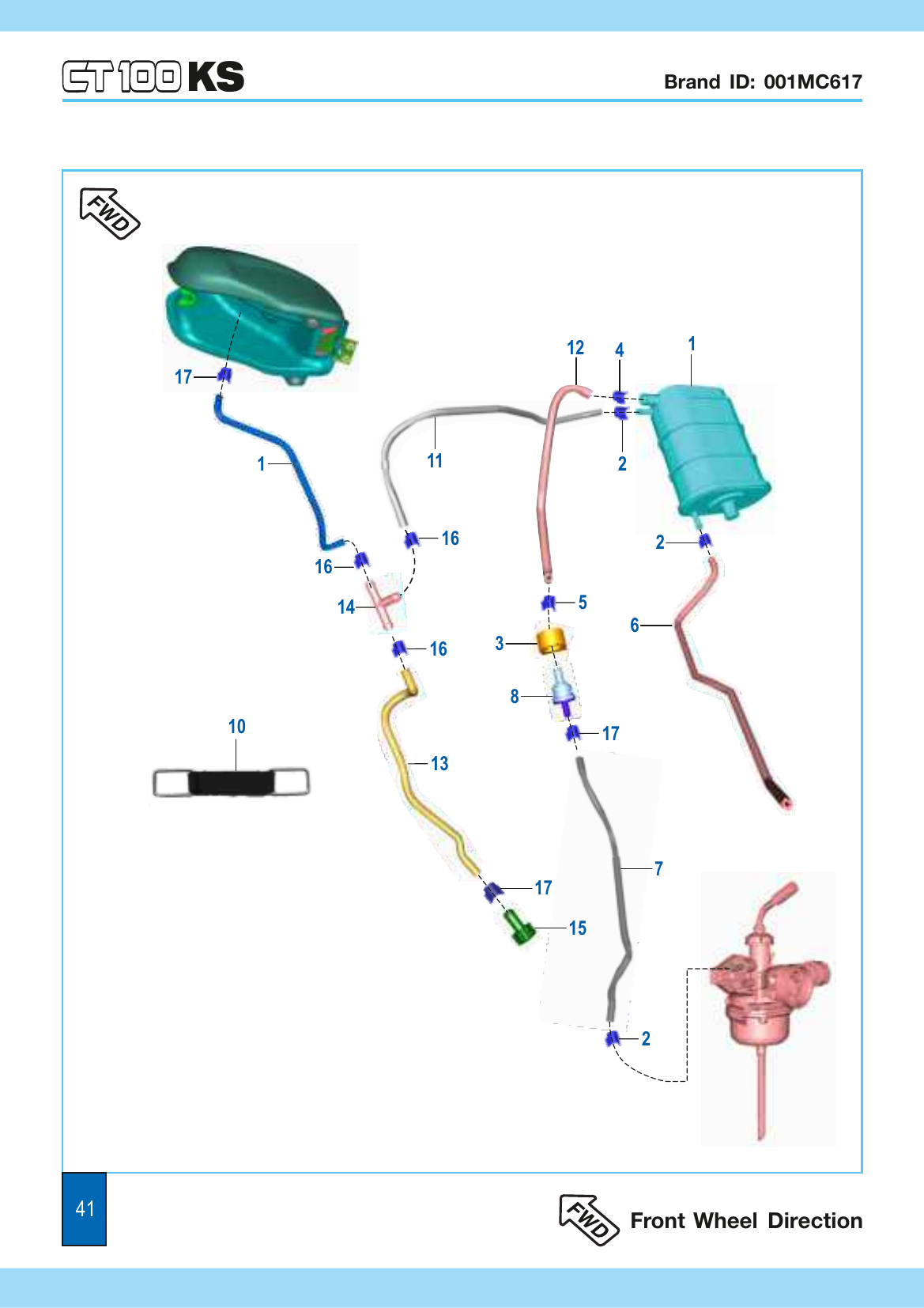

EVAP Mechanism
17 parts

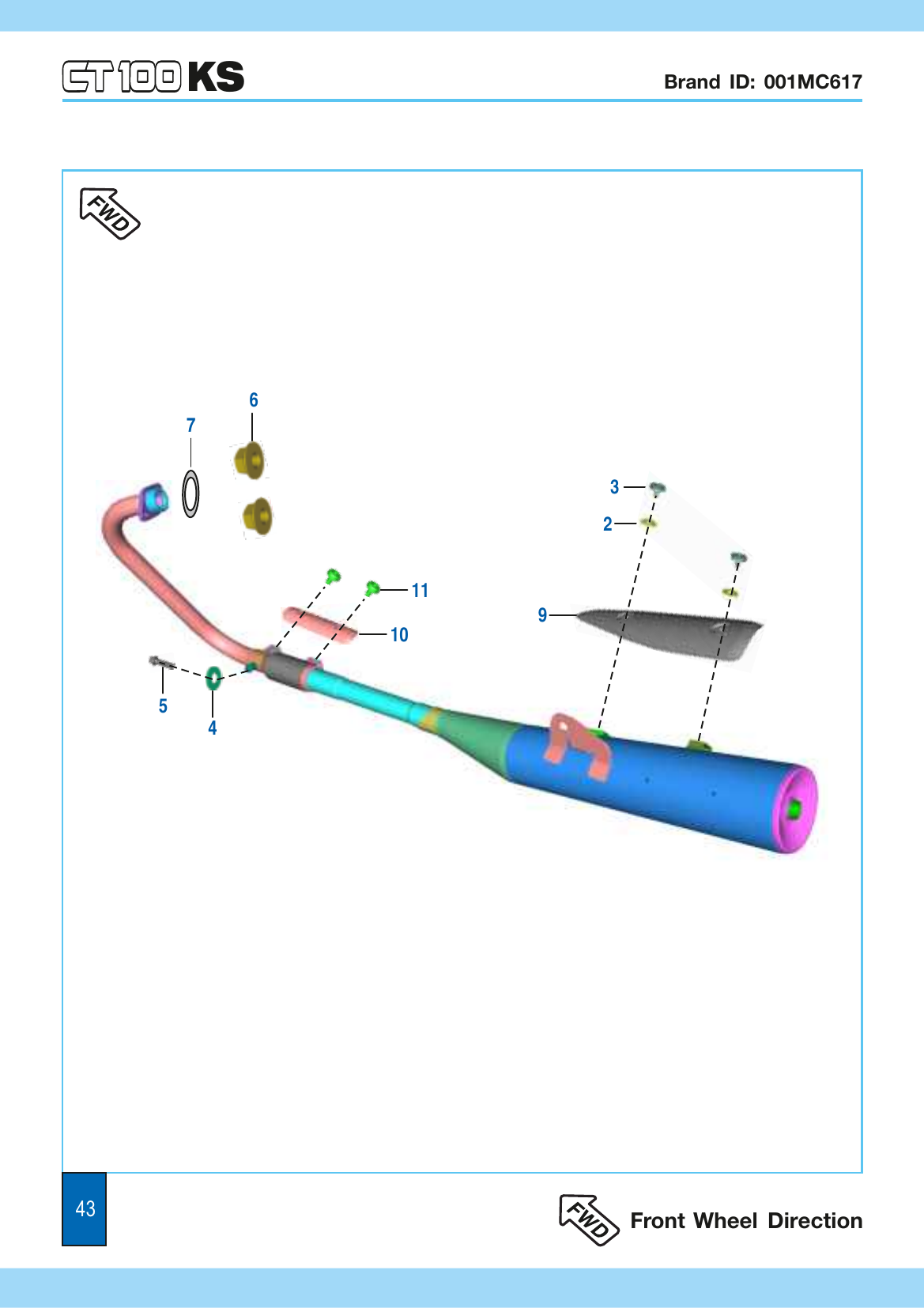

Plate 22
Silencer Assembly
11 parts
Plate 23

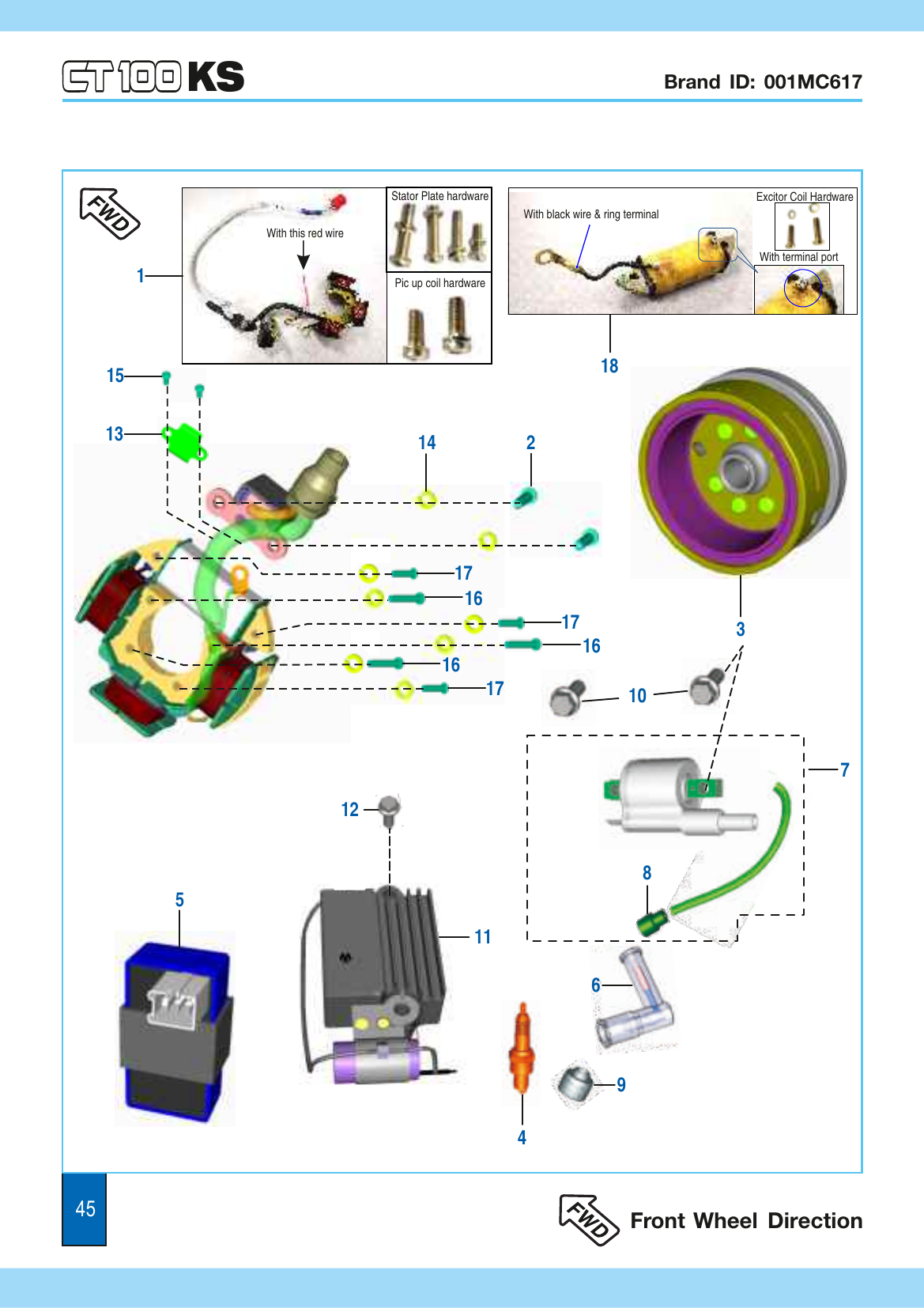

Magneto, CDI & H.T. Coil
19 parts
Plate 24

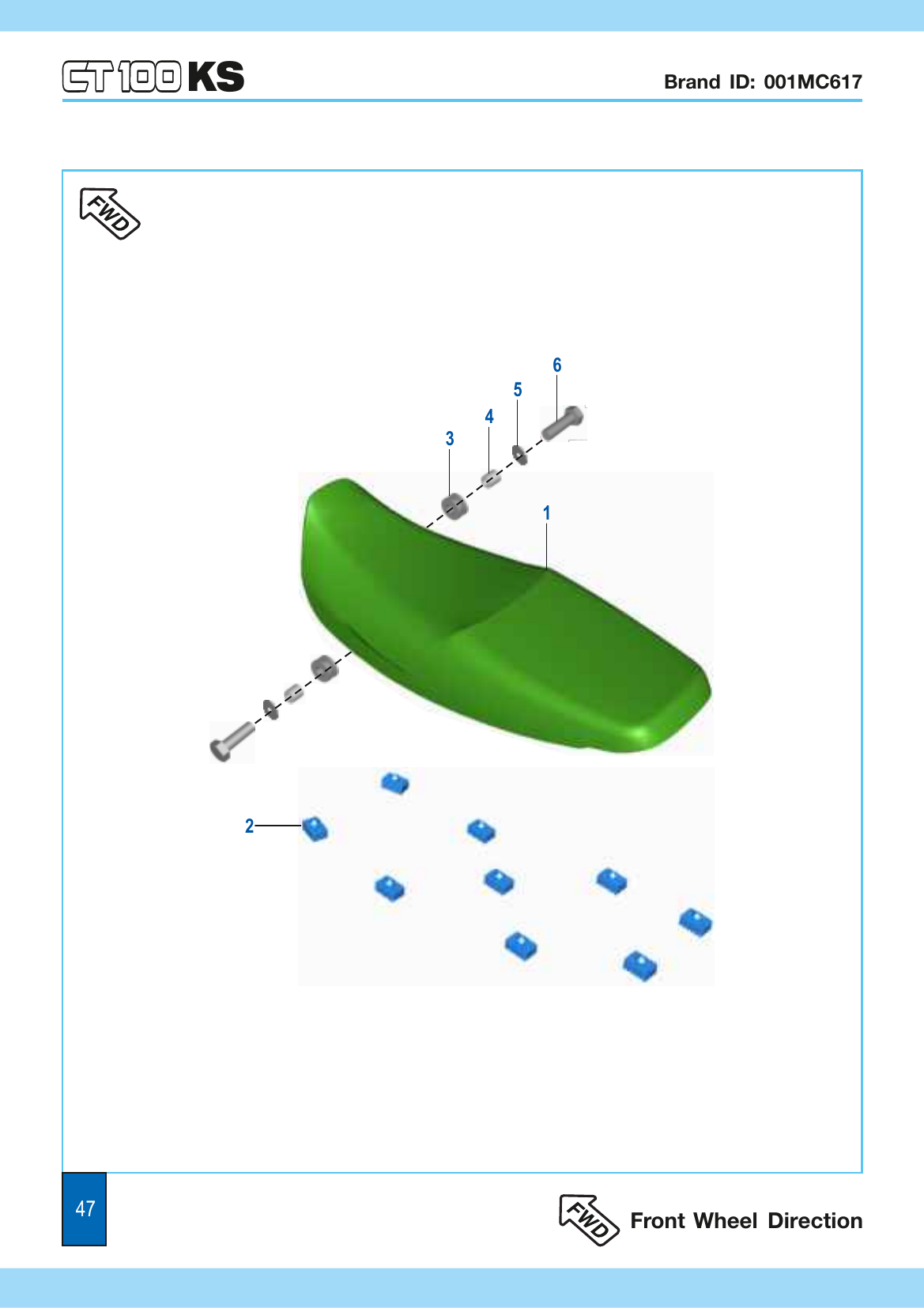

Seat Assembly & Mounting
6 parts
Plate 25

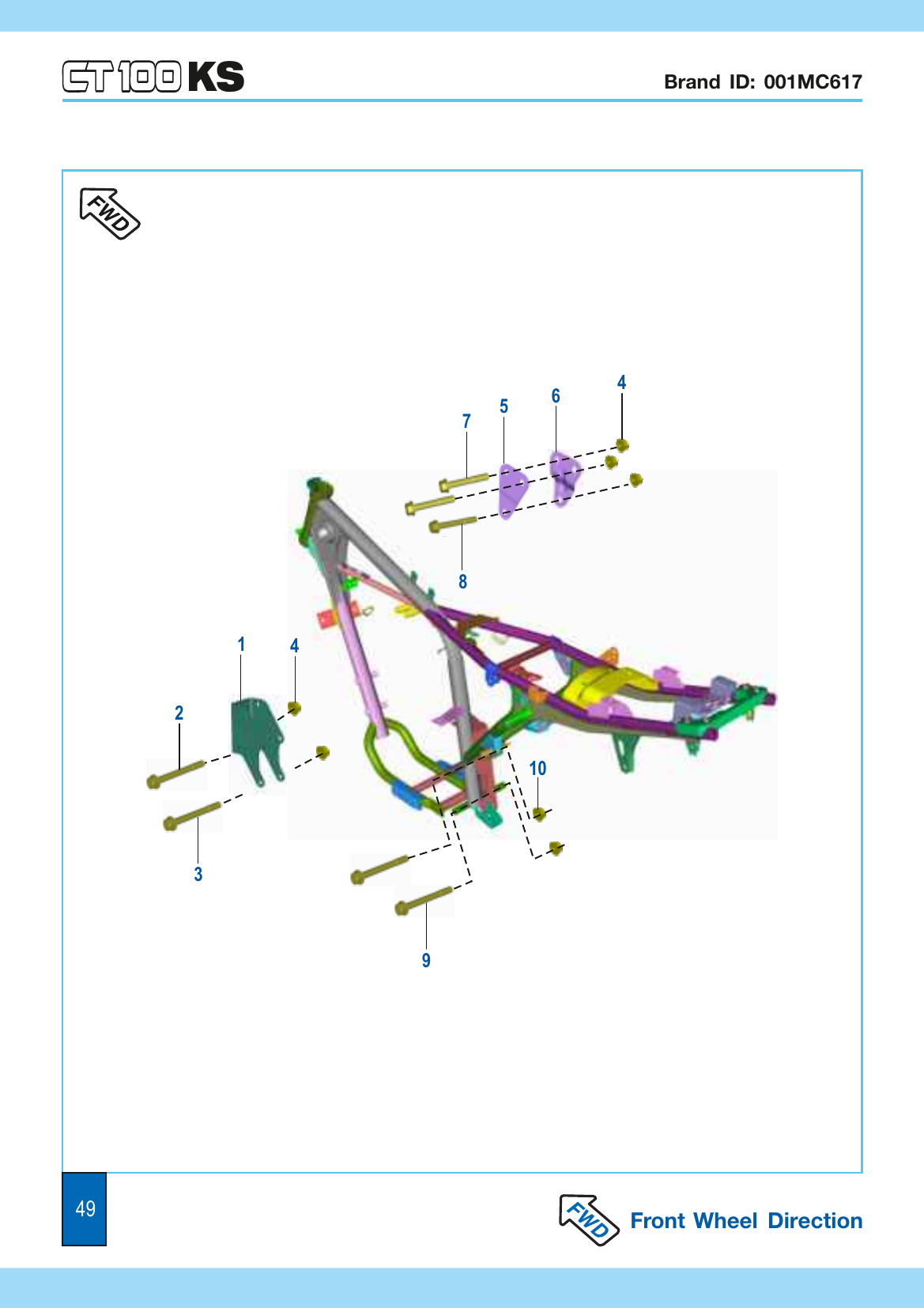

Engine Mountings
10 parts
Plate 26

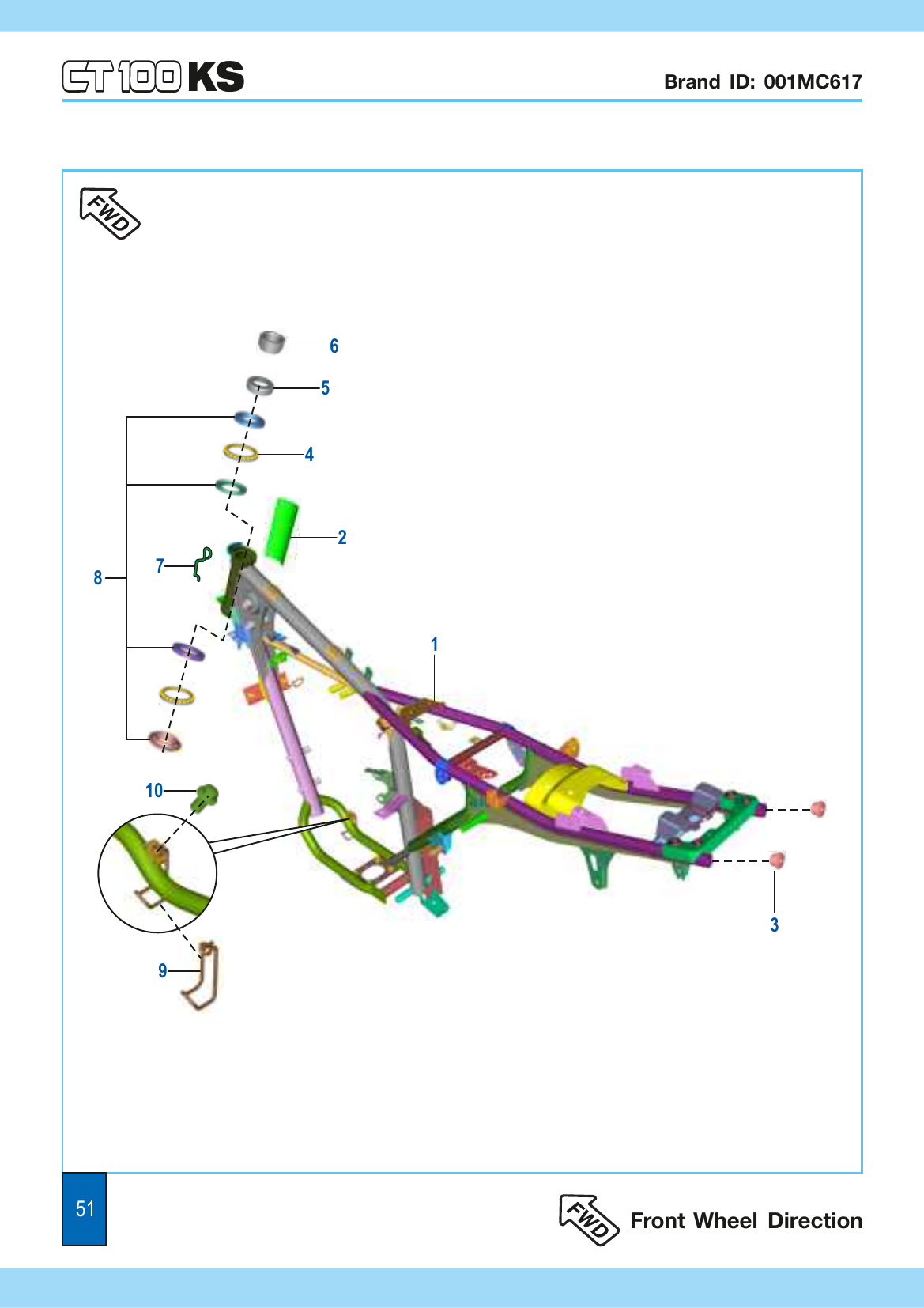

Frame & Frame Fittings
10 parts
Plate 27

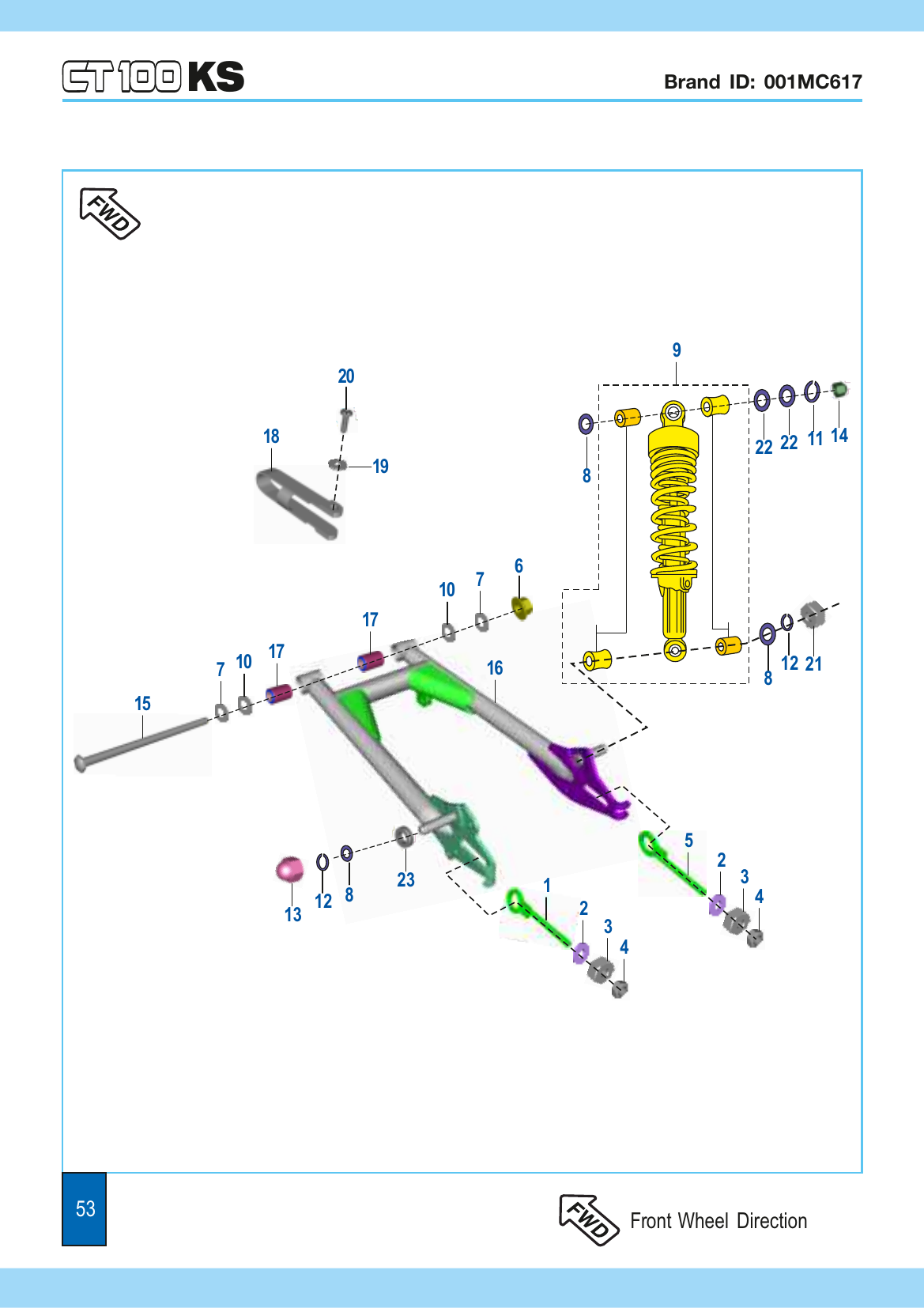

Swing Arm / Rear Shock Absorber
23 parts
Plate 28

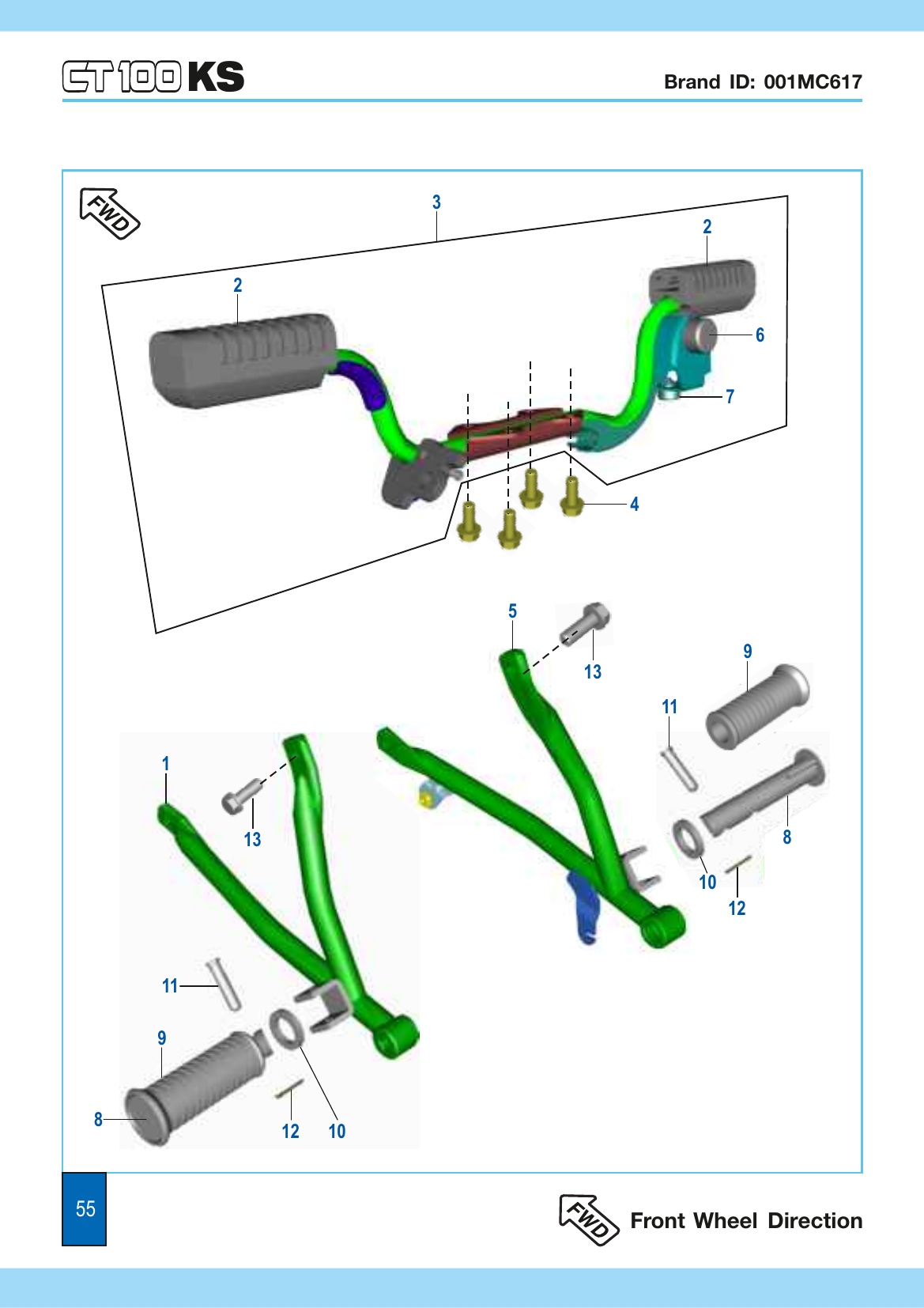

Foot Rest - Rider / Pillion
13 parts
Plate 29

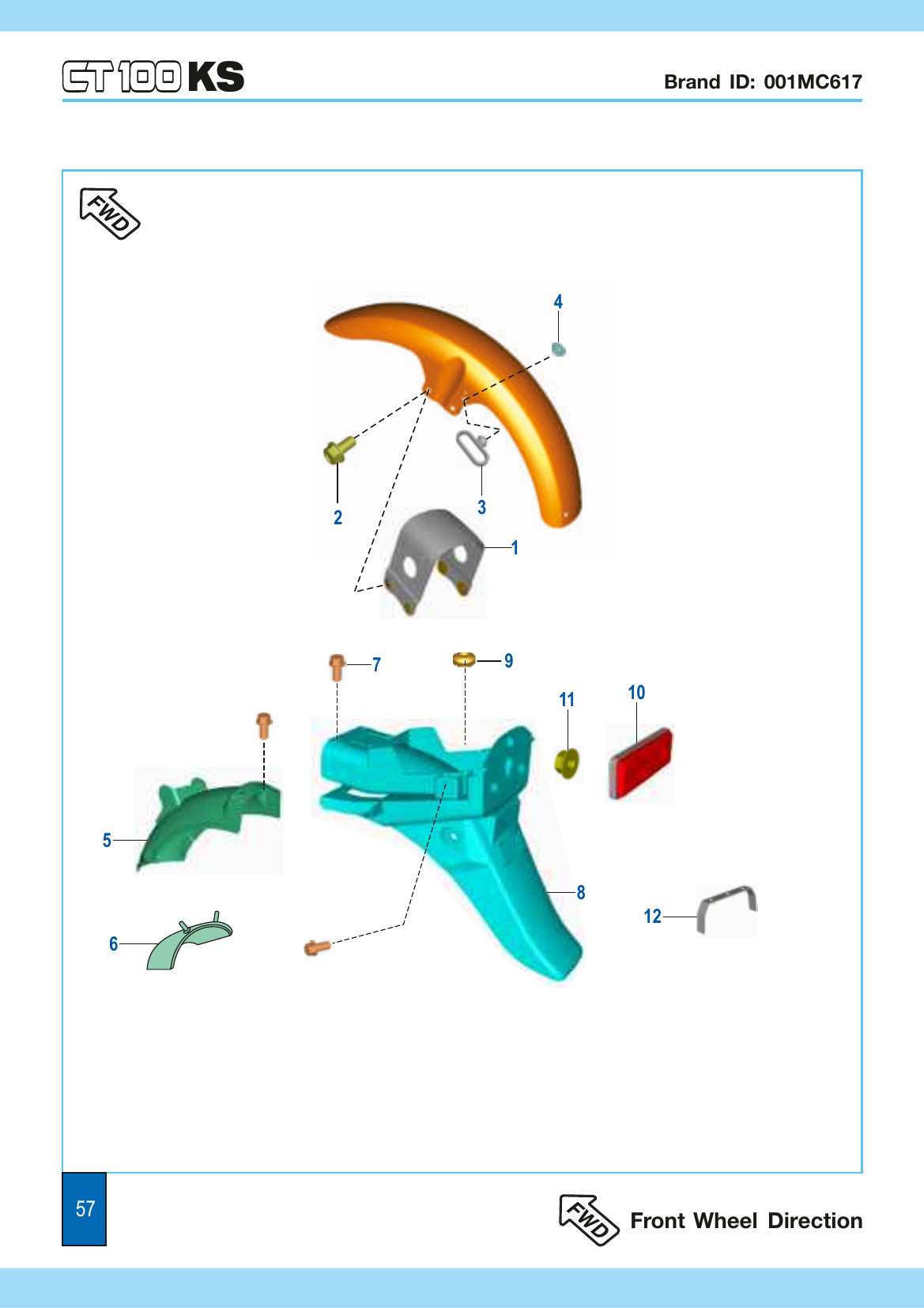

Mudguard - Front & Rear
12 parts
Plate 30

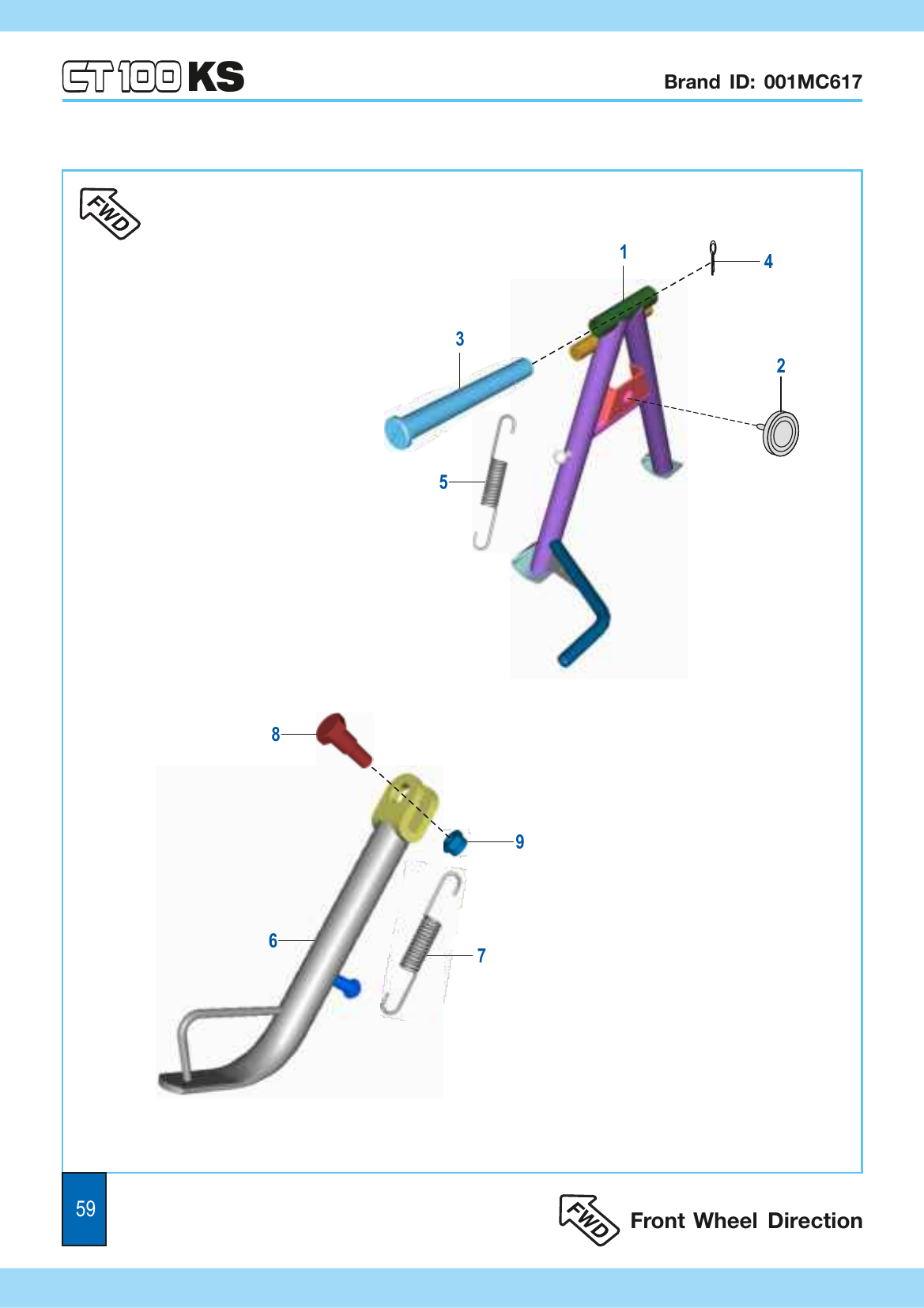

Stand Assembly
9 parts
Plate 31

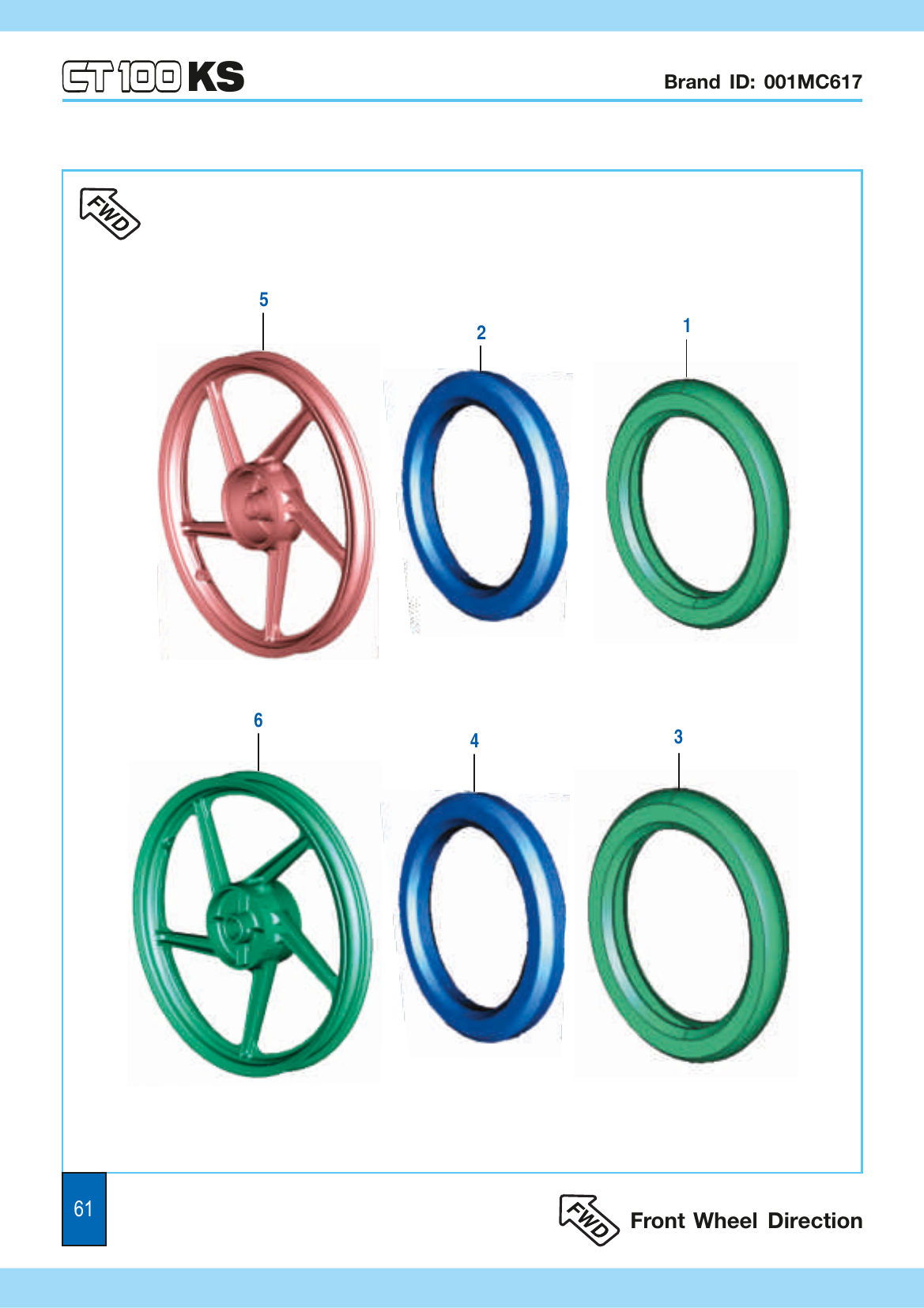

Tube / Tyre / Rim (Alloy Wheels)
6 parts
Plate 32

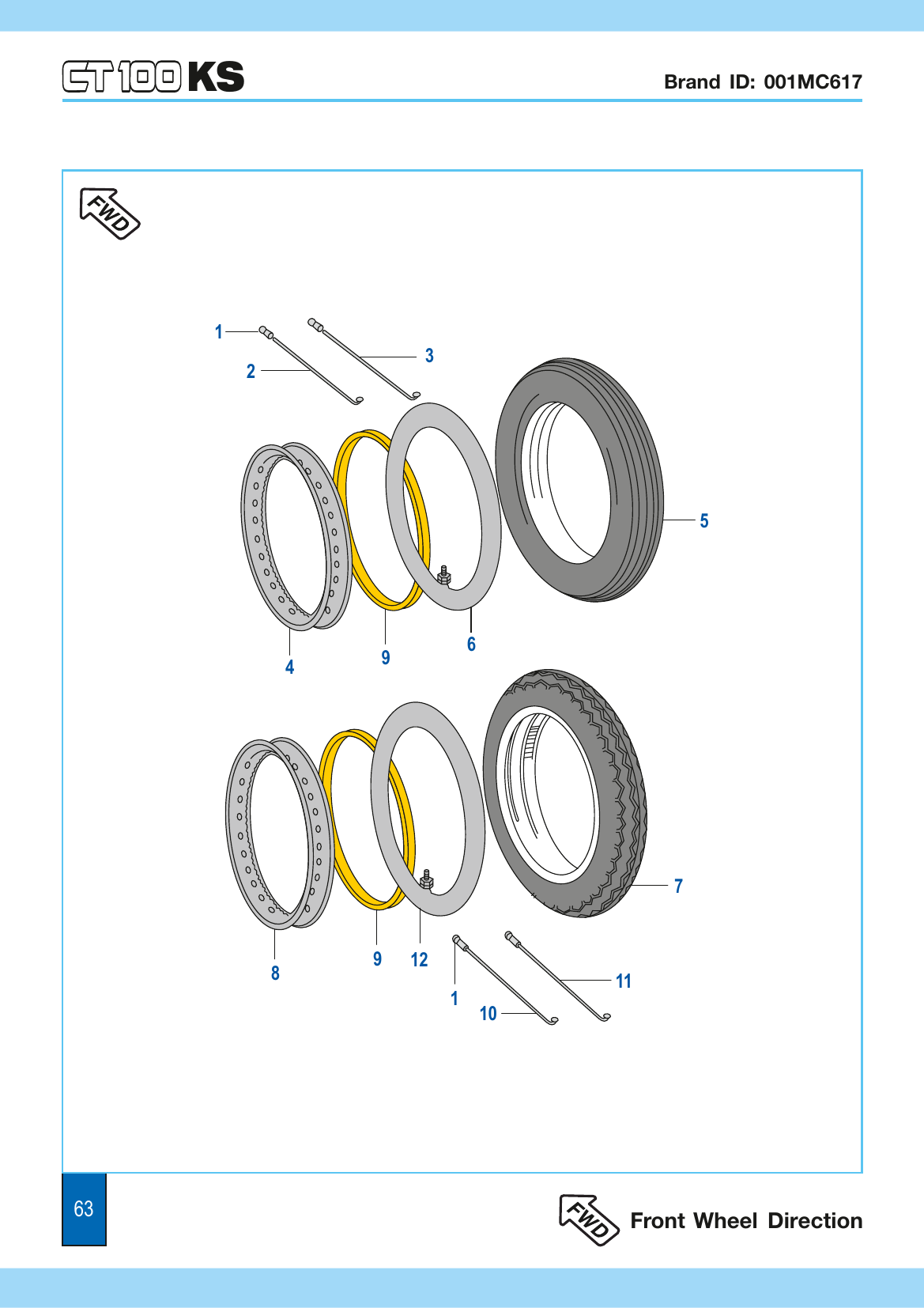

Tube / Tyre / Rim (Spoke Wheel)
12 parts
Plate 33

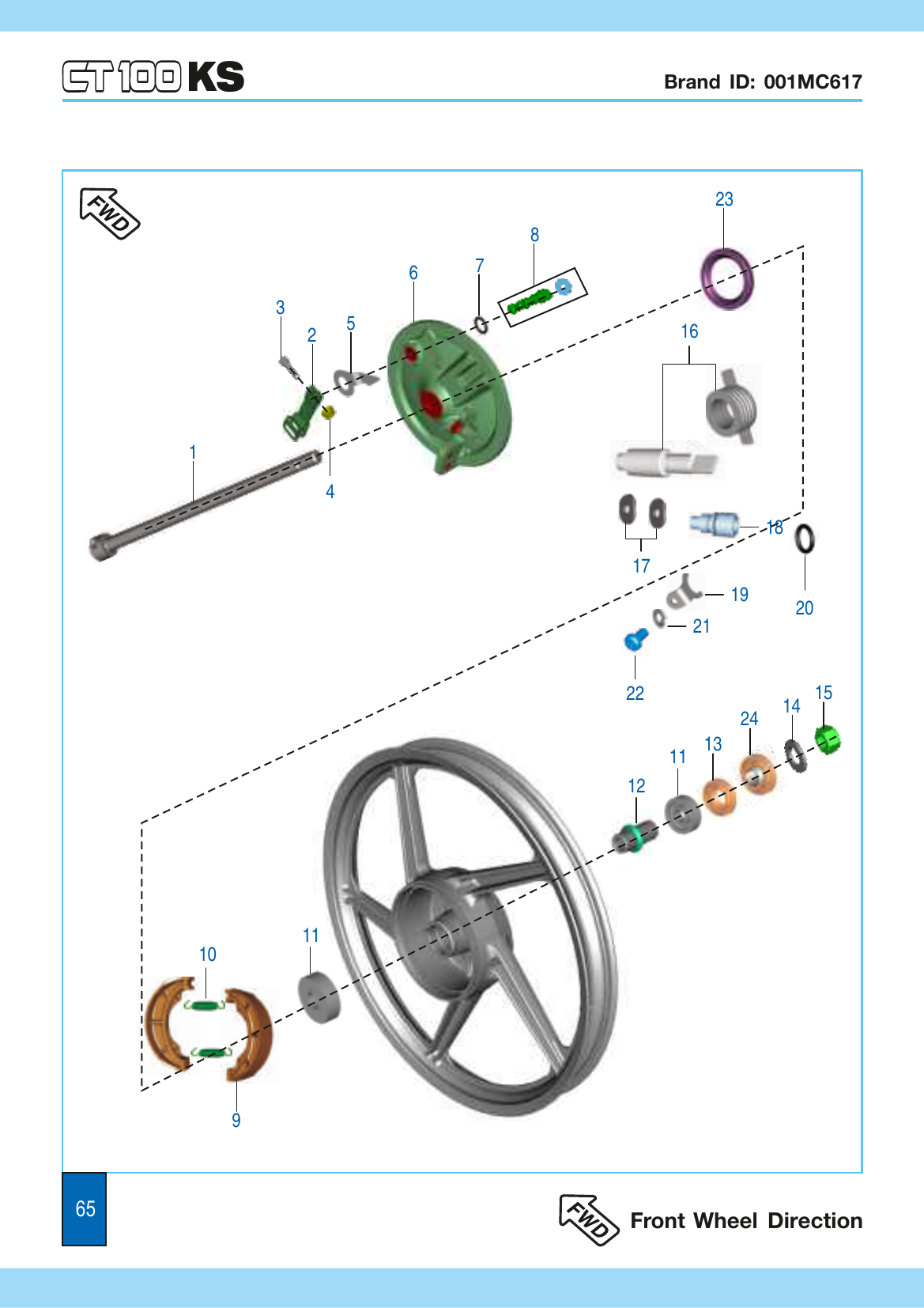

Front Hub (Alloy Wheel)
24 parts
Plate 34

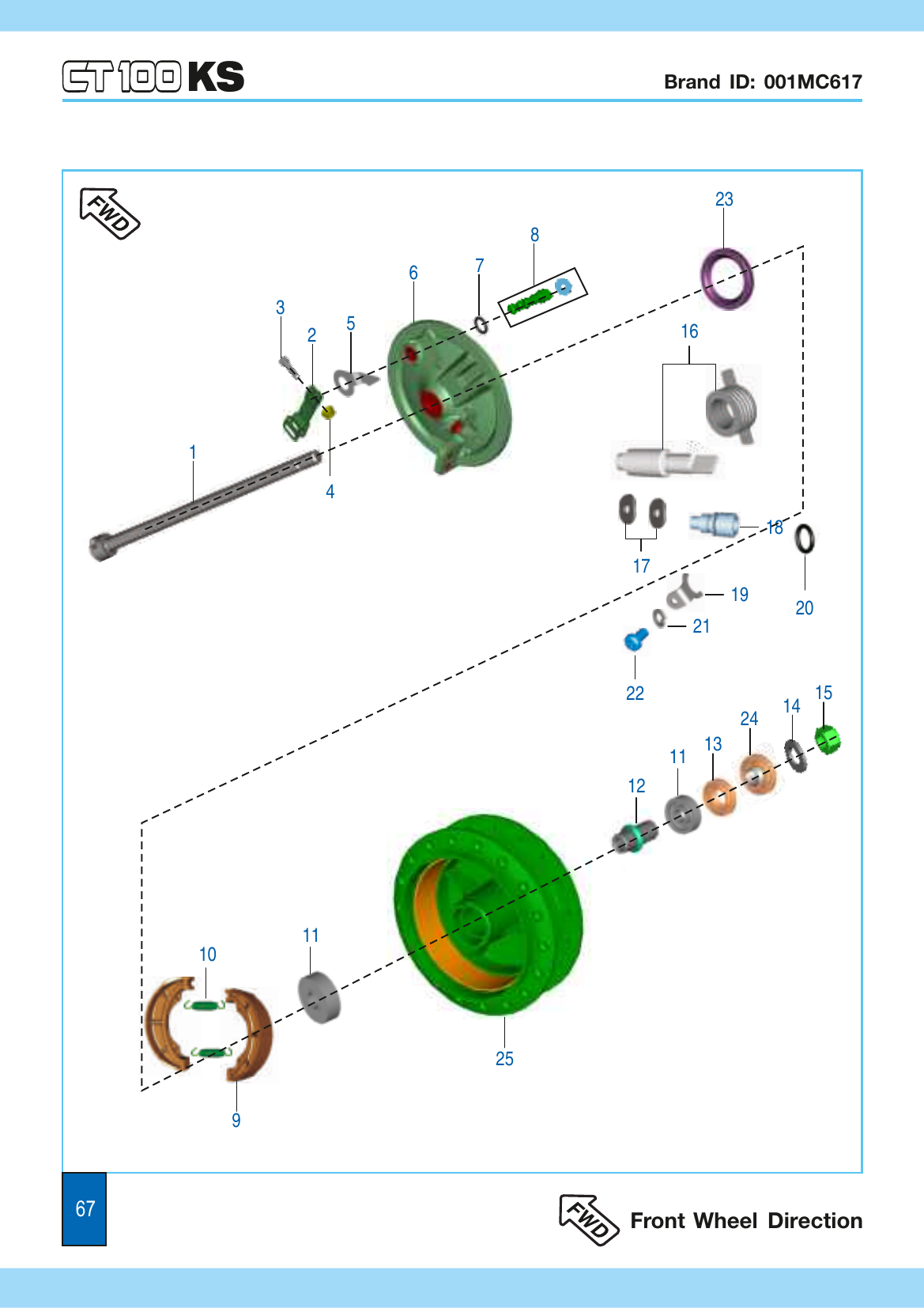

Front Hub (Spoke Wheel)
25 parts
Plate 35

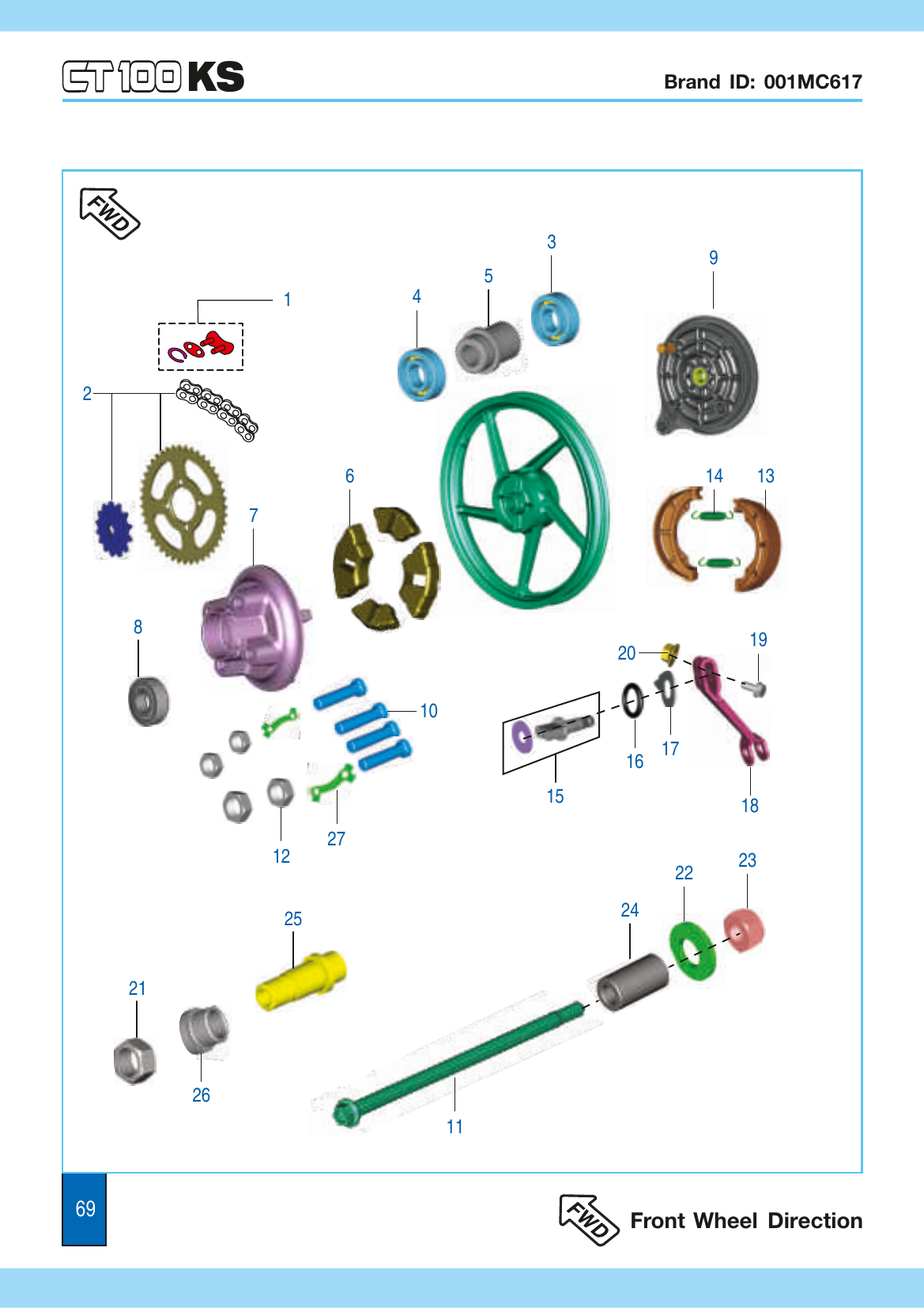

Rear Hub (Alloy Wheel)
27 parts
Plate 36

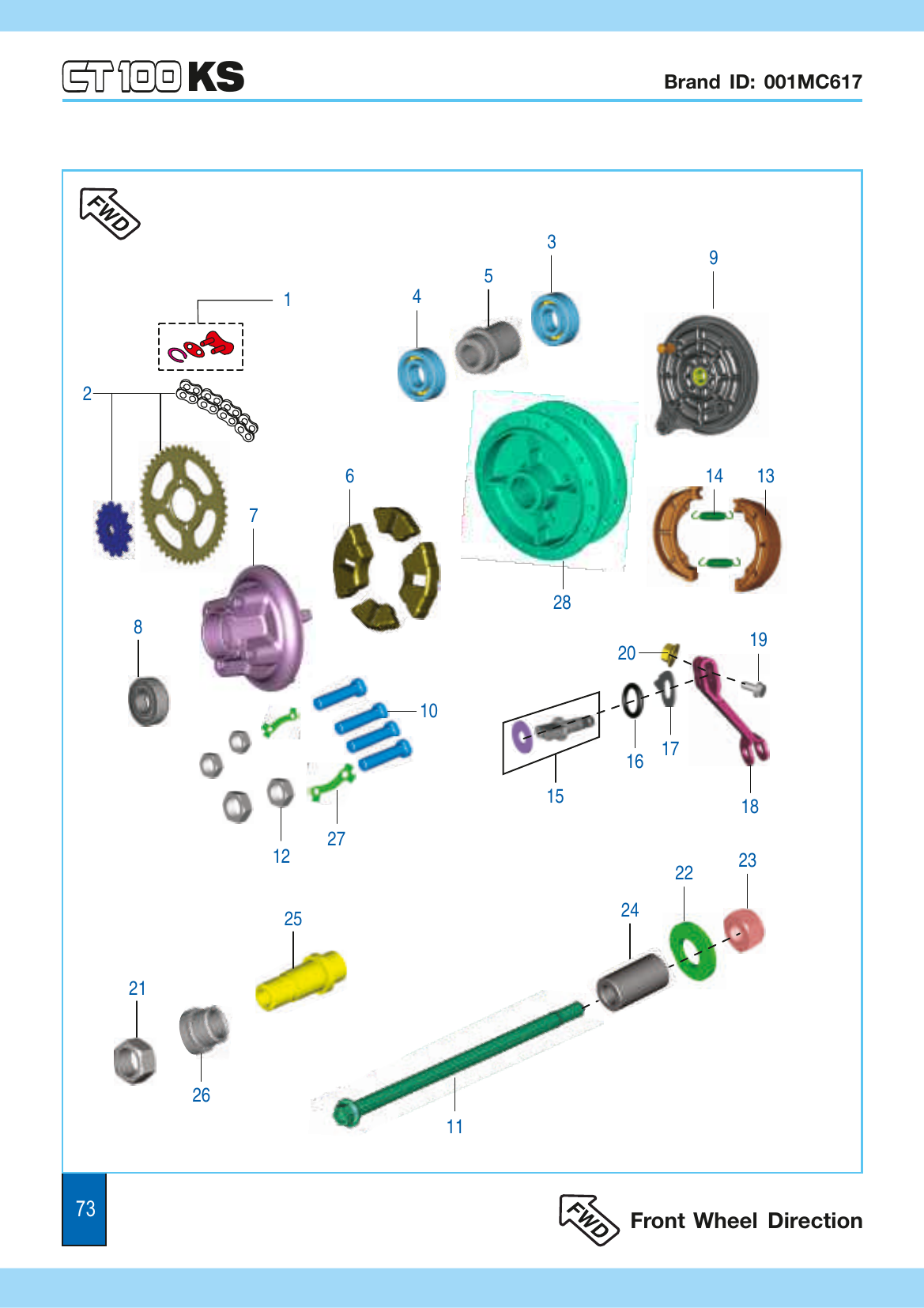

Rear Hub (Spoke Wheel)
28 parts
Plate 37

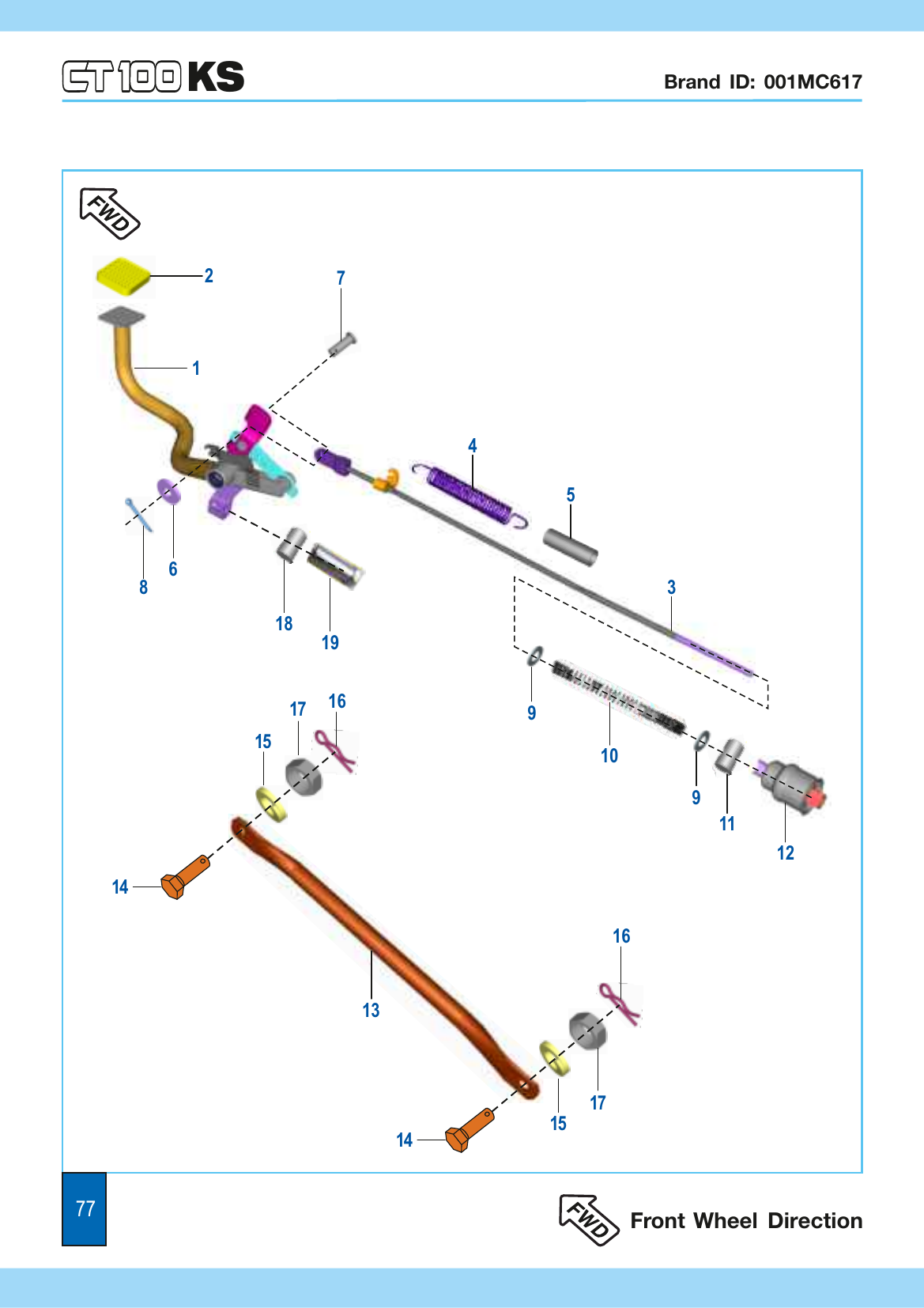

Rear Brake Pedal
19 parts
Plate 38

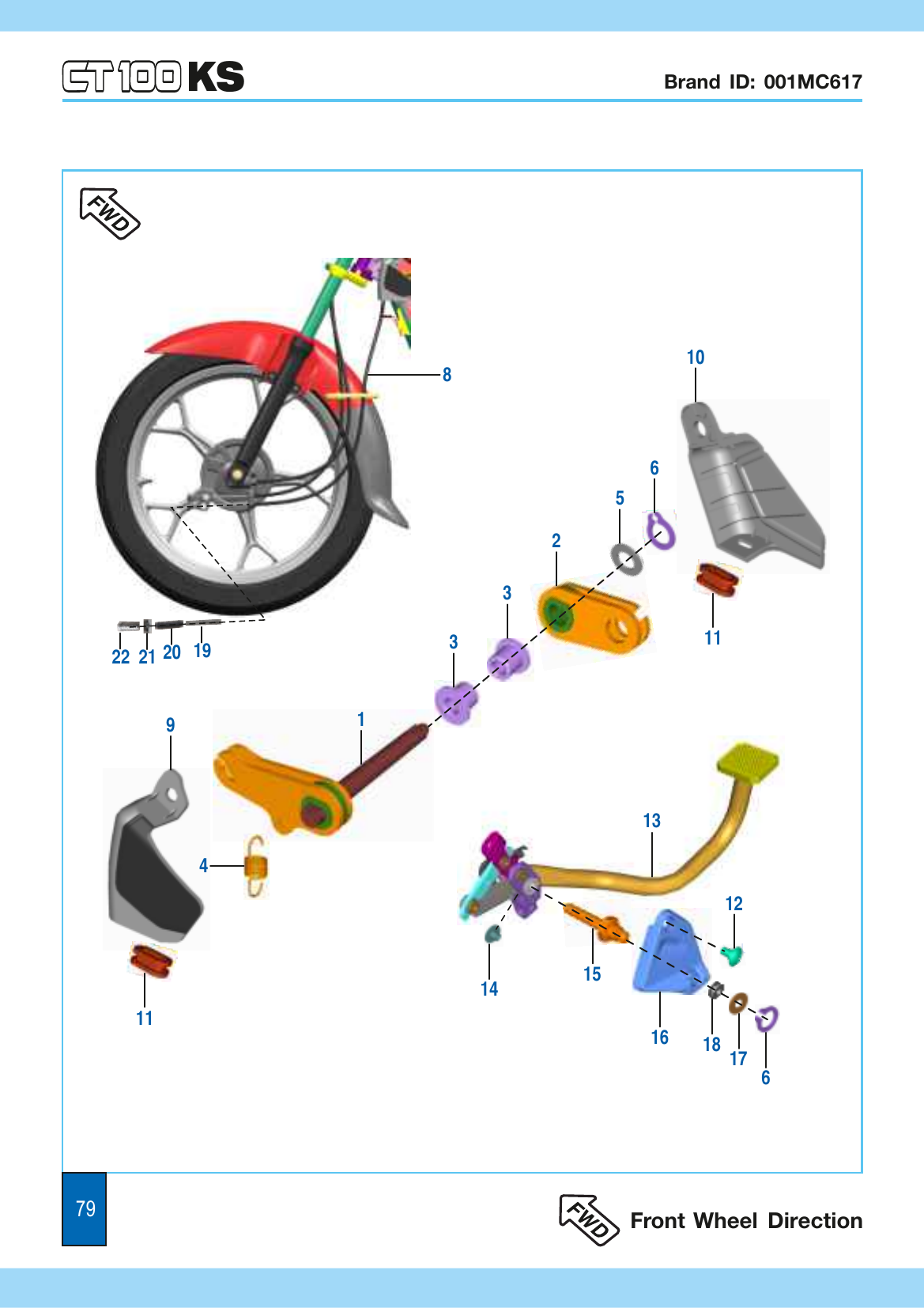

CBS - Combined Braking System
22 parts
Plate 39

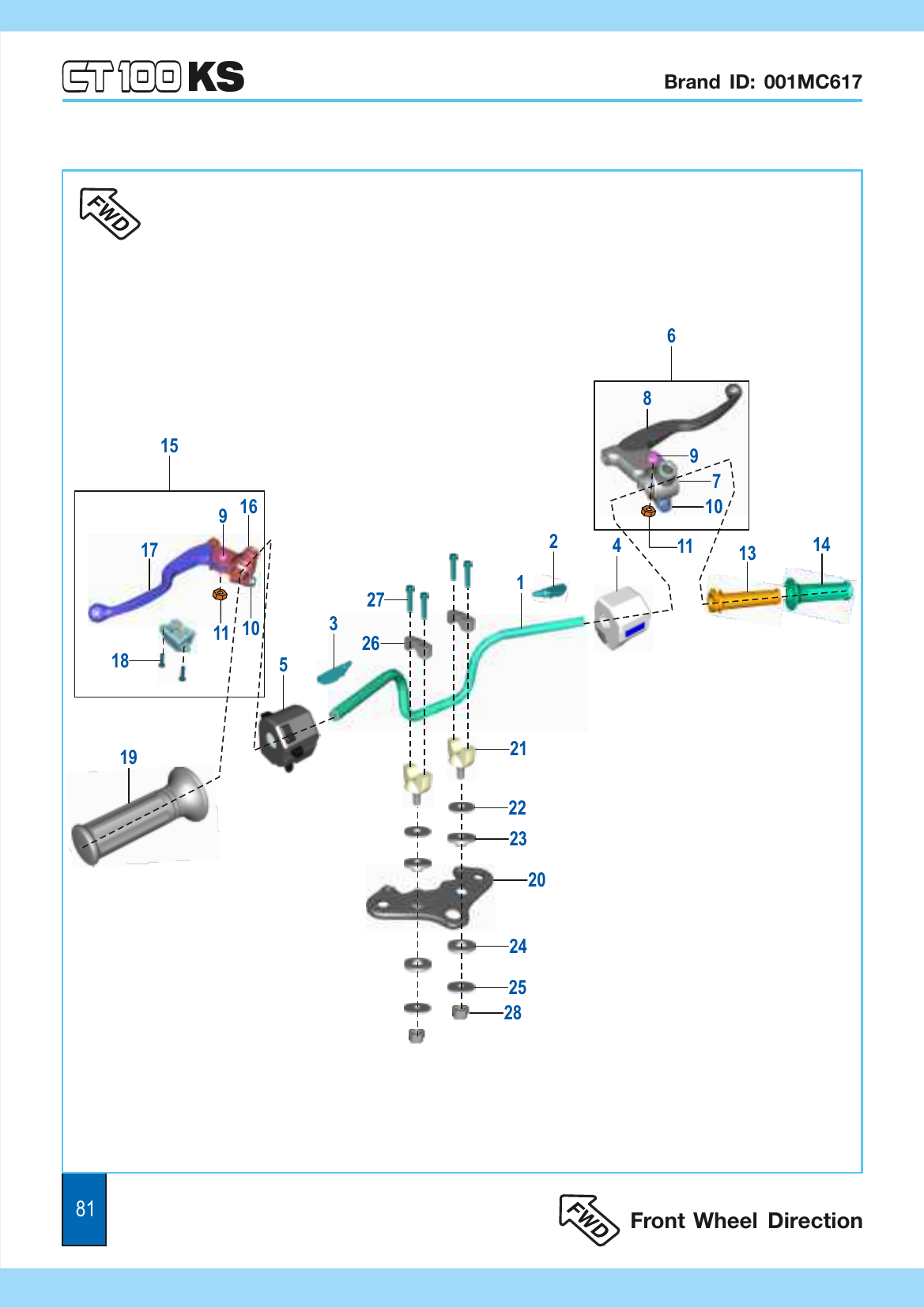

Handle Bar Assembly
28 parts
Plate 40

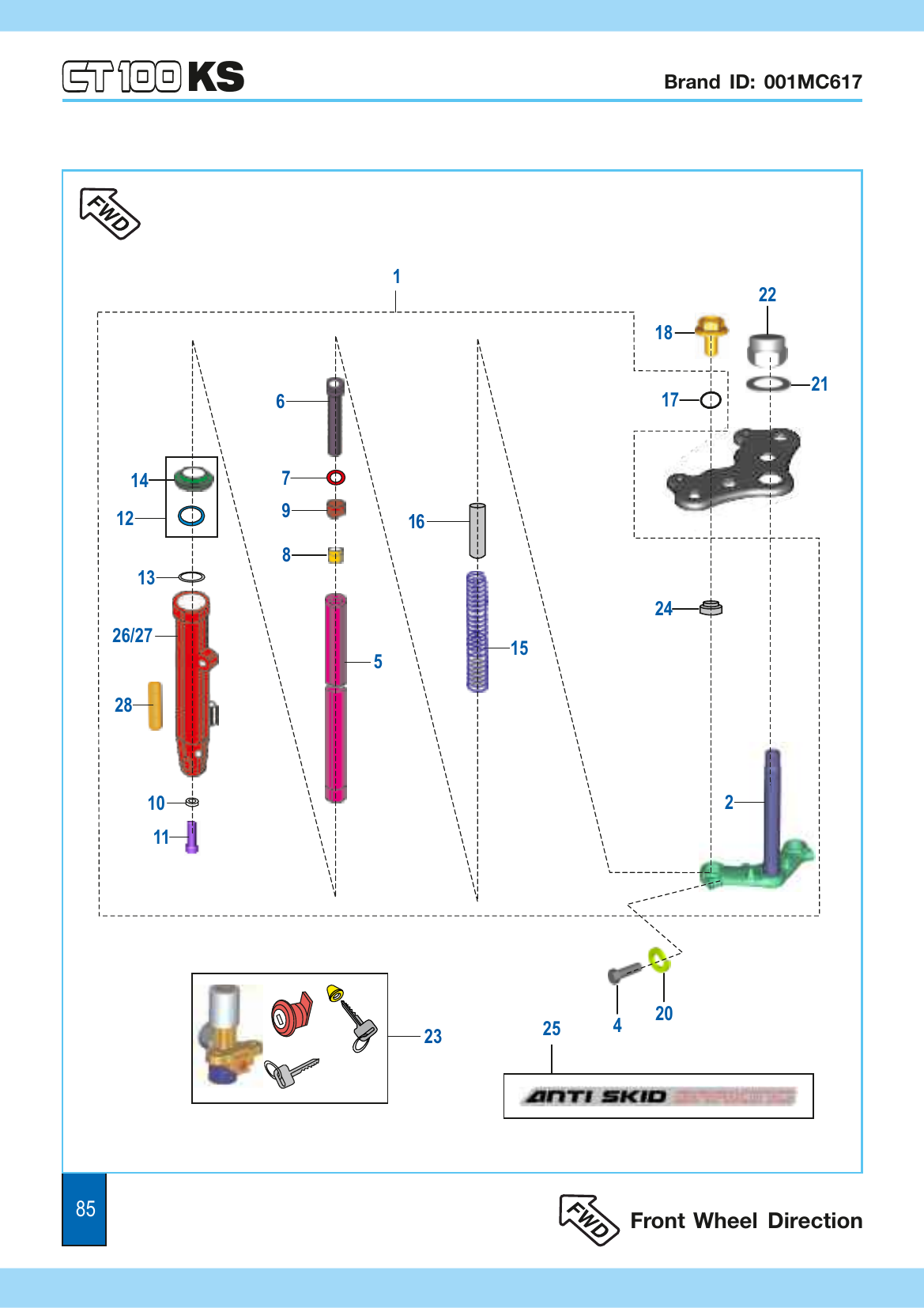

Front Fork
30 parts
Plate 41

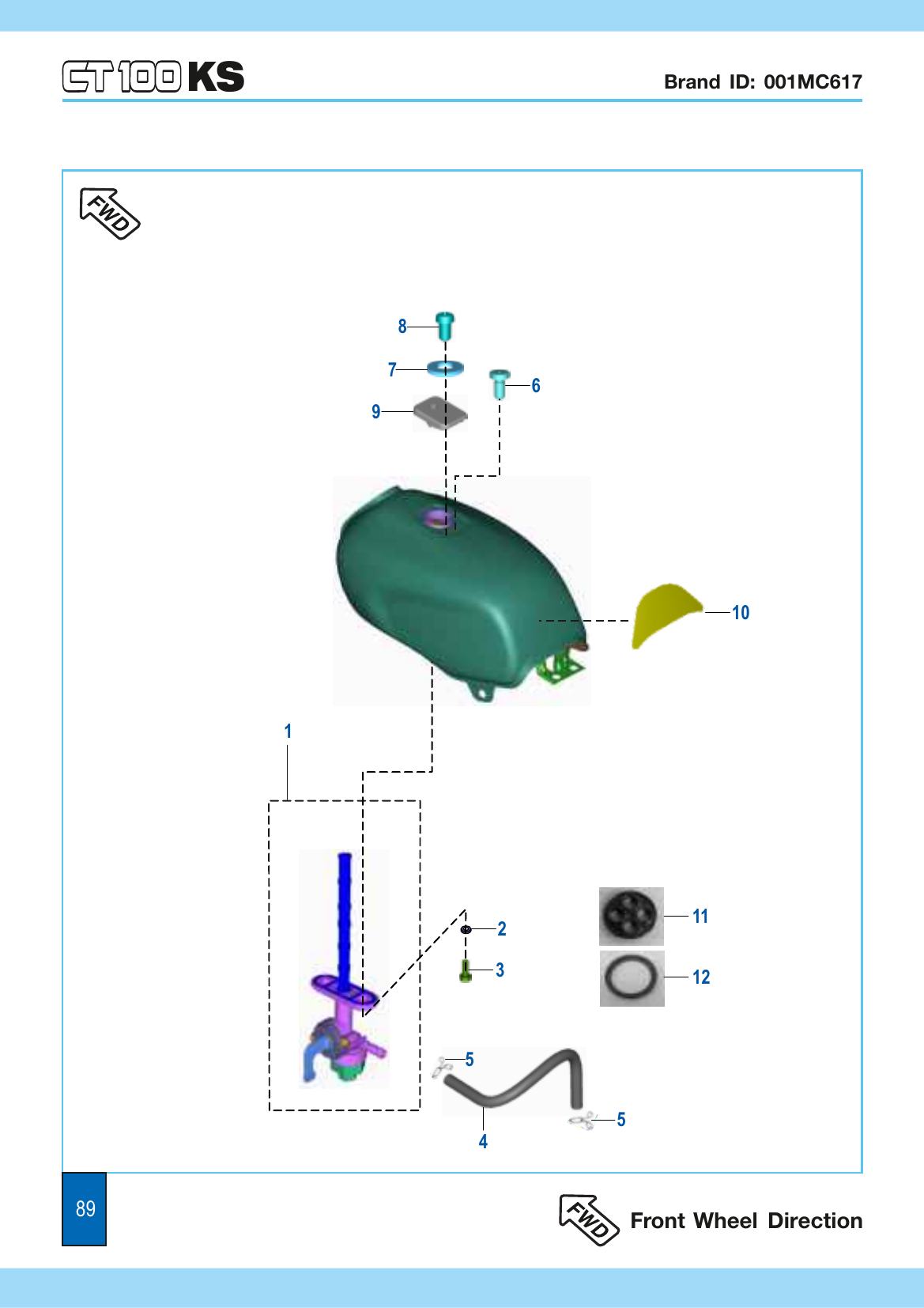

Petrol Tank Cap & Fuel Cock
12 parts
Plate 42

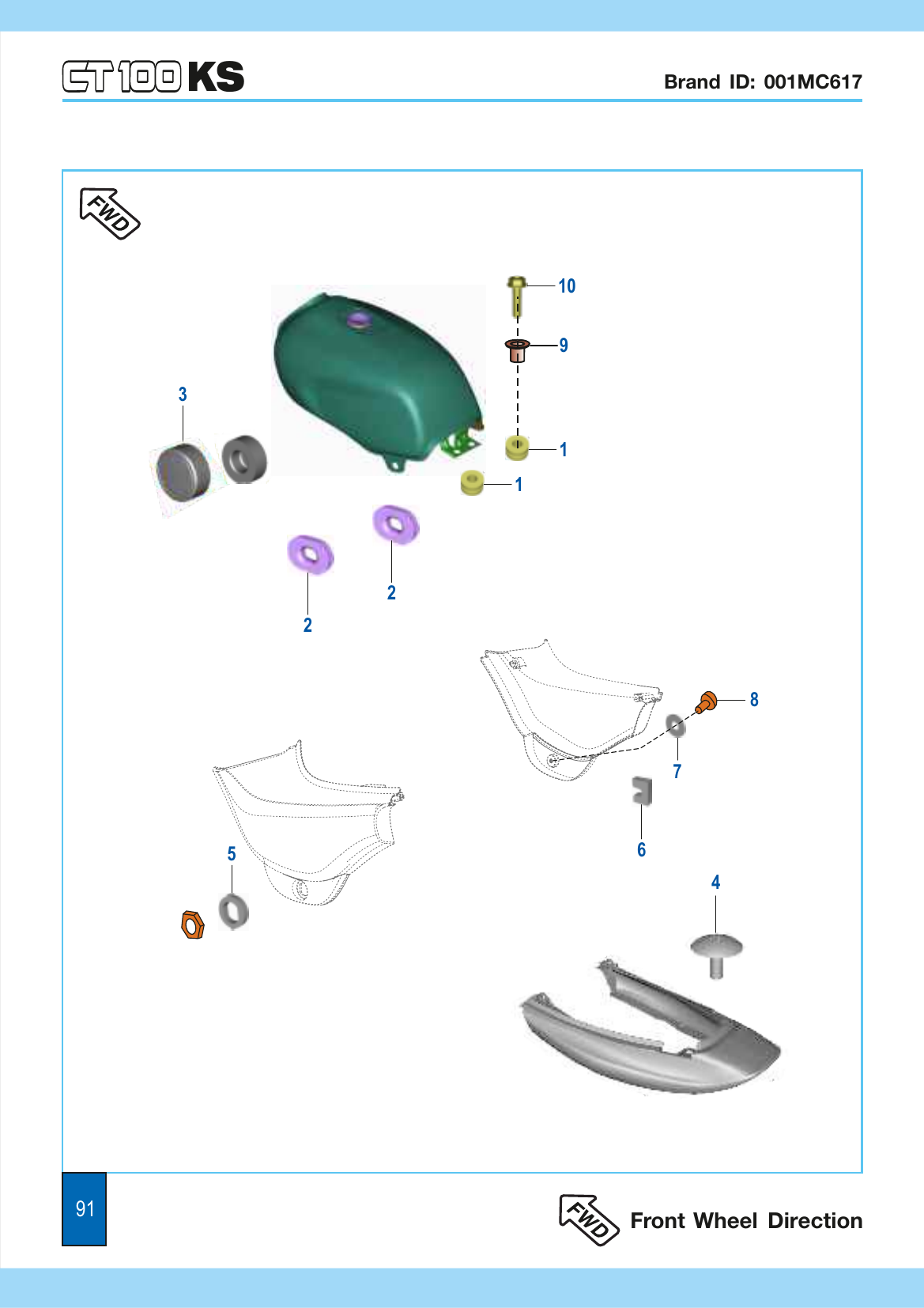

Fittings - Petrol Tank, Side Covers & Seat Cowl
10 parts

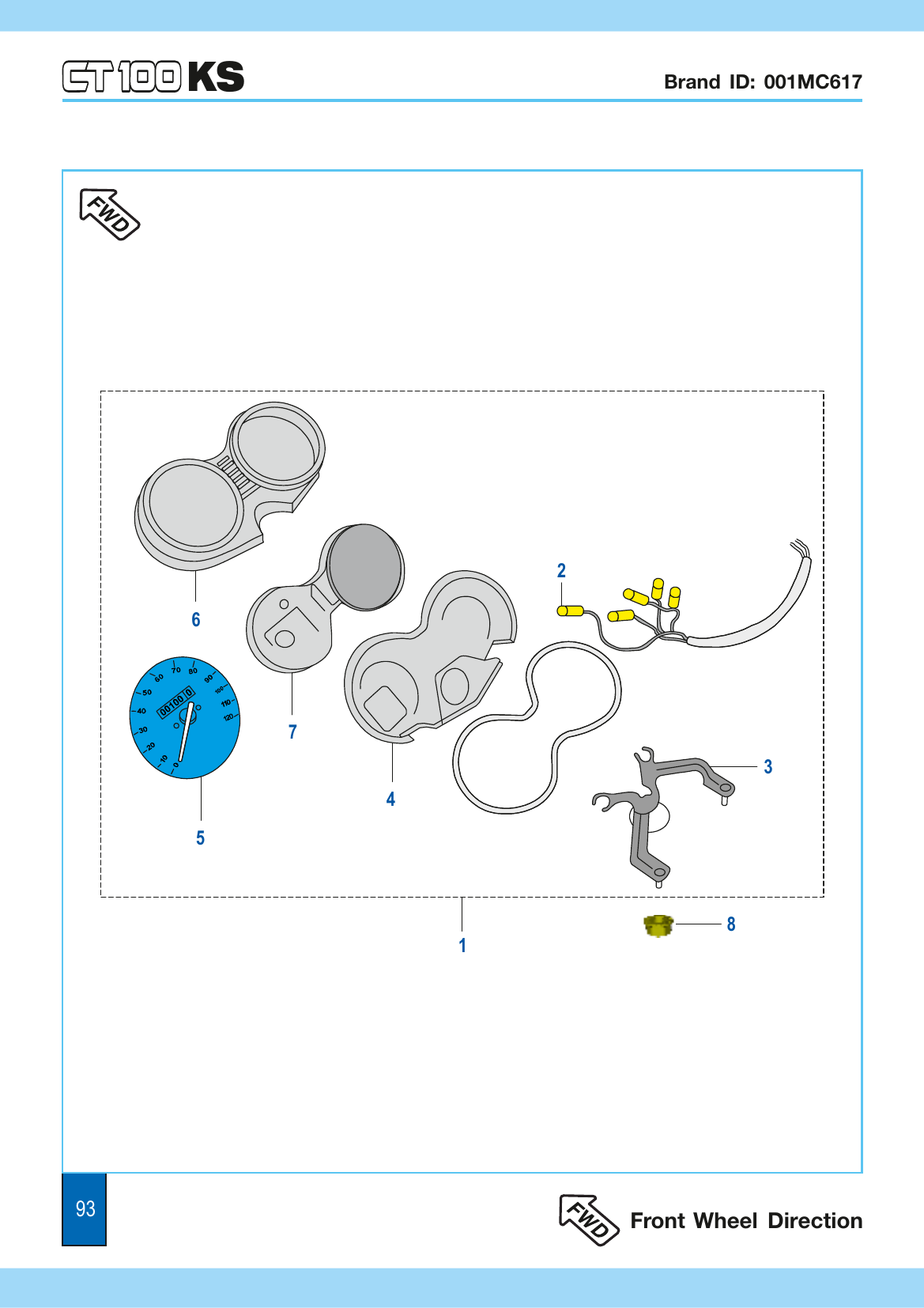

Plate 43
Meter Assembly
14 parts
Plate 44

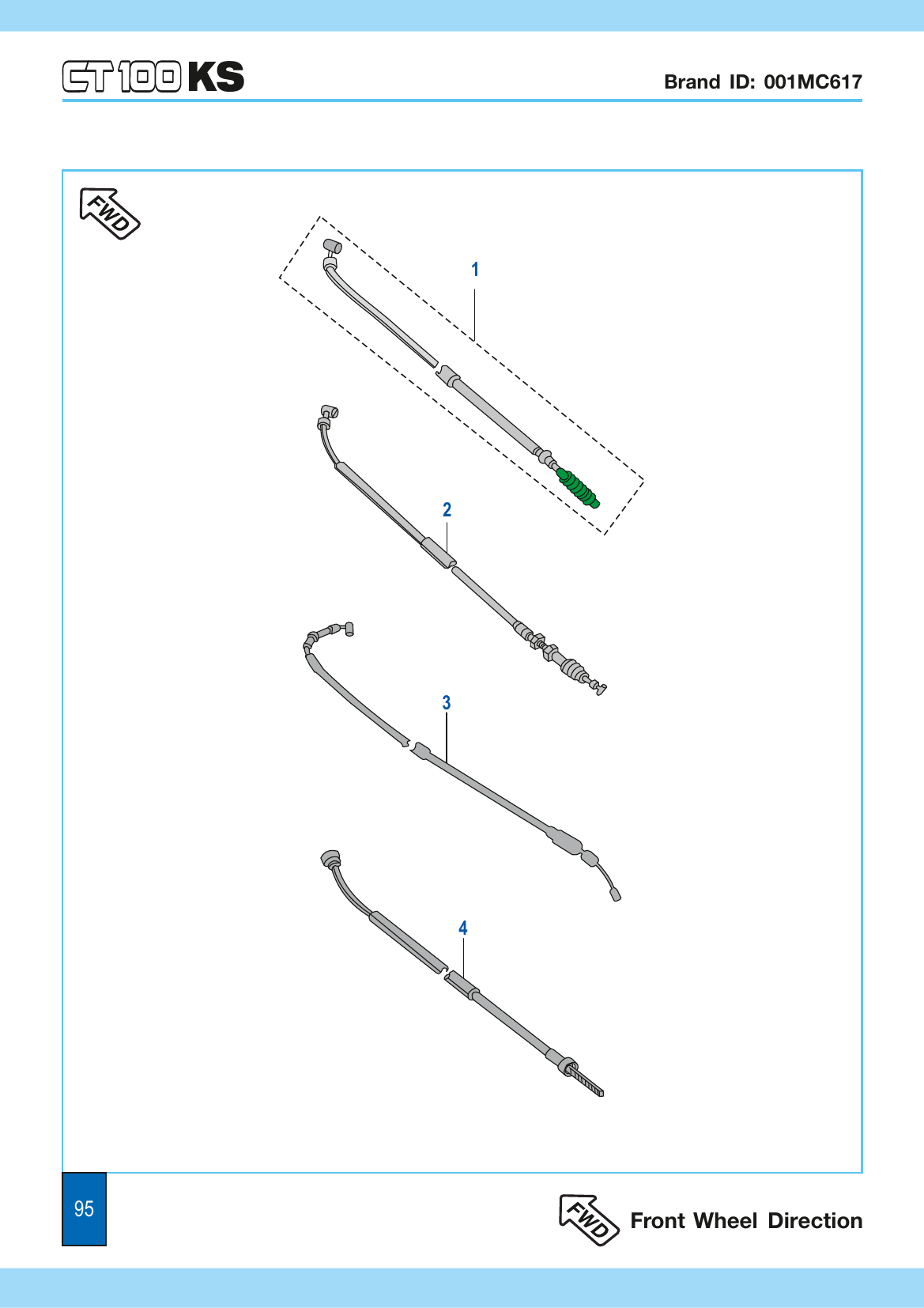

Control Cables
4 parts
Plate 45

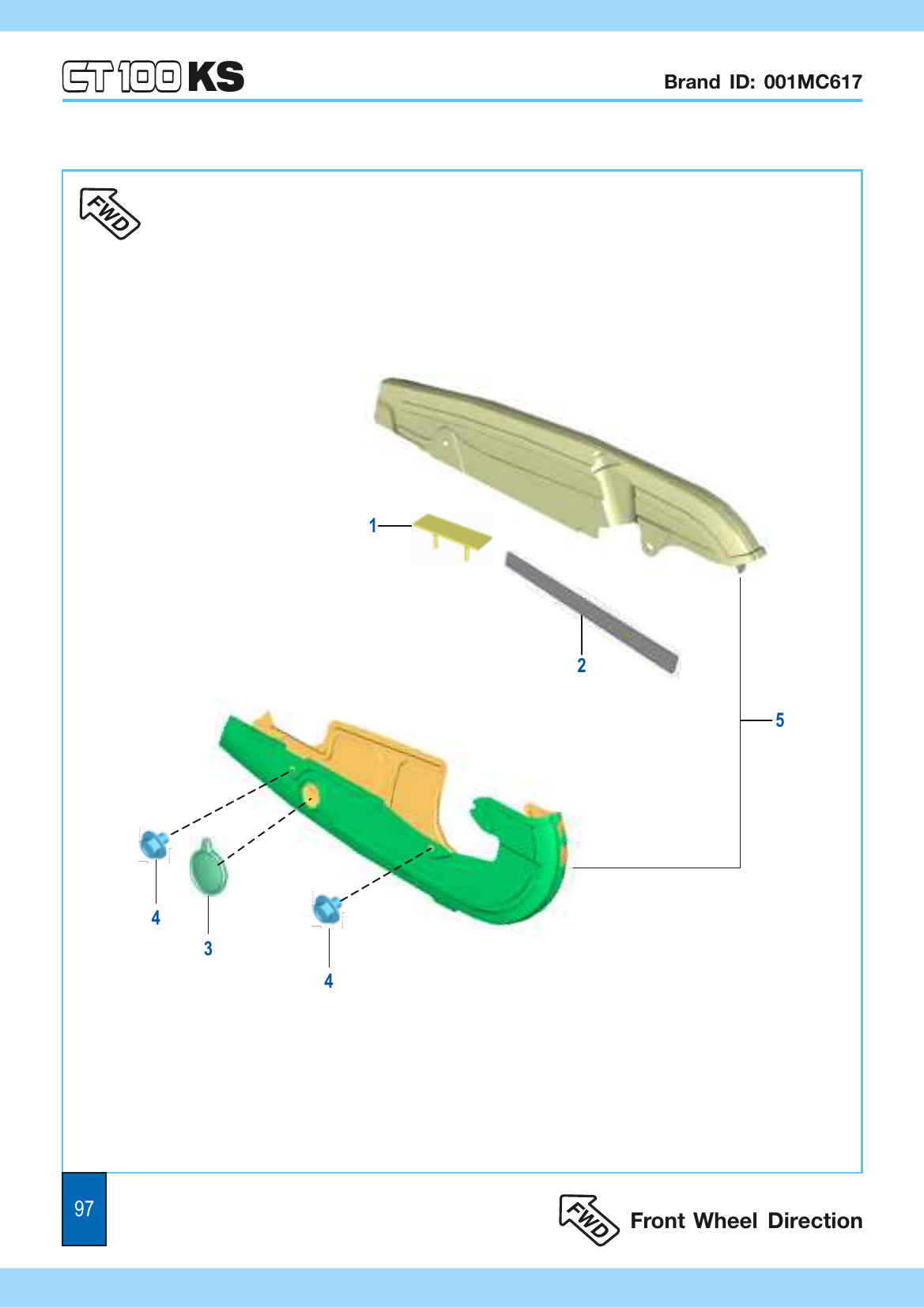

Chain Case
5 parts
Plate 46

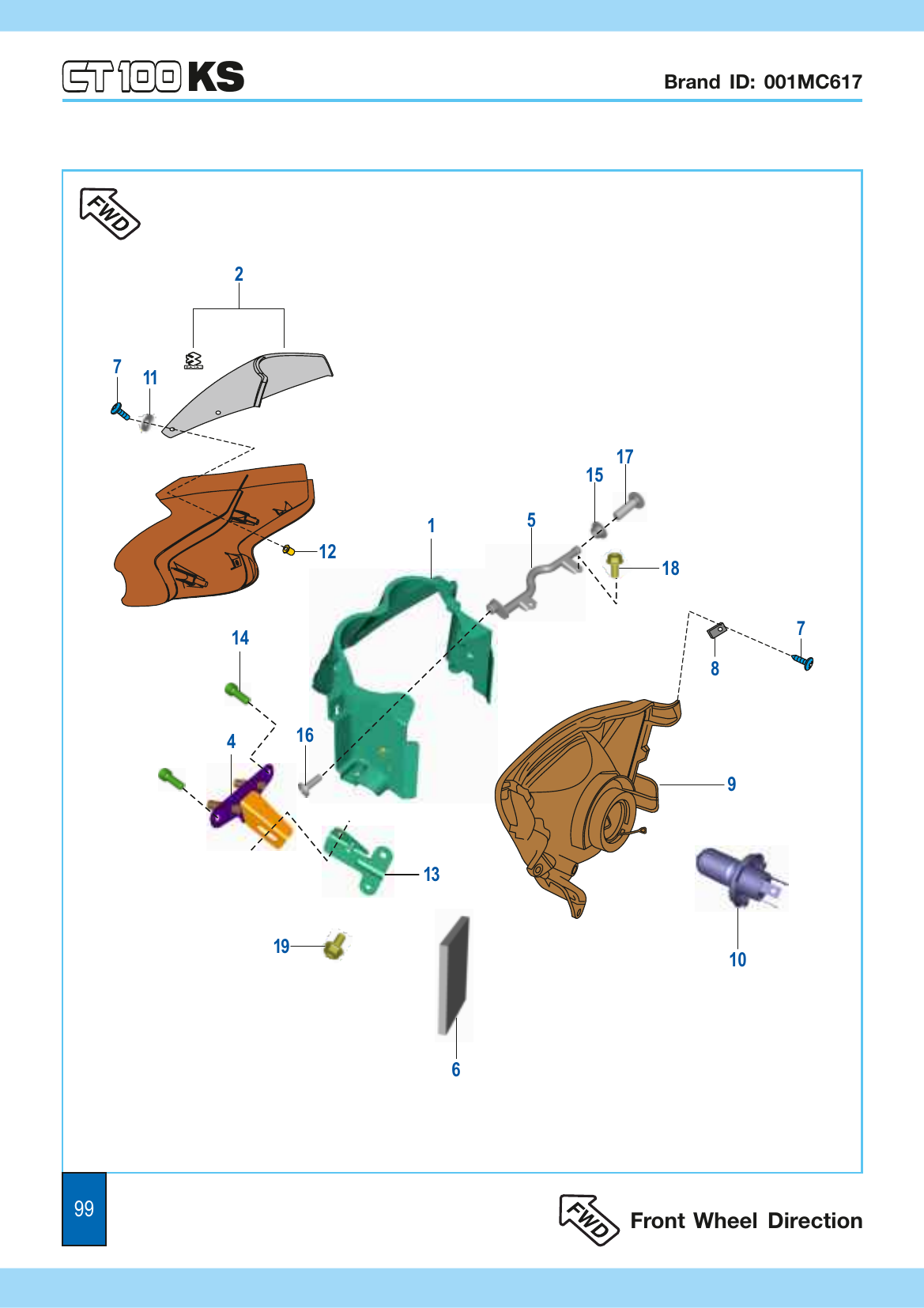

Head Lamp & Fairing
20 parts
Plate 47

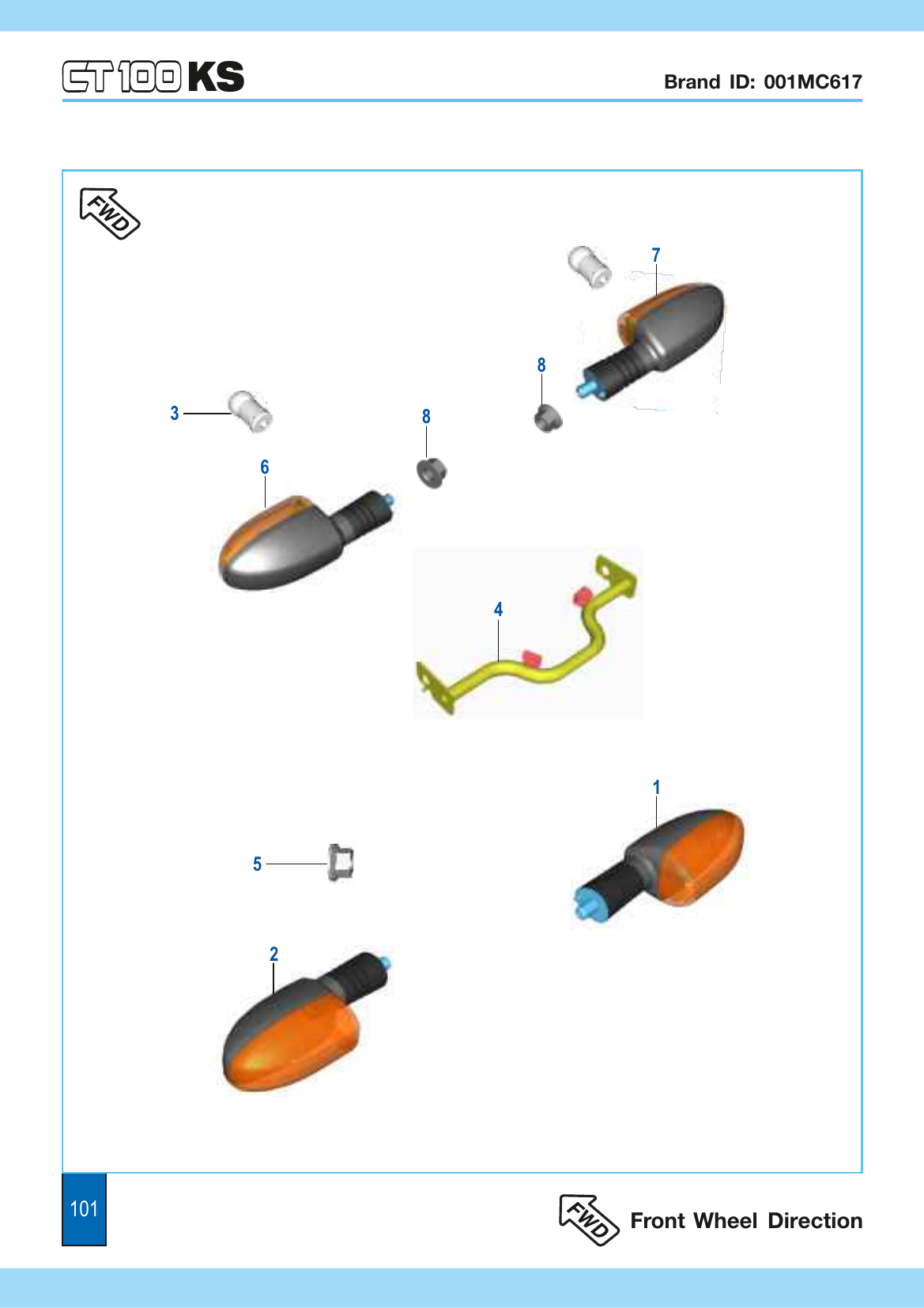

Indicator Light Assembly
8 parts
Plate 48

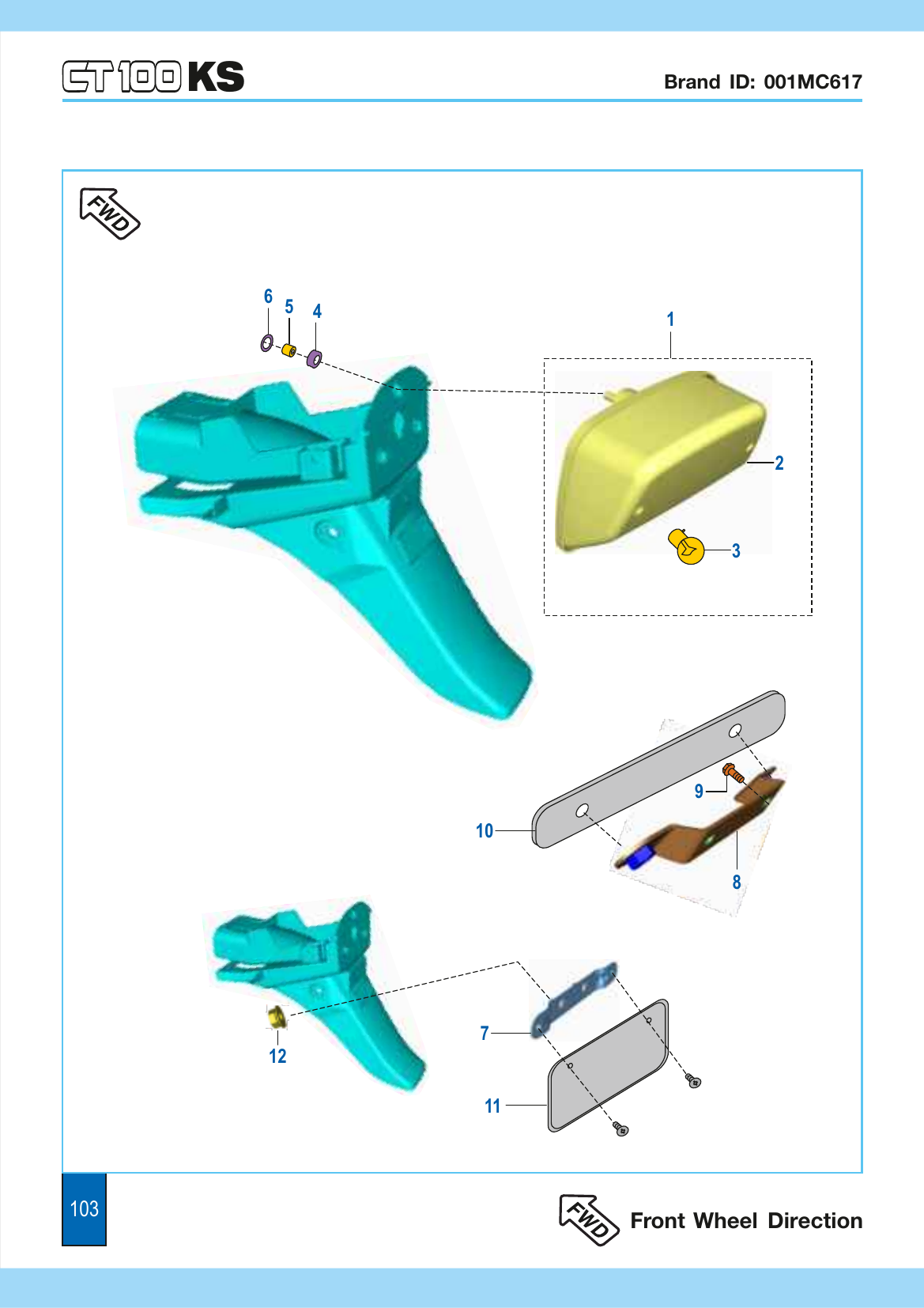

Tail Lamp Assly / Number Plate
12 parts
Plate 49

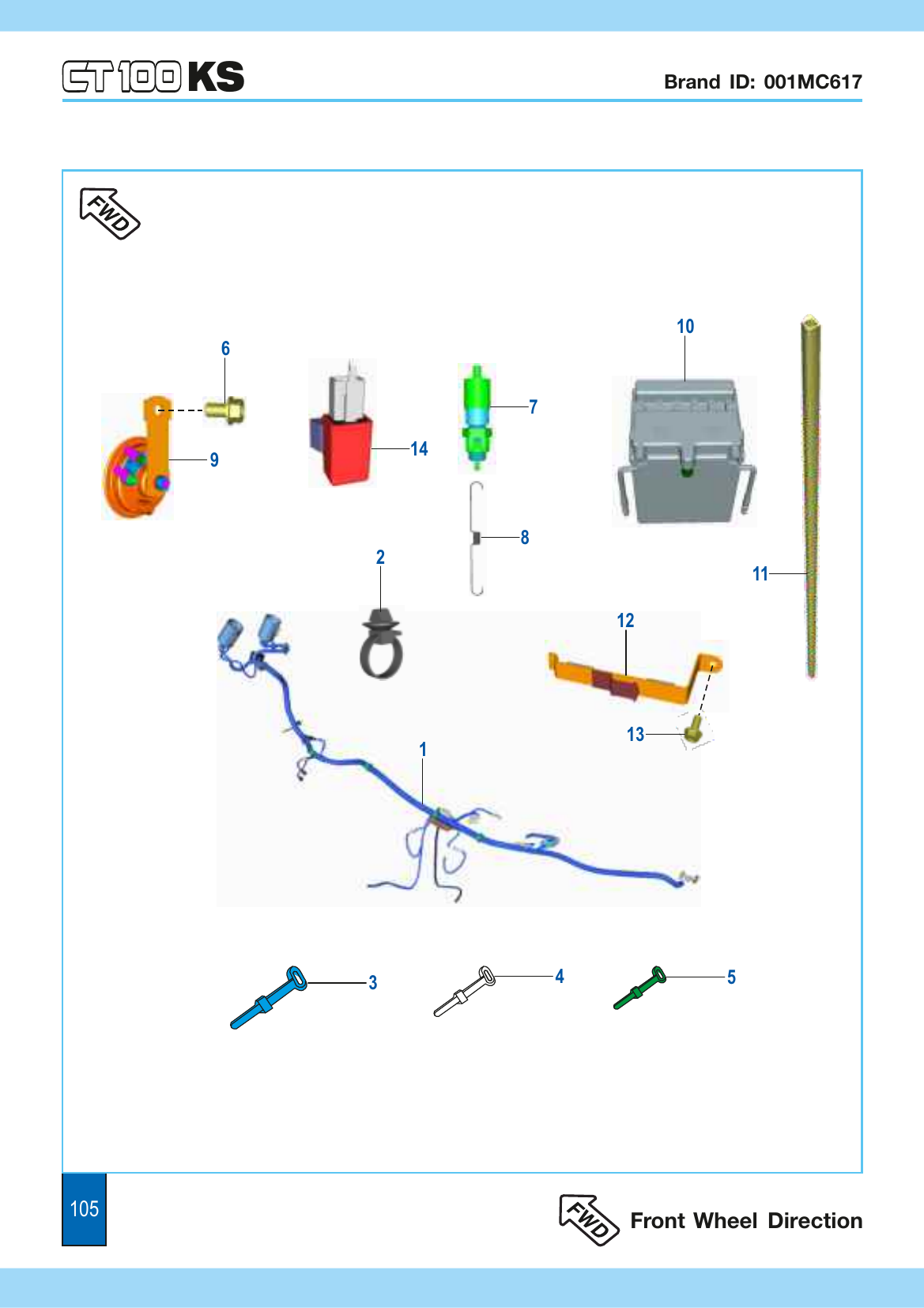

Electrical Equipments
14 parts
Plate 50

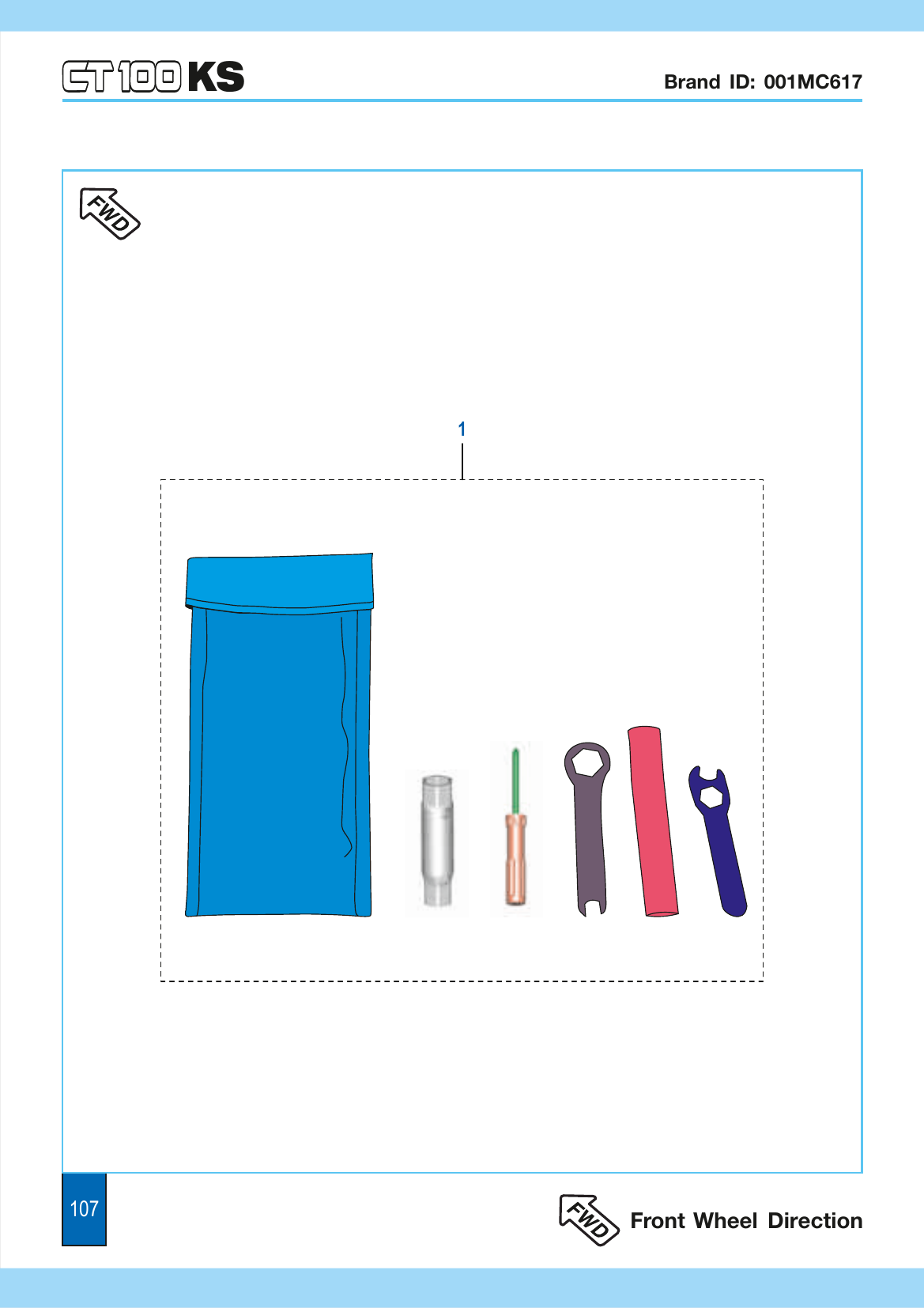

Tool Kit
1 parts

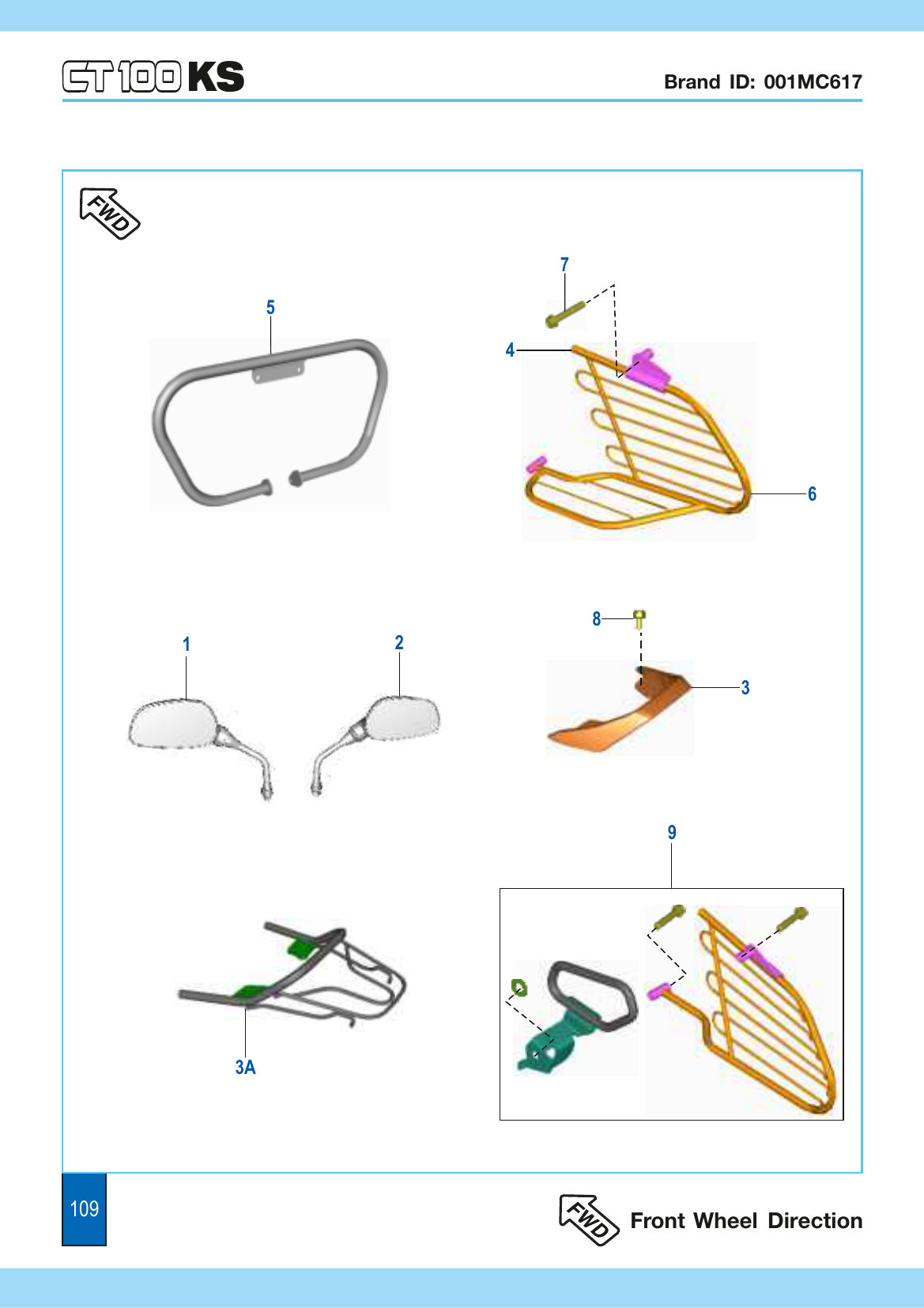

Plate 51
Accessories / Grab Handle
10 parts

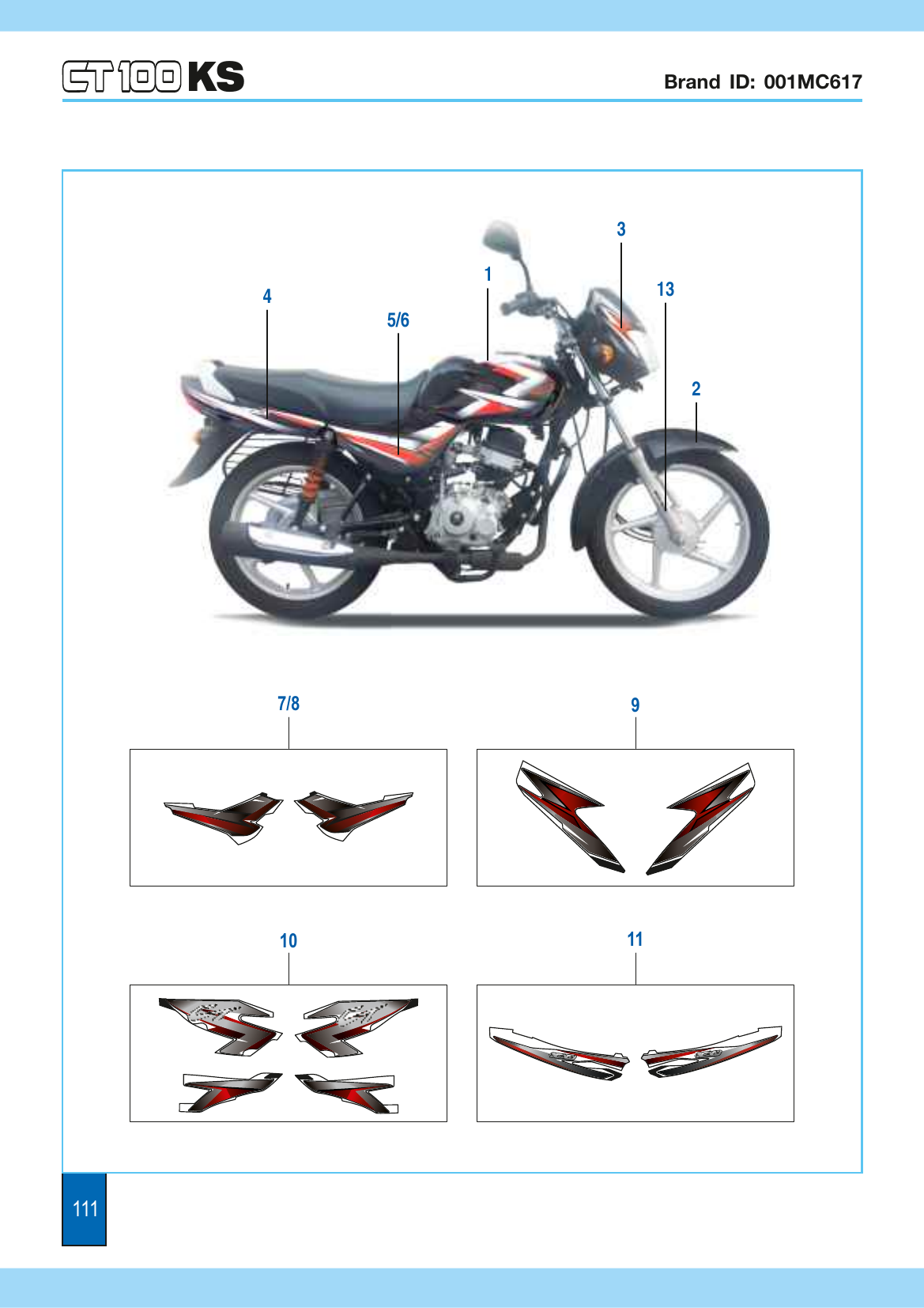

Plate 52
Painted Parts and Decals
48 parts
Plate 53

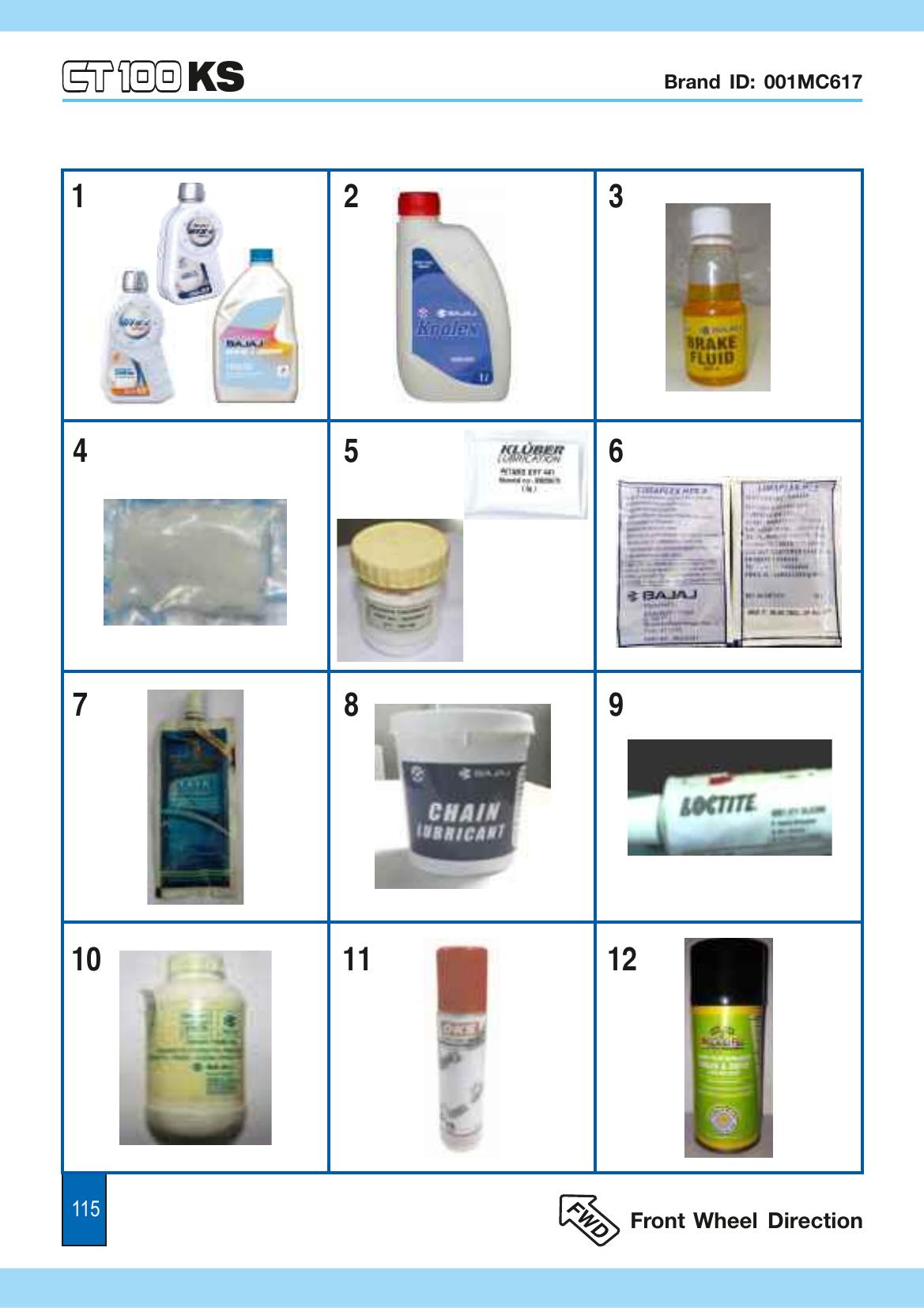

Consumable Parts
28 parts
