BAJAJ
CT 110 X NXT BS VI
775 parts across 49 plates
ColorDoc: 71120244Rev: REV. 00Date: 2025-04-0149 assemblies · 21 kits
Plate 1
Cylinder Head & Intake Manifold
17 parts
Plate 2
Throttle Body Assembly
5 parts
Plate 3
Valve
6 parts
Plate 4
Camshaft / Tensioner
14 parts
Plate 5

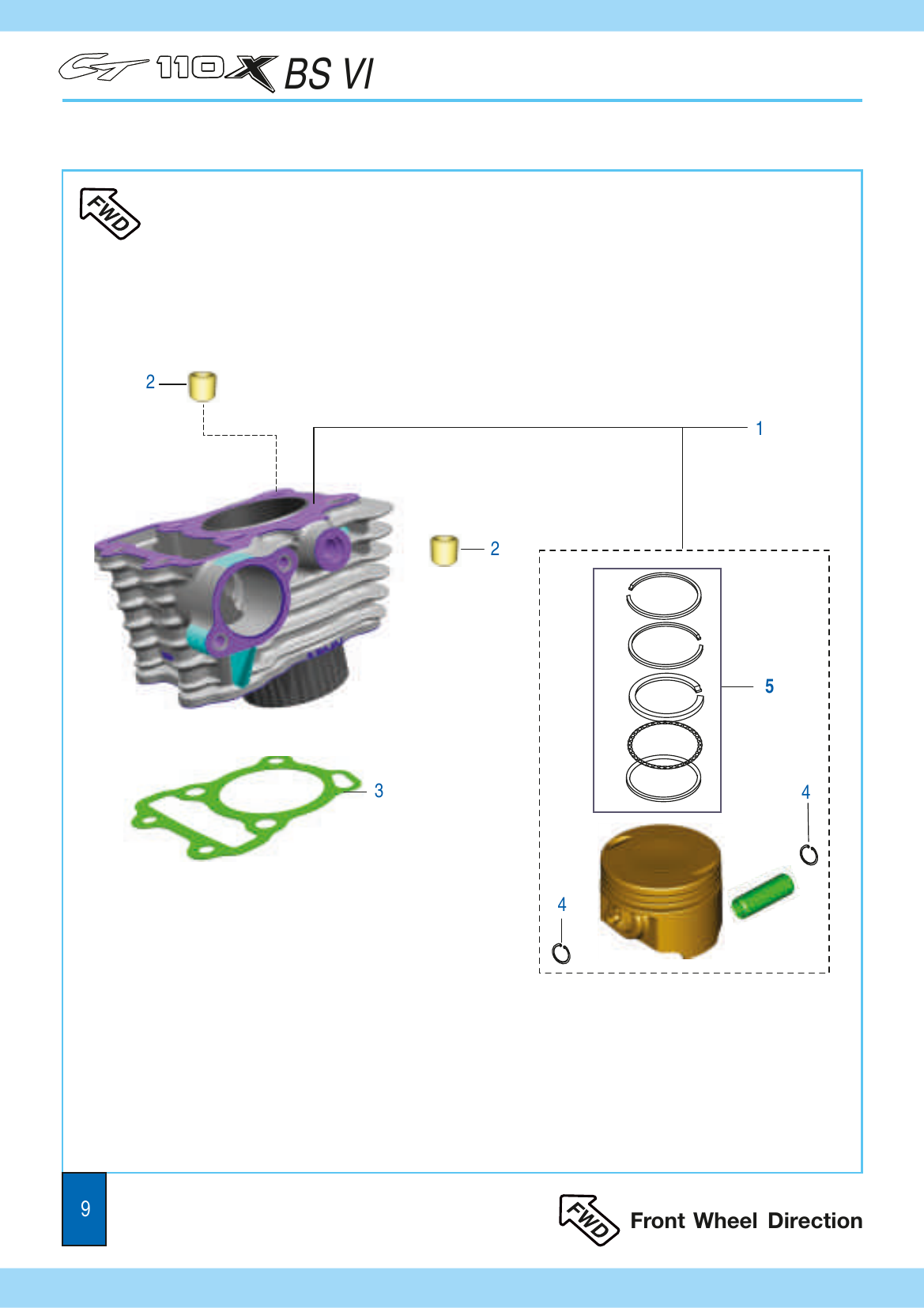

Cylinder and Piston
5 parts
Plate 6

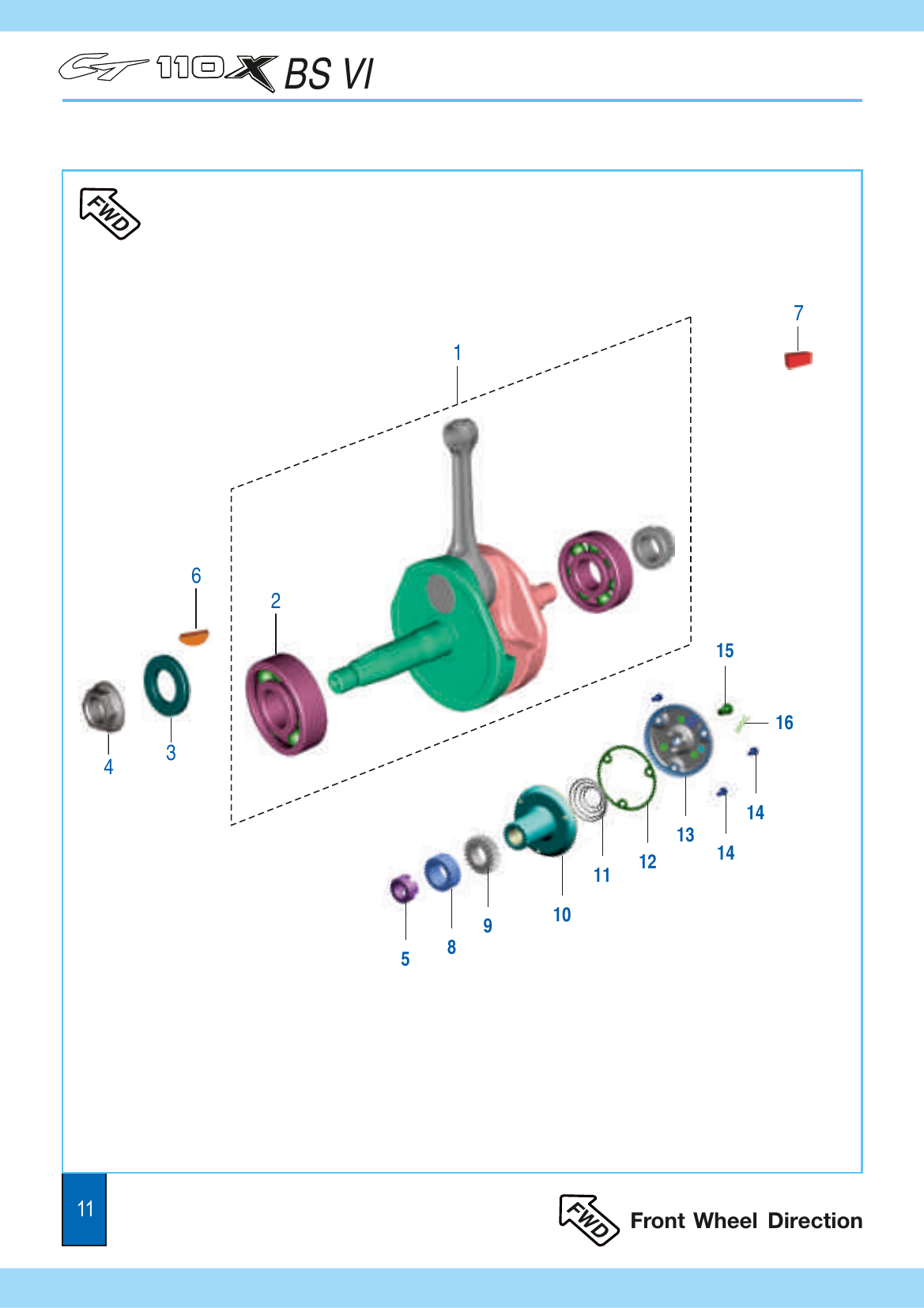

Crankshaft
16 parts
Plate 7

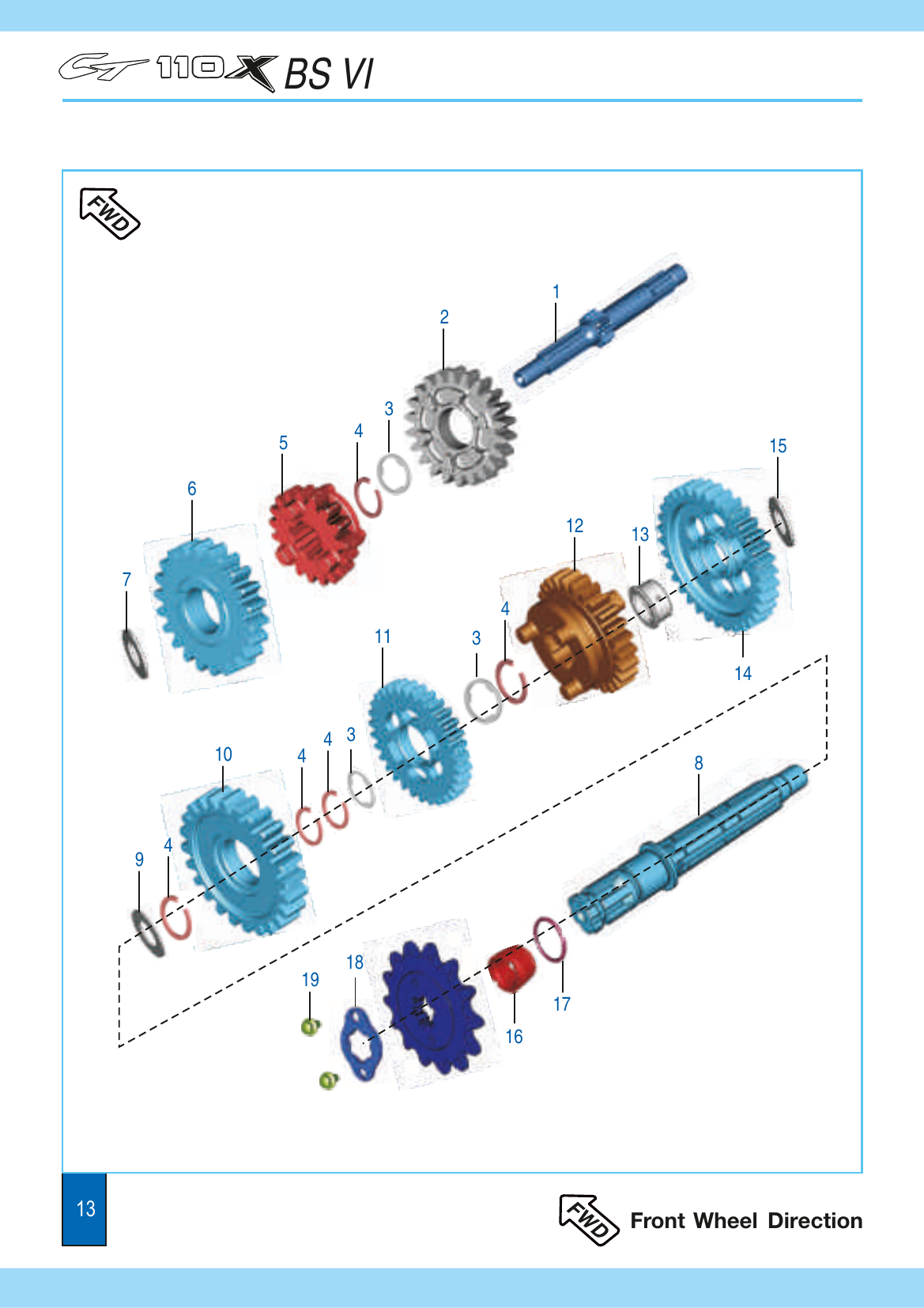

Transmission
19 parts
Plate 8

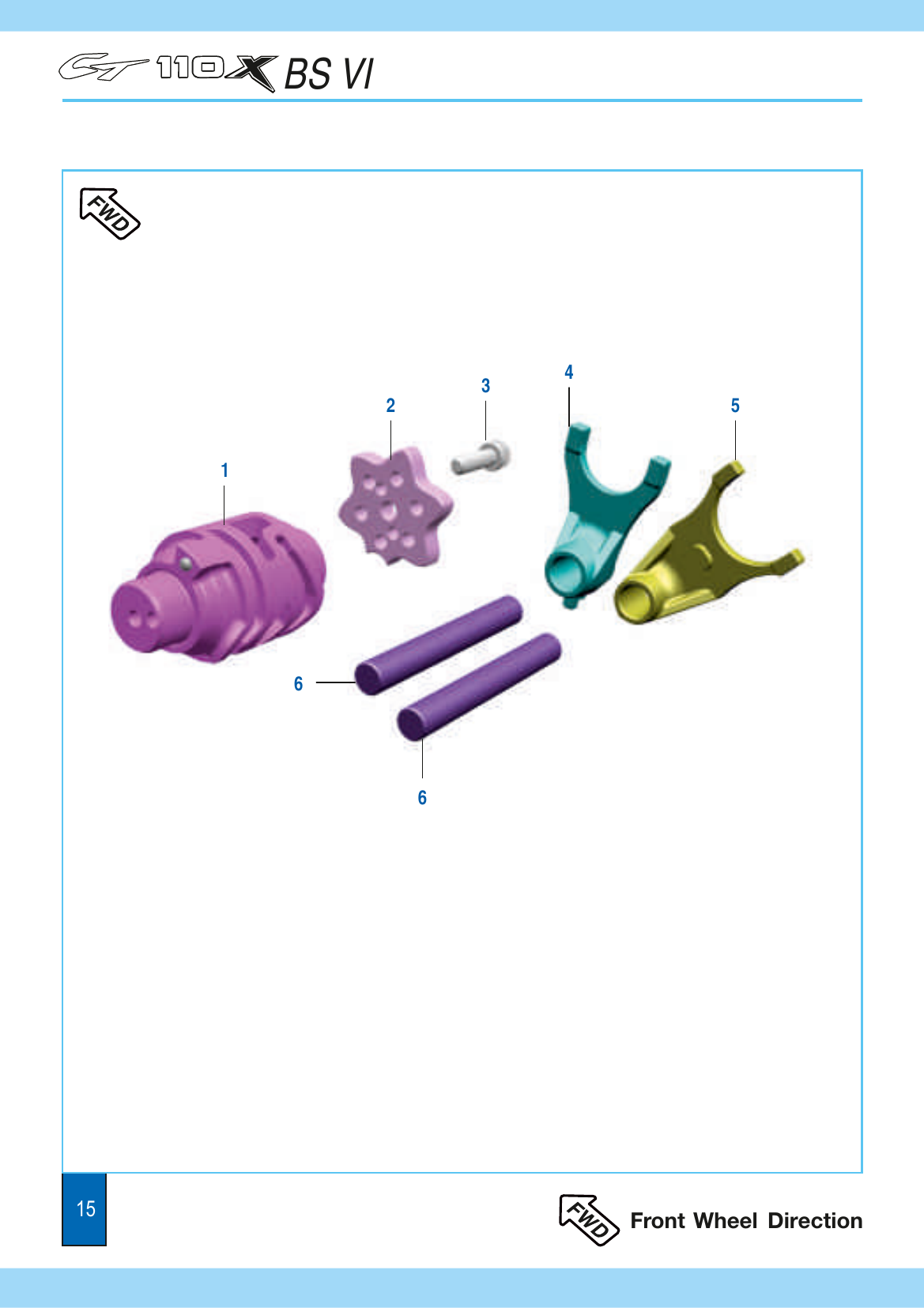

Change Drum / Shift Fork
6 parts
Plate 9
Gear Change Mechanism
8 parts
Plate 10
Crankcase RH / Engine Assembly
16 parts
Plate 11
Crankcase LH
17 parts
Plate 12
Oil Pump
3 parts
Plate 13
Kick Starter Mechanism
15 parts
Plate 14
Cover Clutch
12 parts
Plate 15

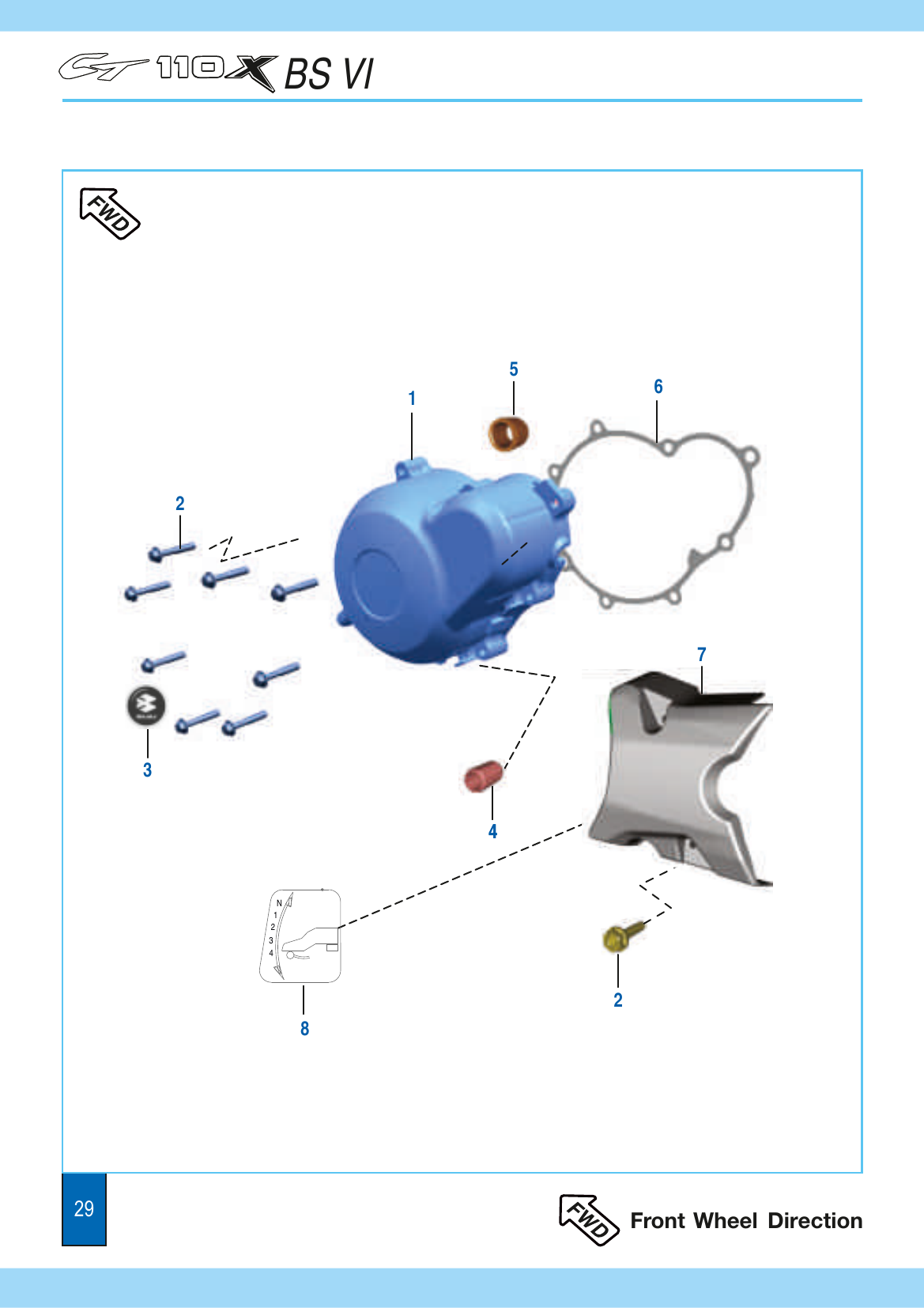

Cover Magneto
8 parts
Plate 16

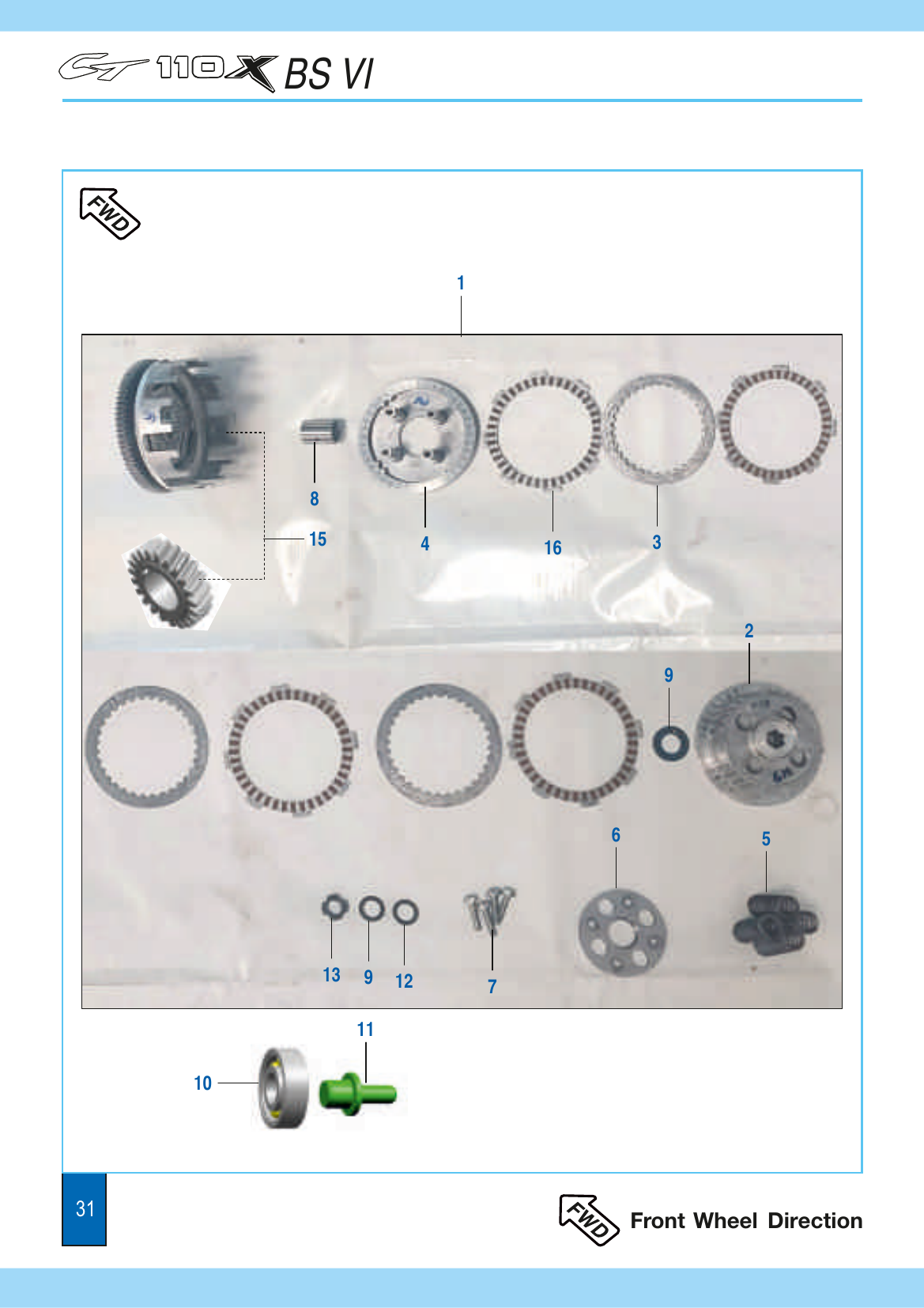

Clutch Assembly - Endurance Make
15 parts
Plate 17
Clutch Assembly - Makino make
15 parts
Plate 18
Air Cleaner Complete
21 parts
Plate 19
EVAP Mechanism
19 parts
Plate 20

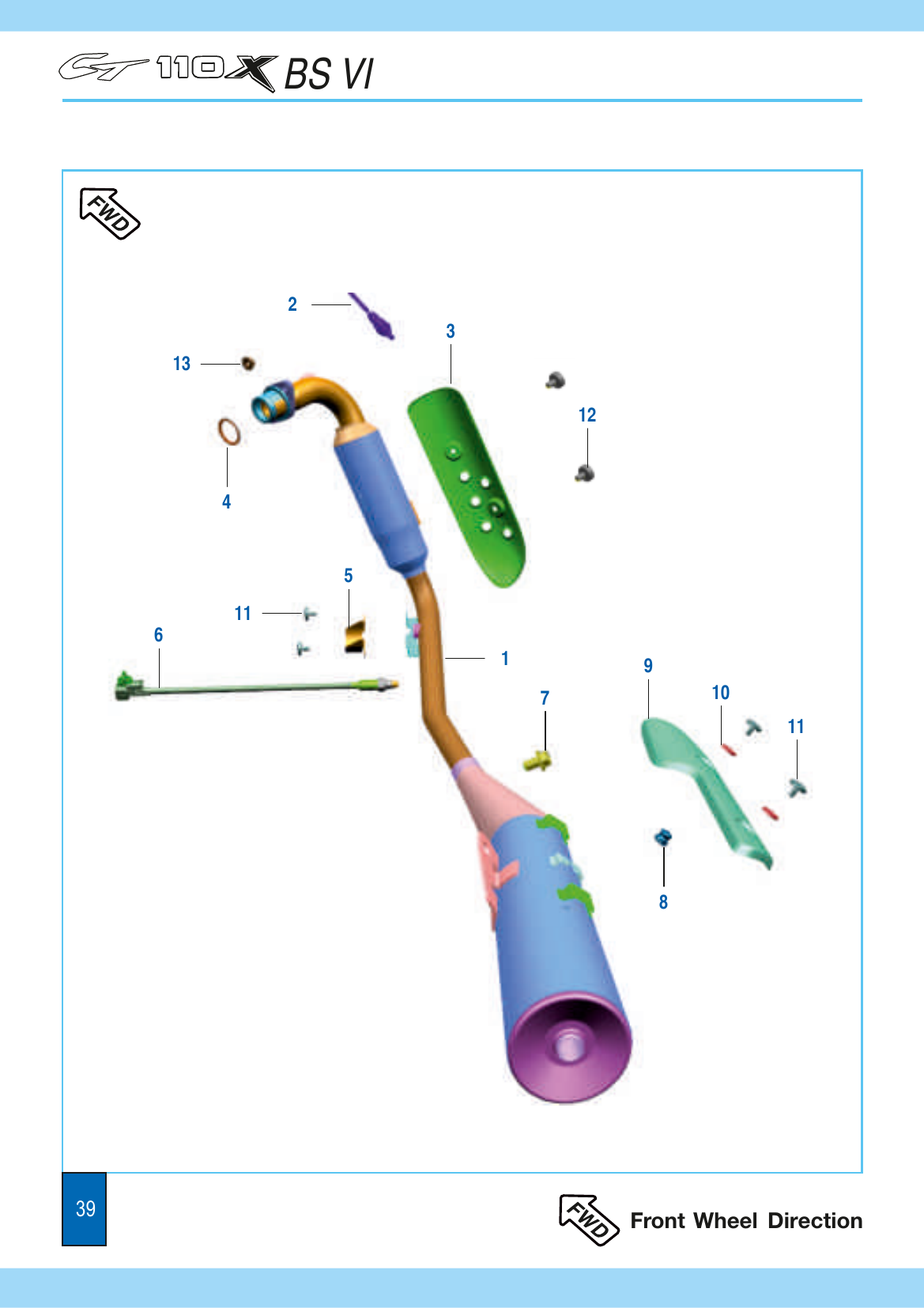

Silencer Assembly
13 parts
Plate 21
Starter Gears & Starter Motor Assembly
11 parts
Plate 22

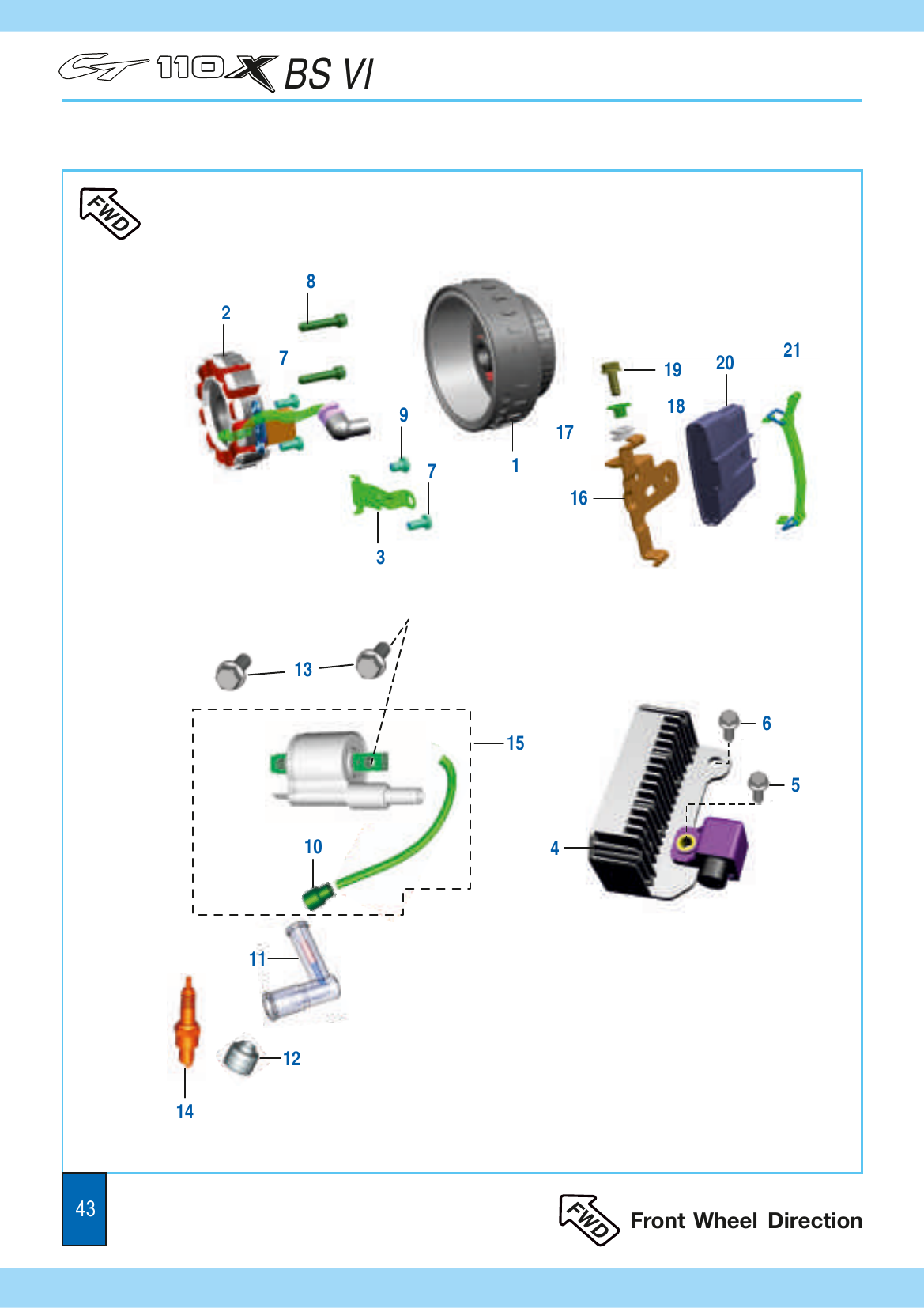

Magneto, H.T. Coil & ECU EMS Assembly
22 parts
Plate 23

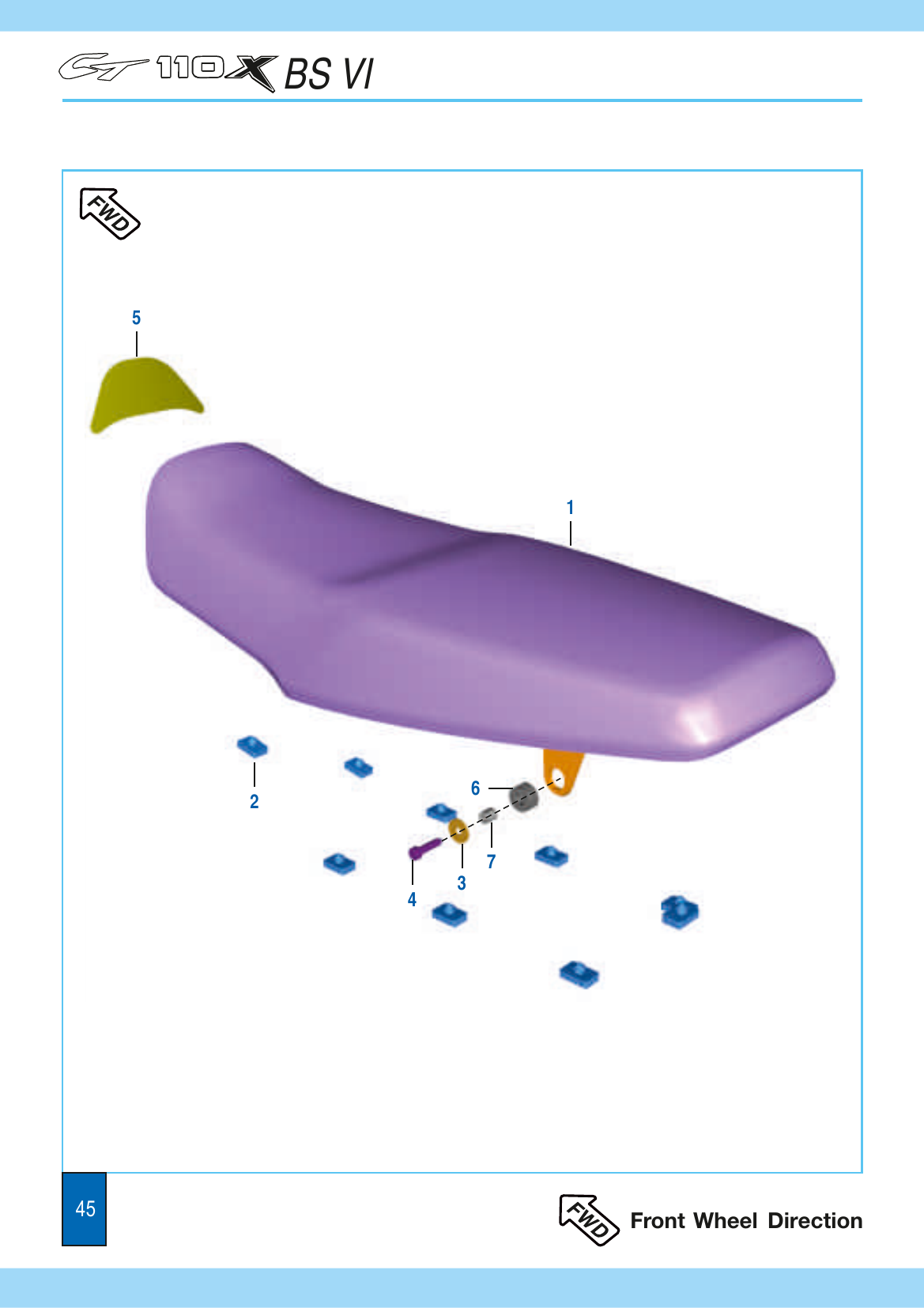

Seat Assembly & Mounting
7 parts
Plate 24
Engine Mountings
10 parts
Plate 25

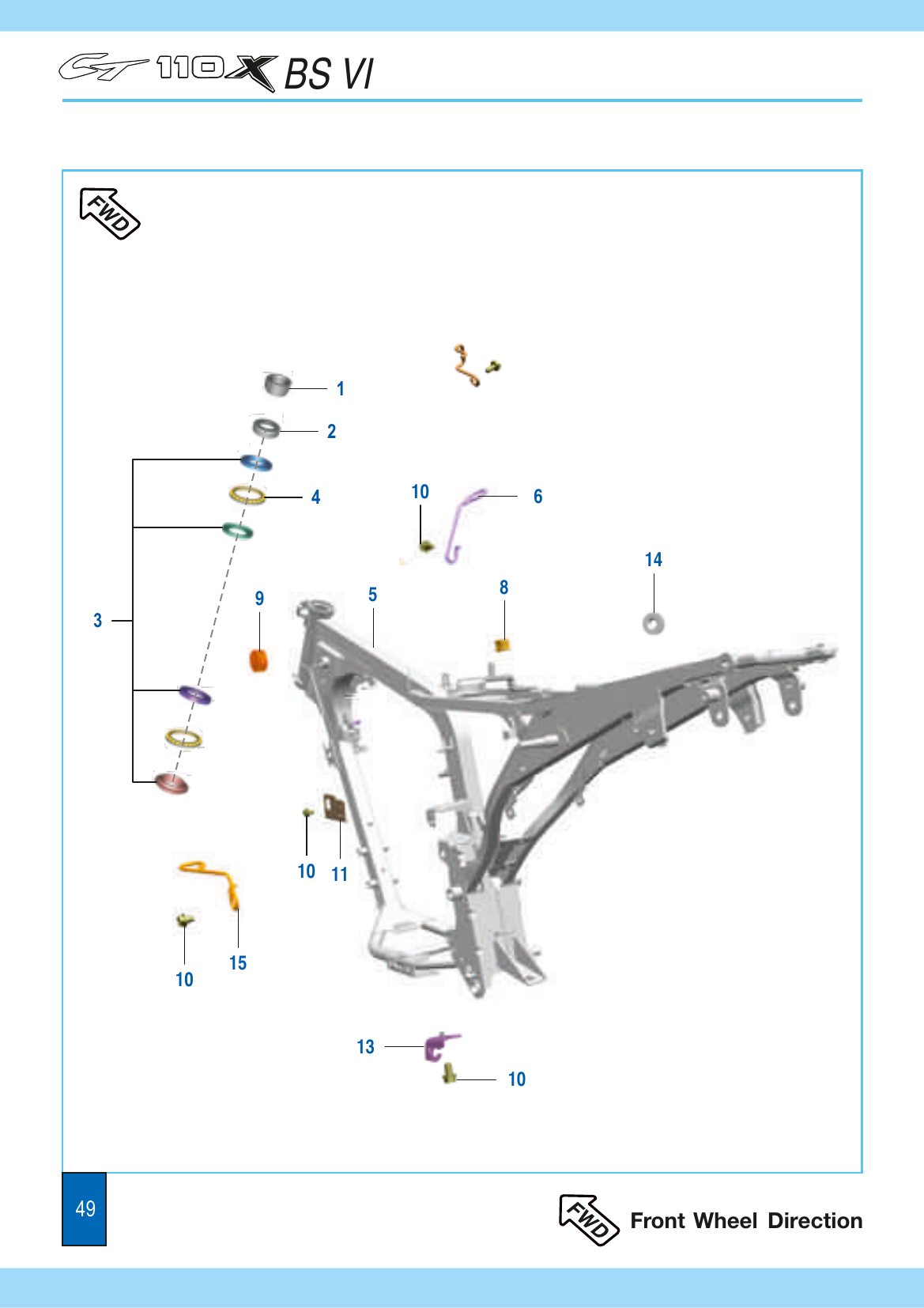

Frame & Frame Fittings
15 parts
Plate 26

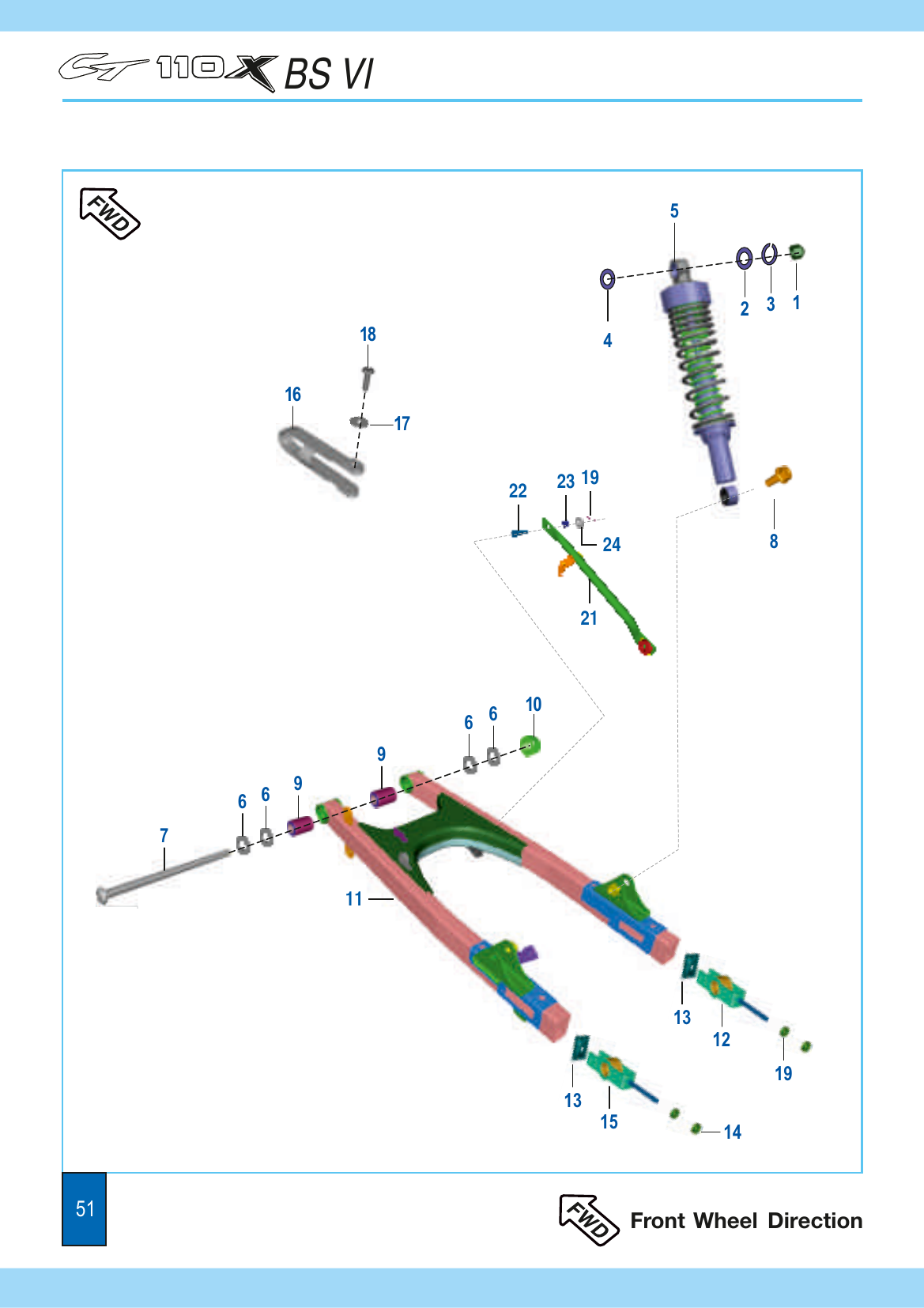

Swing Arm / Rear Shock Absorber
24 parts
Plate 27
Foot Rest - Rider / Pillion
15 parts
Plate 28

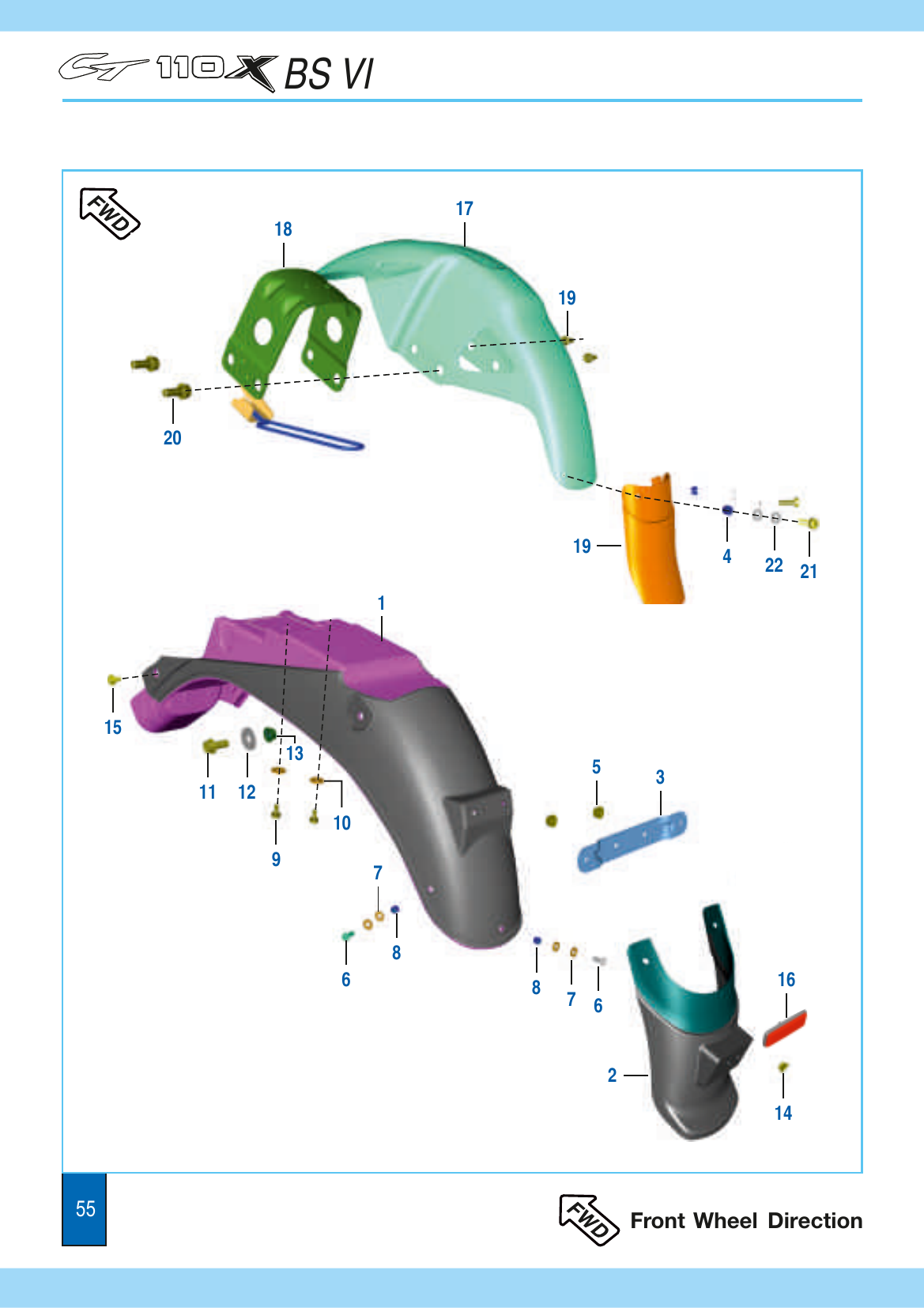

Mudguard - Front & Rear
22 parts
Plate 29

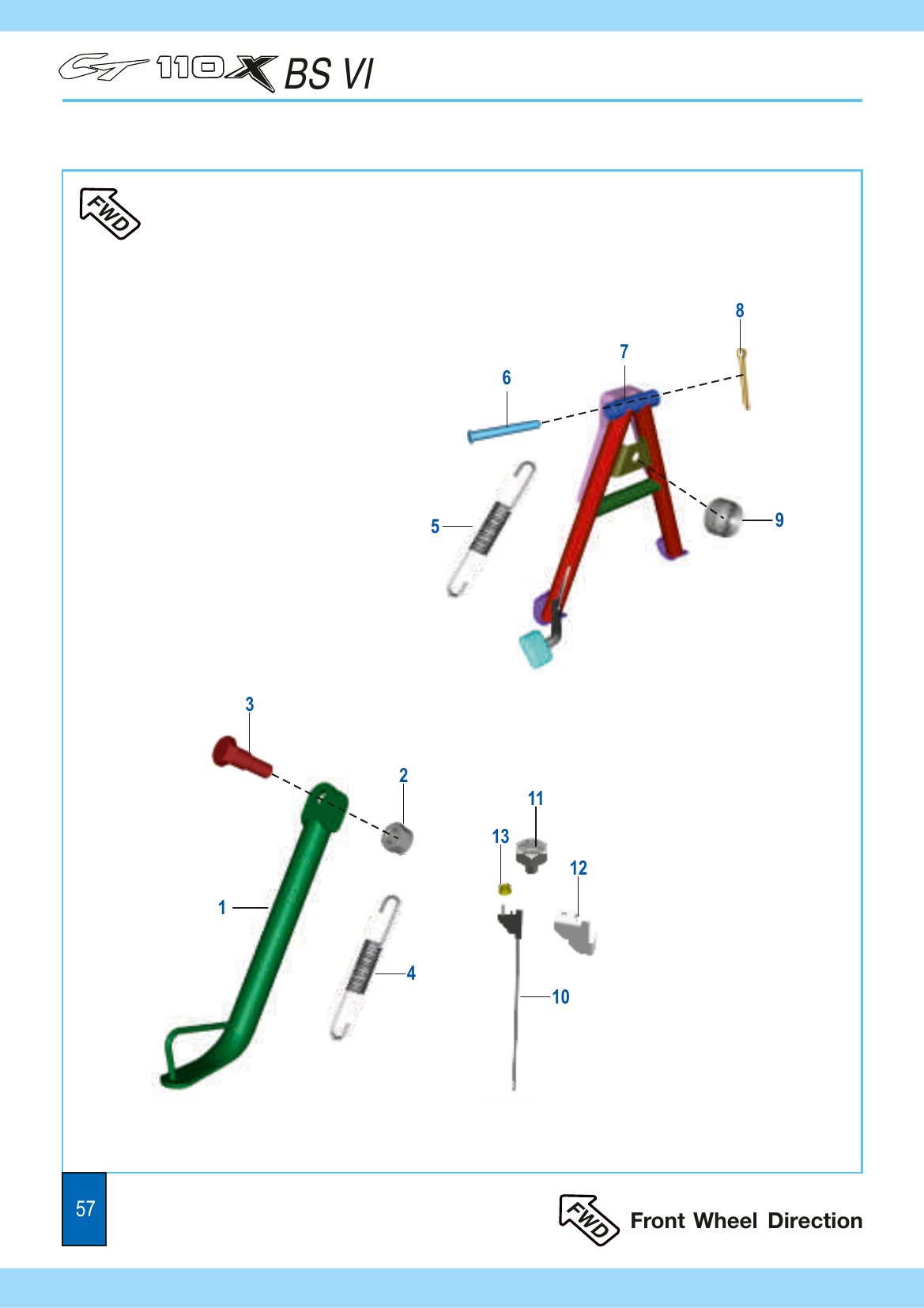

Stand Assembly
13 parts
Plate 30

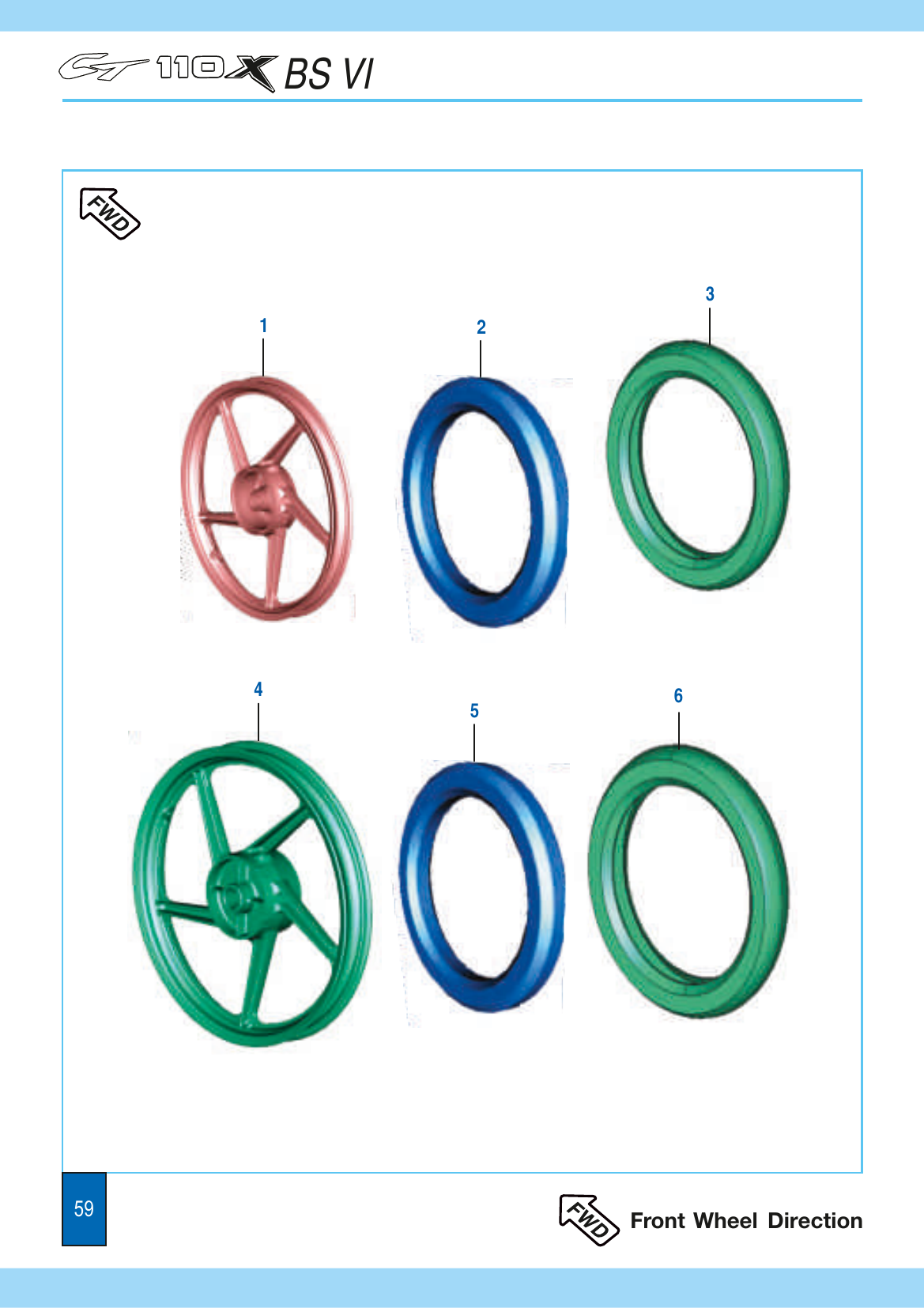

Tube / Tyre / Rim
6 parts
Plate 31
Front Hub
24 parts
Plate 32
Rear Hub
30 parts
Plate 33
CBS Link Rear Brake Panel
13 parts
Plate 34

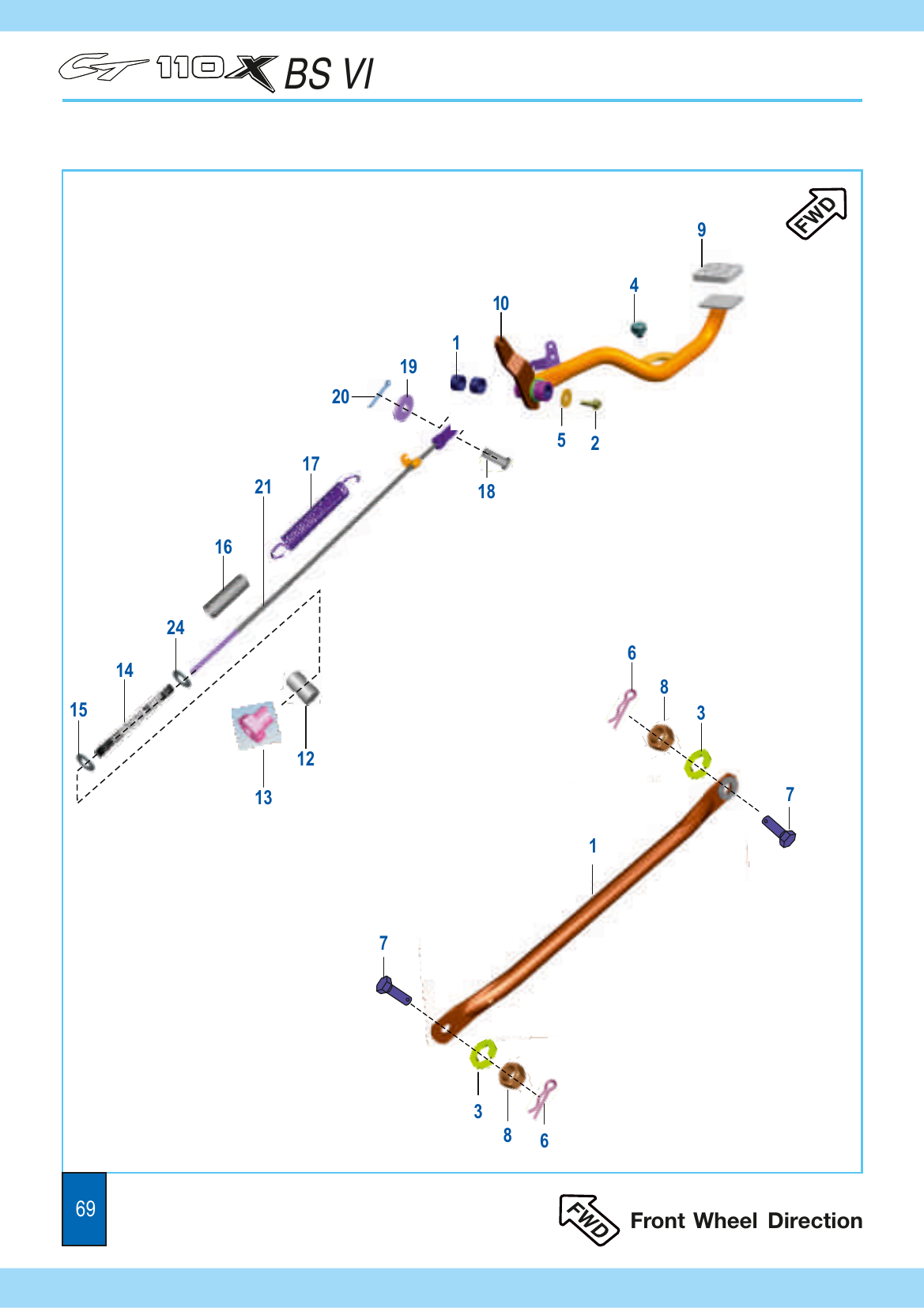

Rear Brake Pedal
21 parts
Plate 35

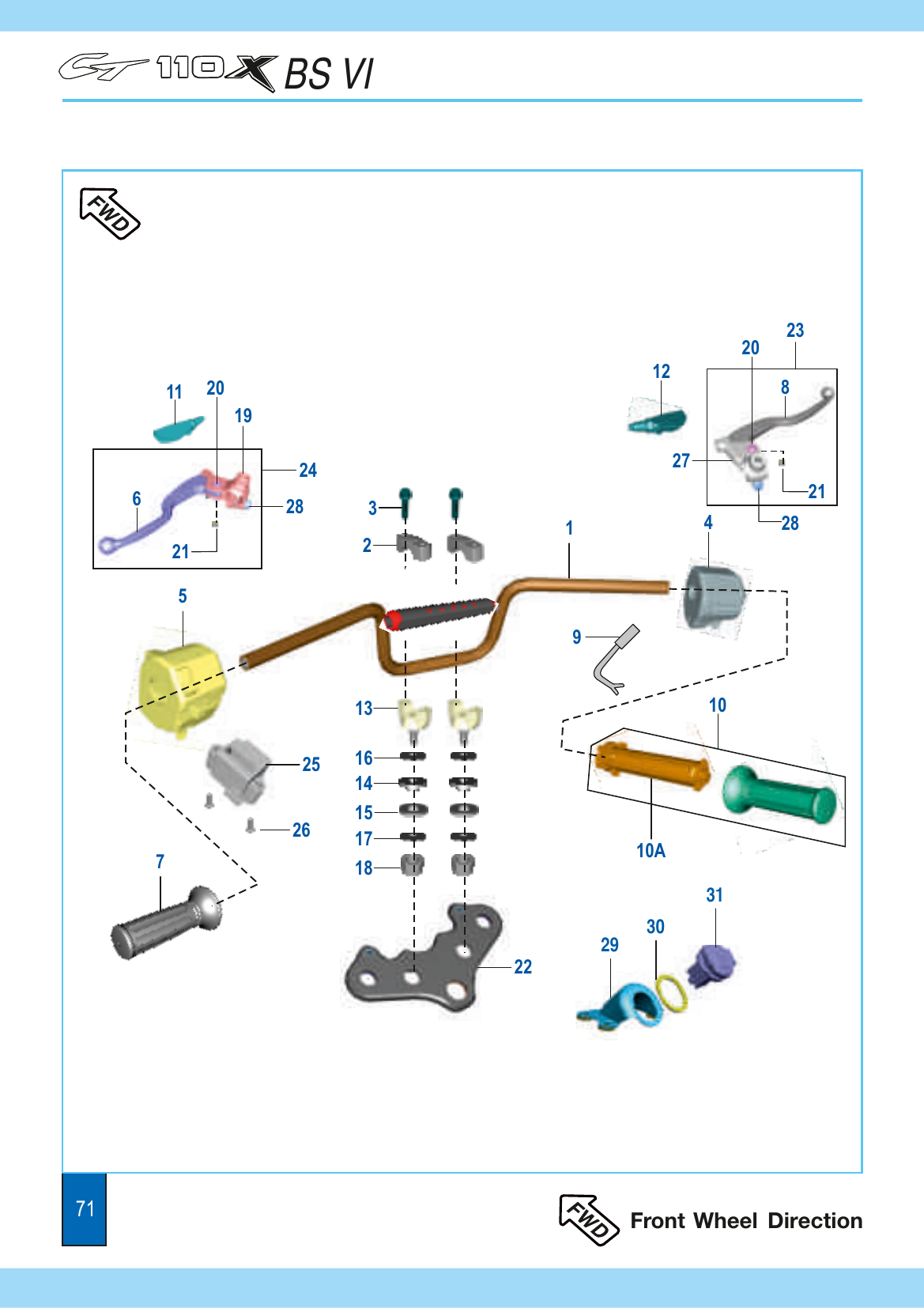

Handle Bar Assly
33 parts
Plate 36
Front Fork
36 parts
Plate 37

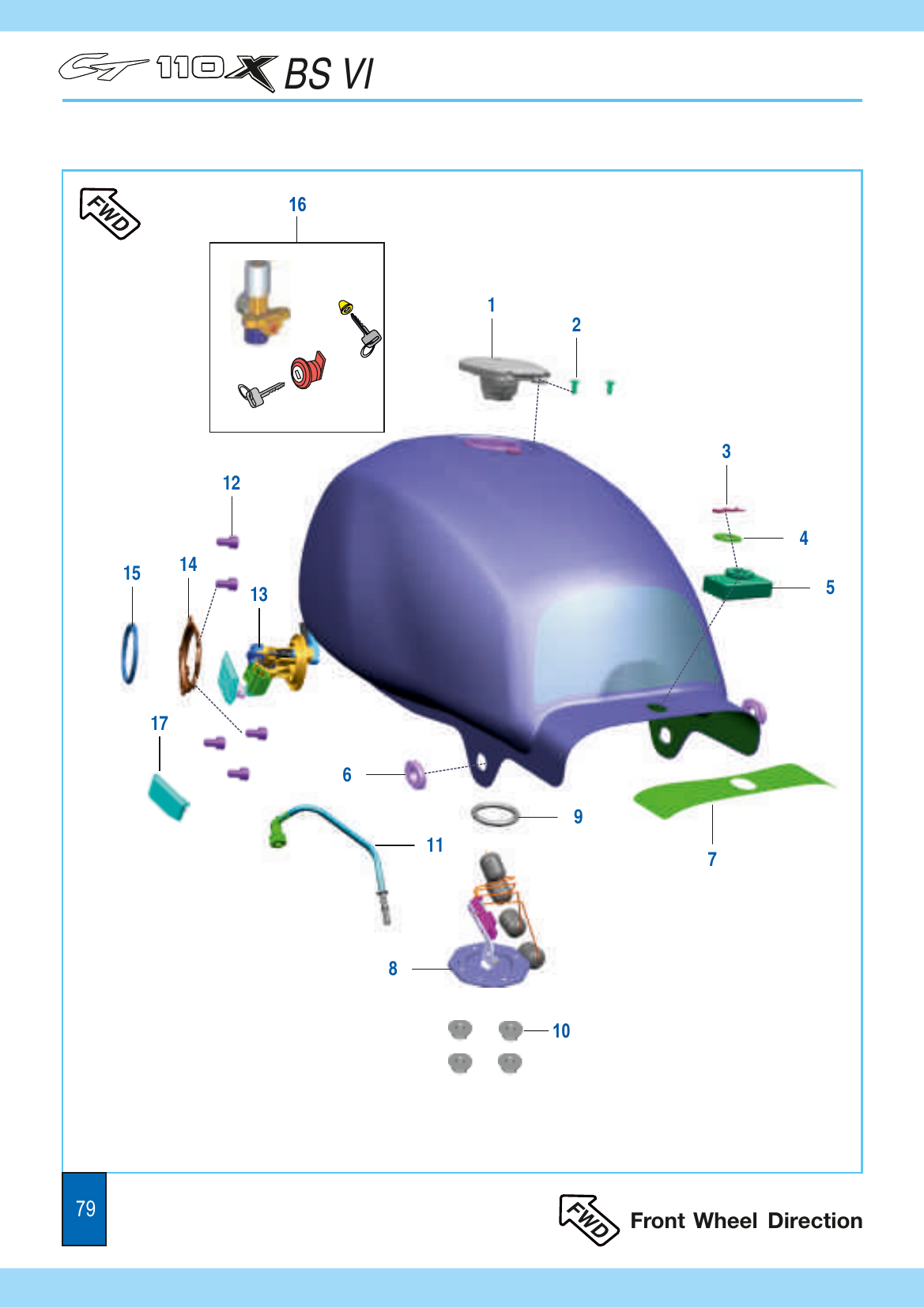

Petrol Tank Cap & Gauge Fuel
17 parts
Plate 38
Fittings - Petrol Tank, Side Covers & Seat Cowl
12 parts
Plate 39
Speedometer Assembly
18 parts
Plate 40

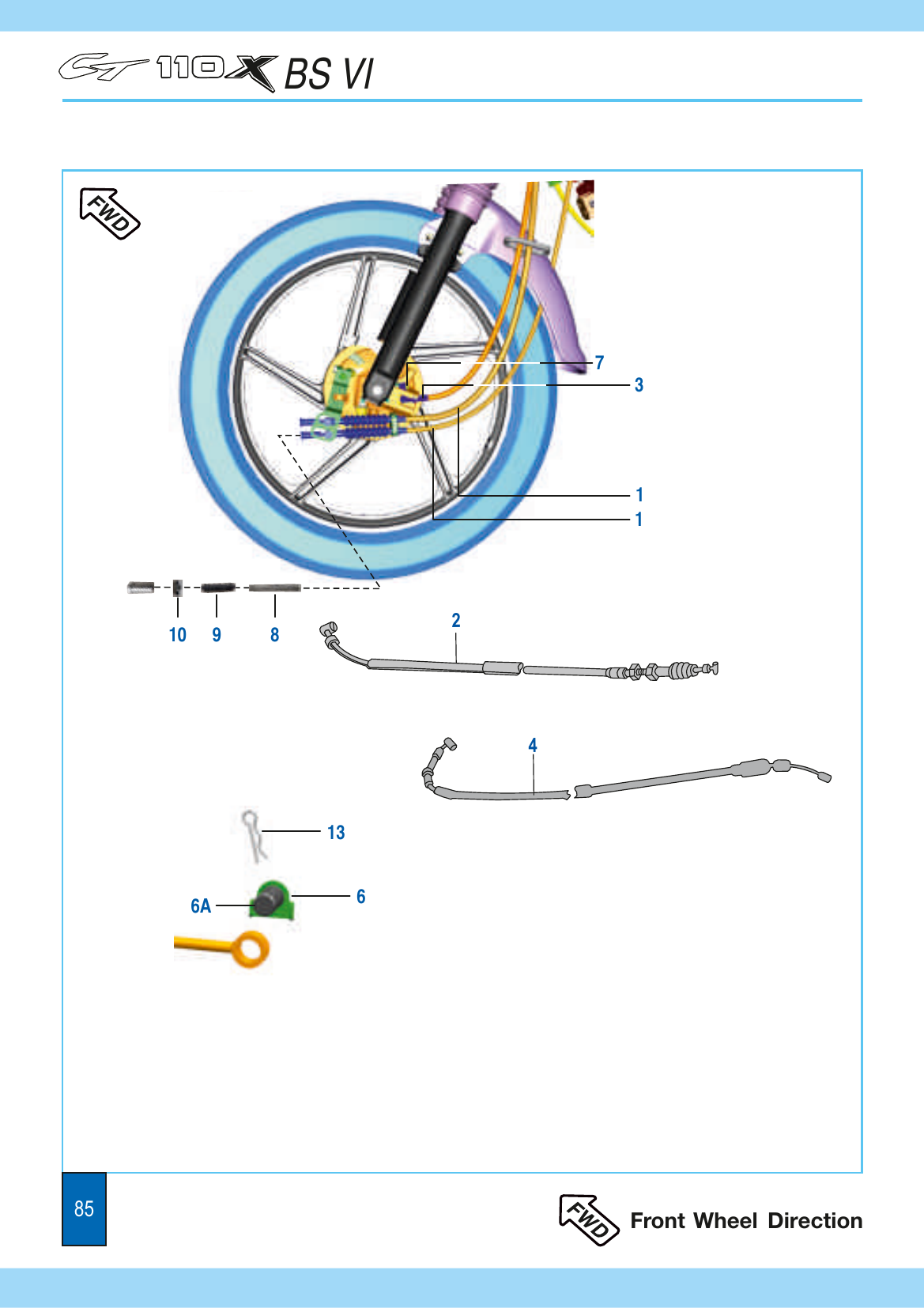

Control Cables
14 parts
Plate 41
Chain Case
4 parts
Plate 42

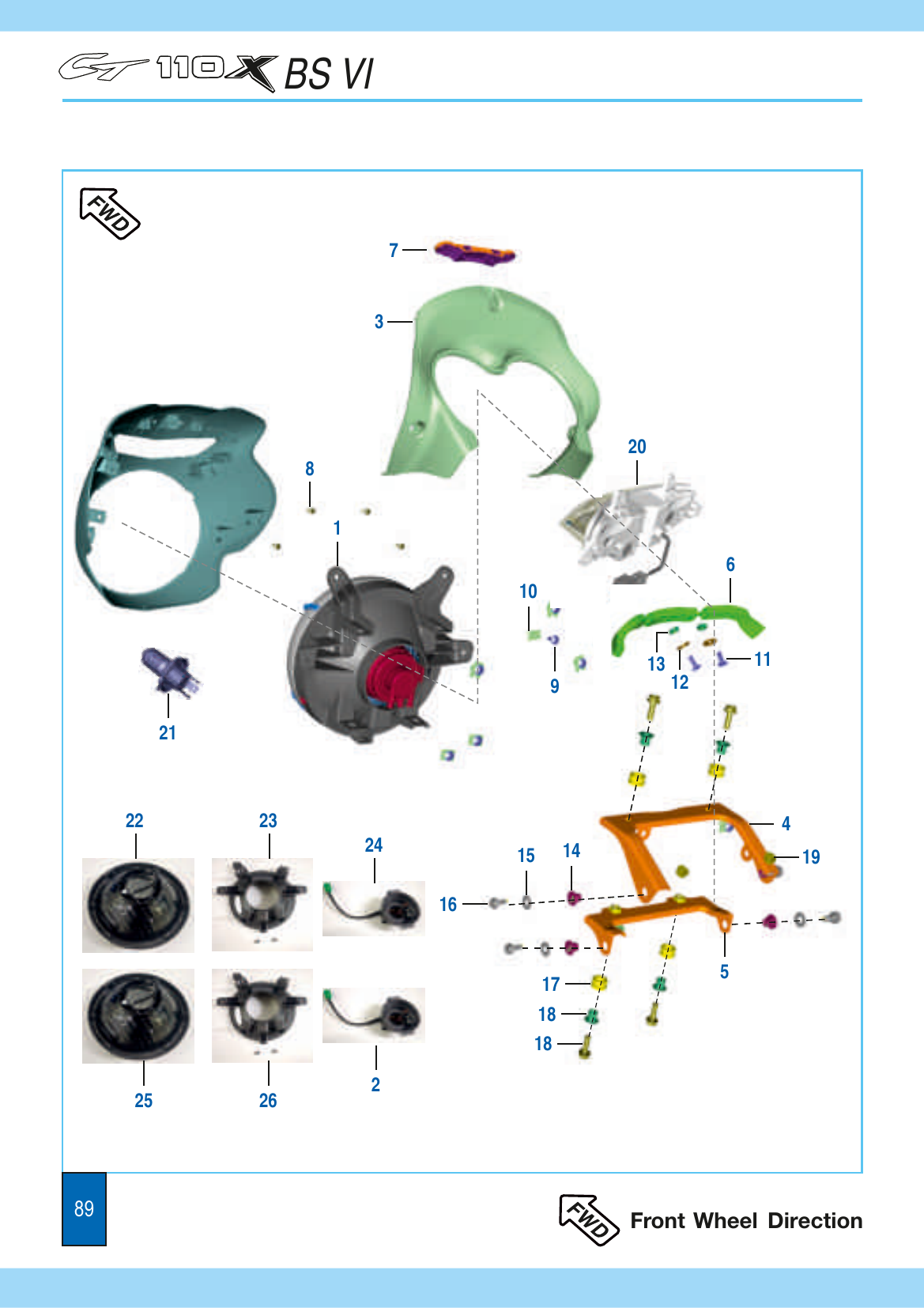

Head Lamp & Fairing
26 parts
Plate 43

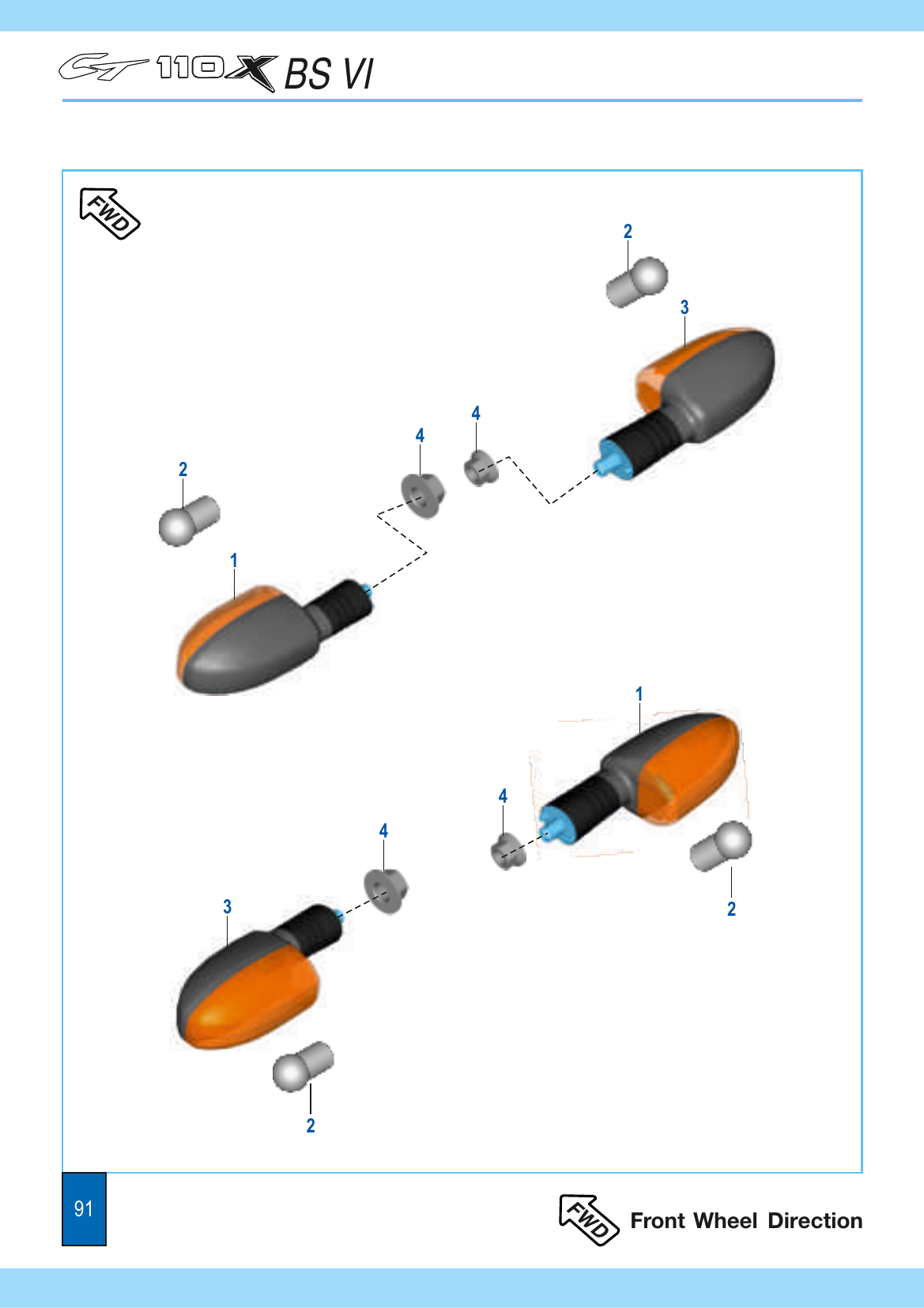

Indicator Light Assembly
4 parts
Plate 44

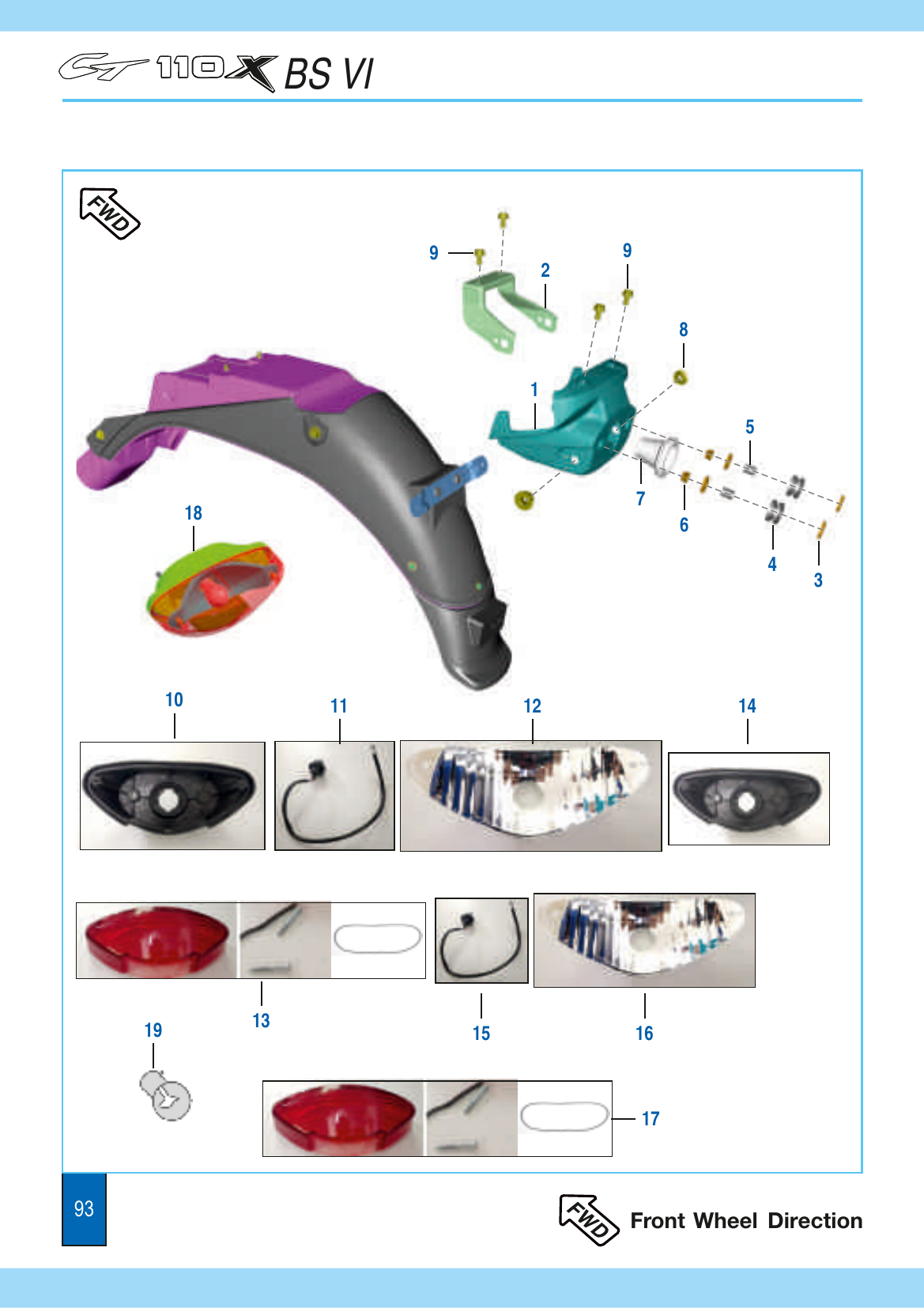

Tail Lamp Assembly
19 parts
Plate 45

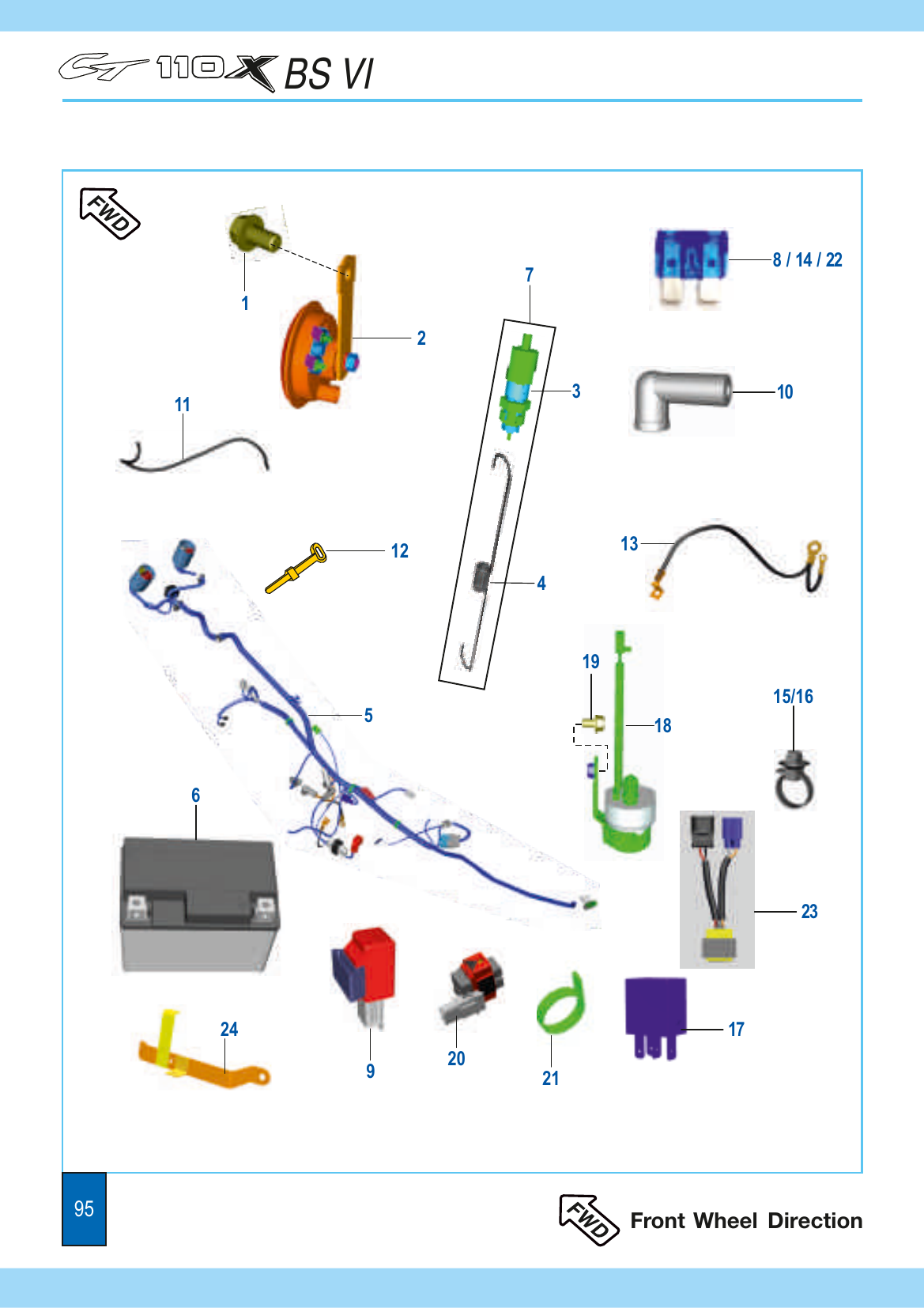

Electrical Equipments
25 parts
Plate 46

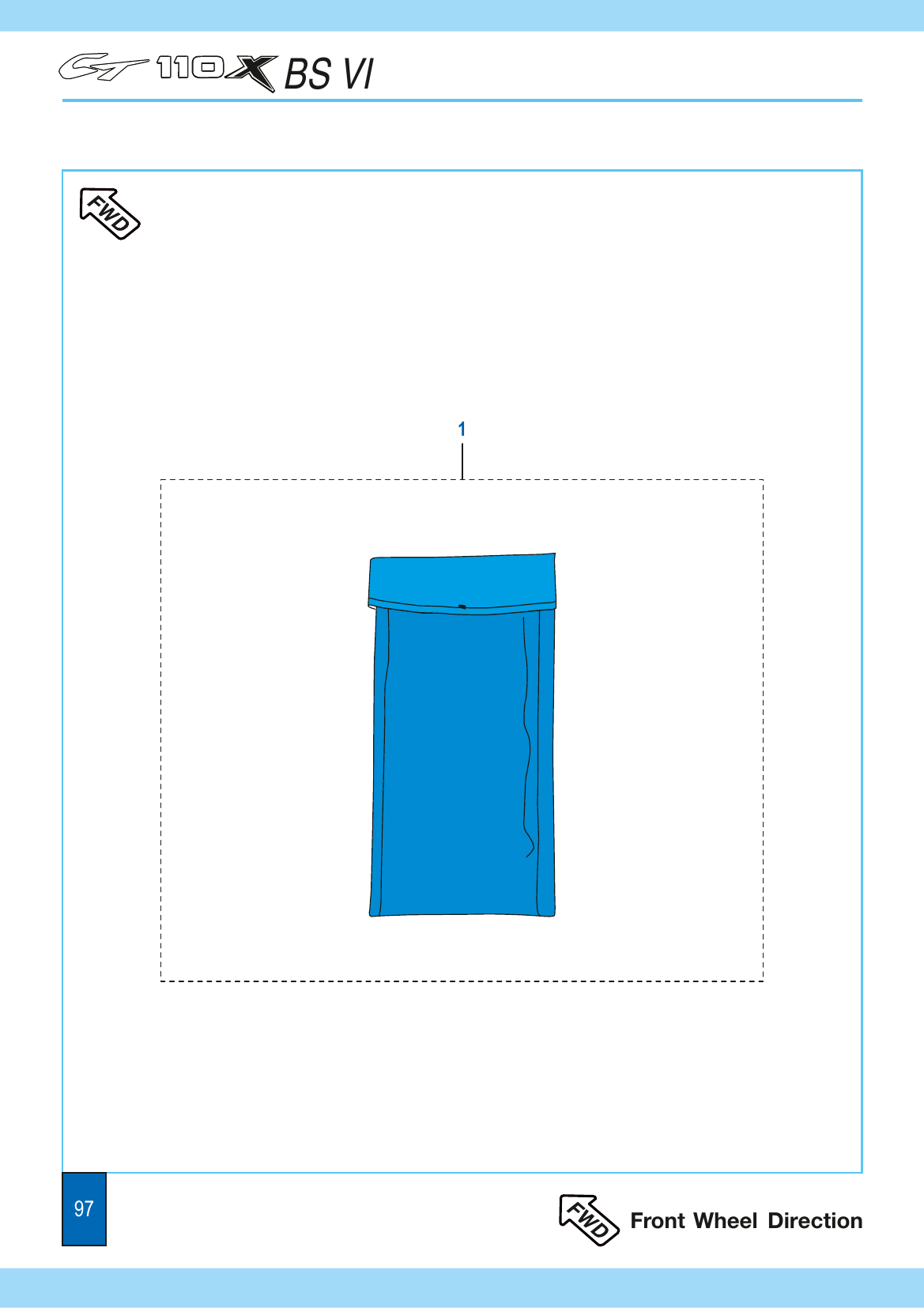

Tool Kit
2 parts
Plate 47

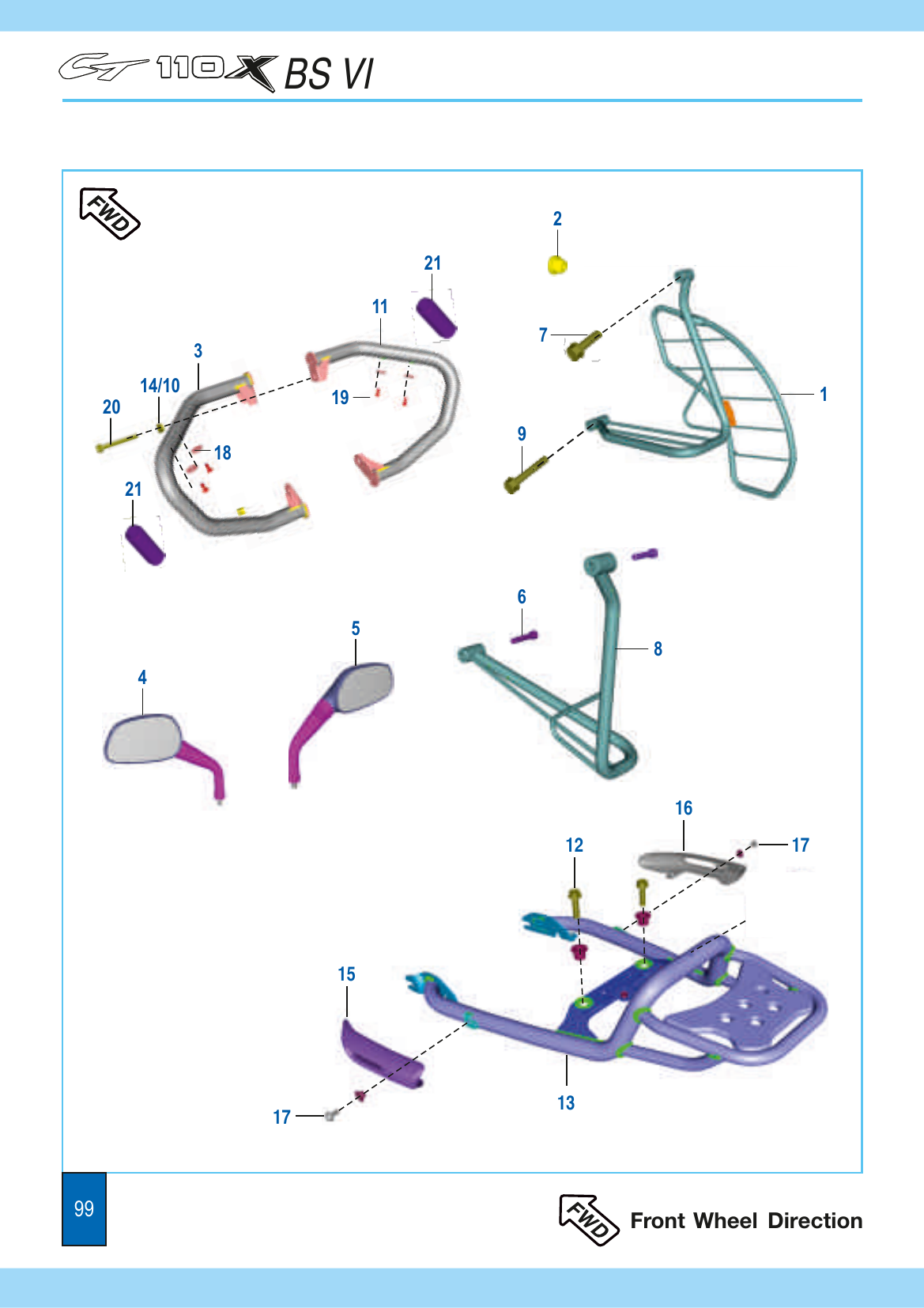

Accessories / Grip Frame
22 parts
Plate 48
Painted Parts and Decals
38 parts
Plate 49

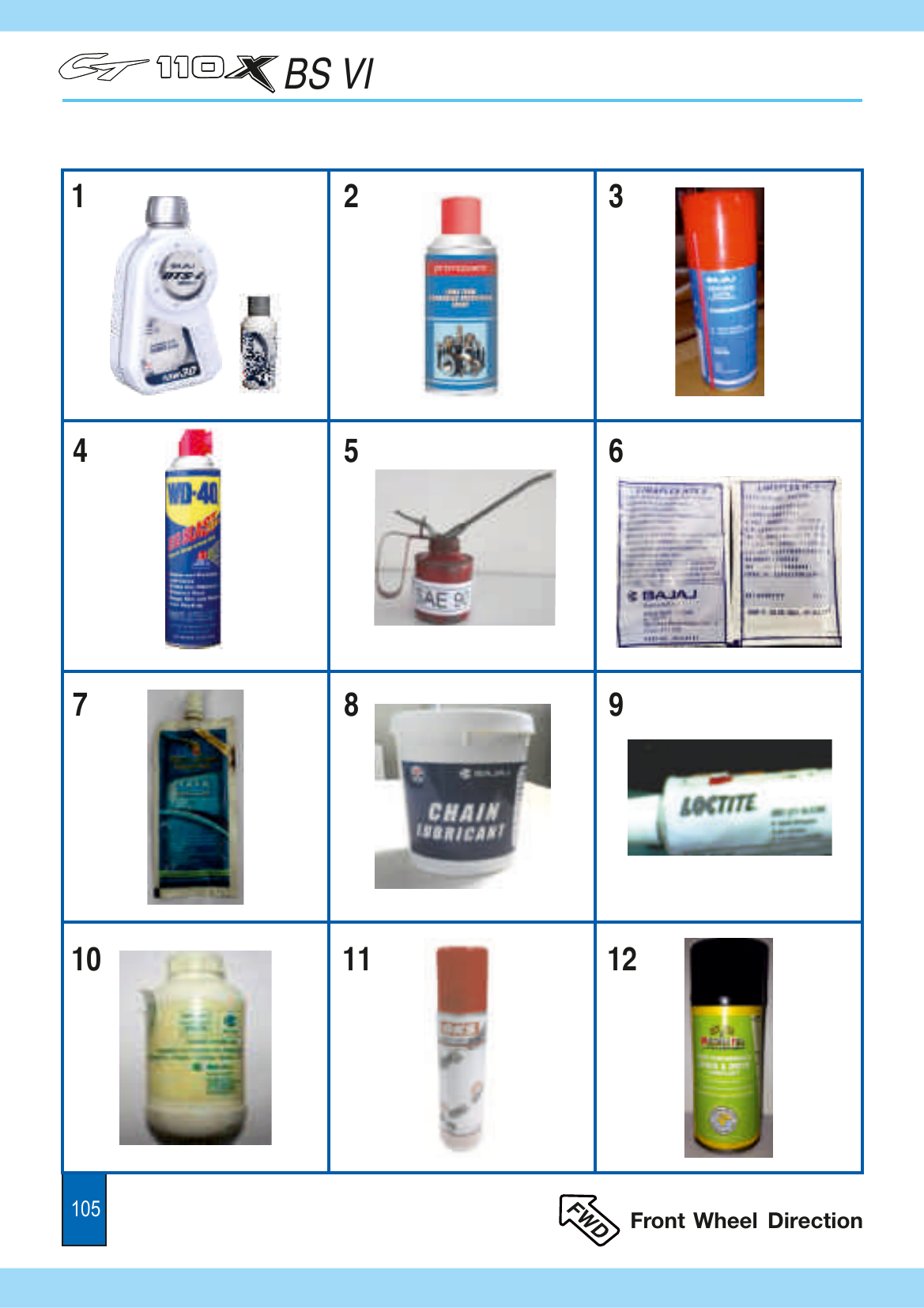

Consumable Parts
22 parts
