BAJAJ
Dominar 250 BS VI
1239 parts across 59 plates
ColorDoc: 71120159Rev: REV. 10Date: 2025-01-0159 assemblies · 17 kits
Plate 1
Cover Cylinder Head
5 parts
Plate 2

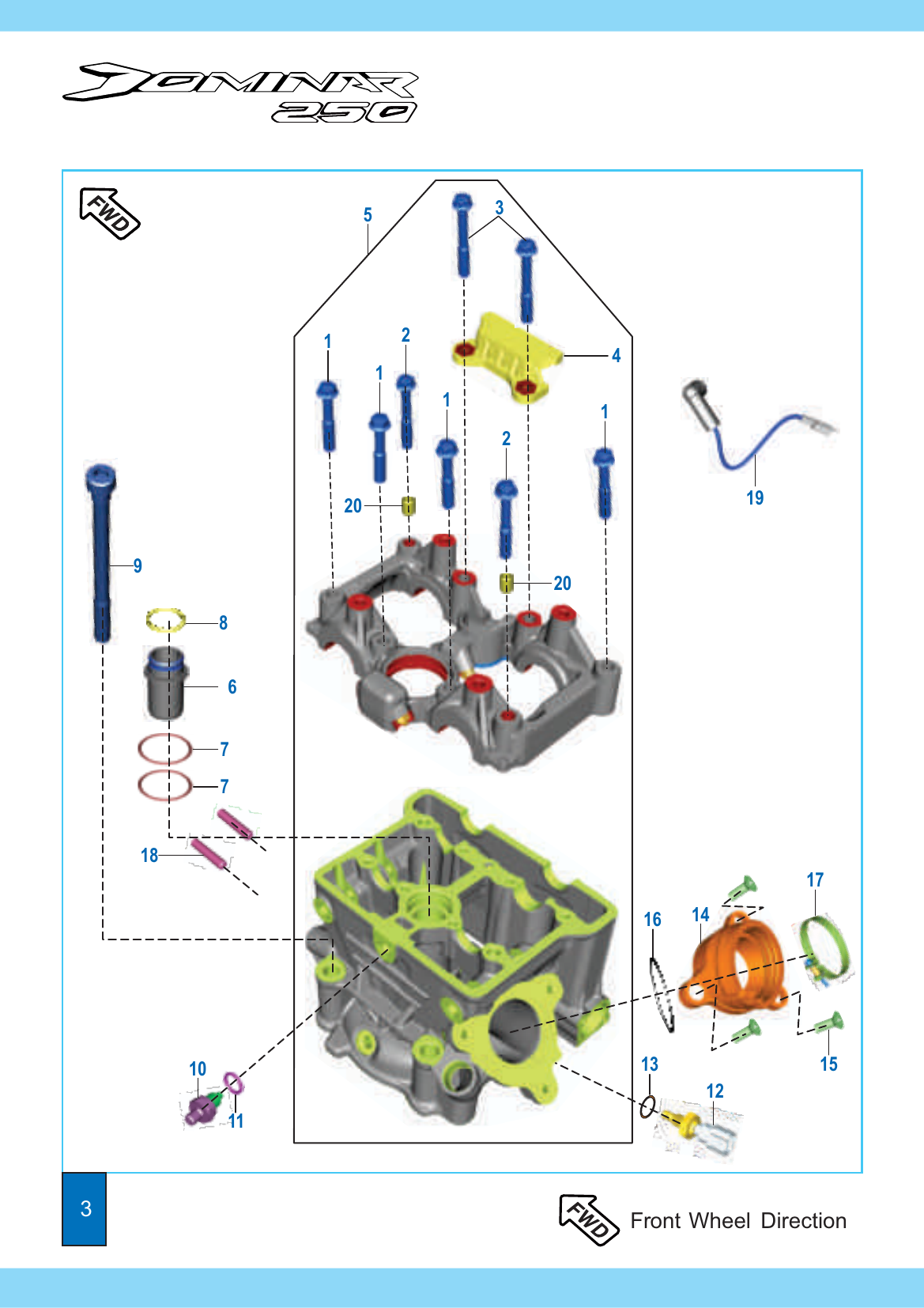

Cylinder Head
21 parts
Plate 3

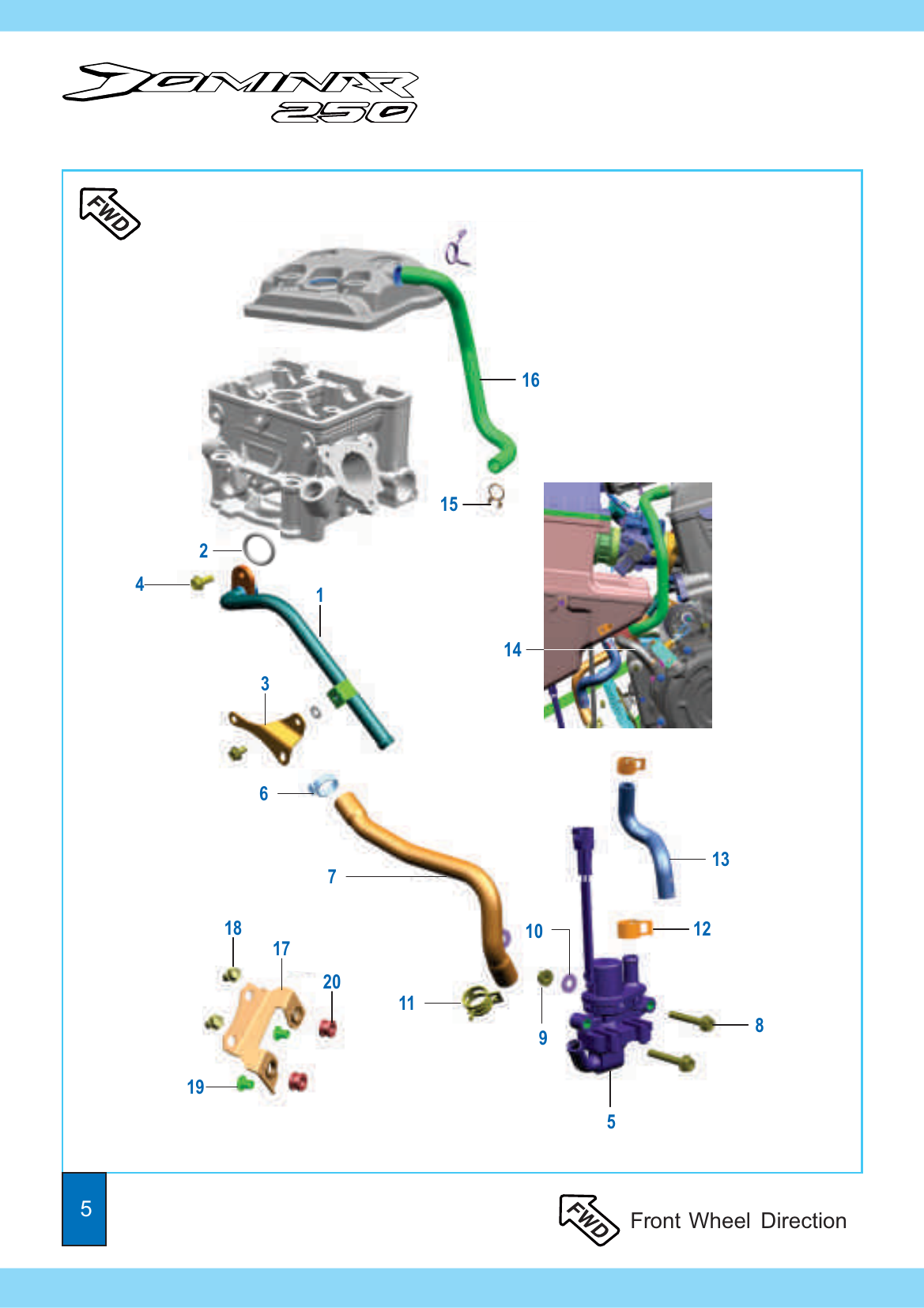

SAI System - For Single Spark version - JF36
20 parts
Plate 4
Rocker arm & Camshaft
66 parts
Plate 5
Chain Guide & Tensioner Assembly
8 parts
Plate 6
Cylinder & Piston
5 parts
Plate 7
Crankshaft Assembly
15 parts
Plate 8
Transmission
27 parts
Plate 9
Change Drum / Shift Fork
12 parts
Plate 10
Gear Change Mechanism
15 parts
Plate 11
Engine Assembly / Crankcase RH
23 parts
Plate 12
Crankcase LH
33 parts
Plate 13
Balancer Idler Gear & Water Pump
17 parts
Plate 14
Oil Pump & Evacuation Pump
9 parts

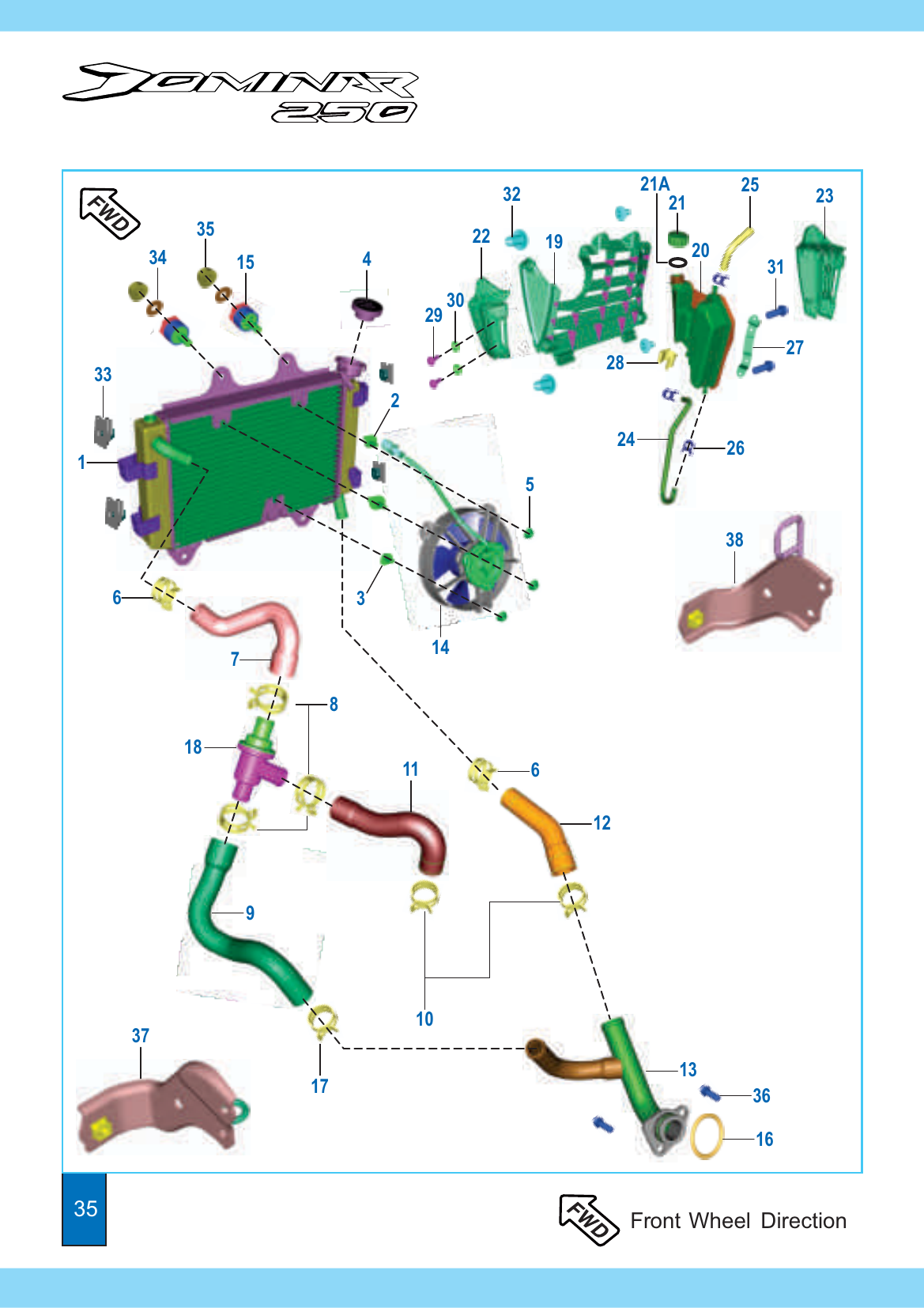

Plate 15
Cooling System
41 parts
Plate 16
Cover Clutch
19 parts
Plate 17
Cover Magneto
13 parts
Plate 18

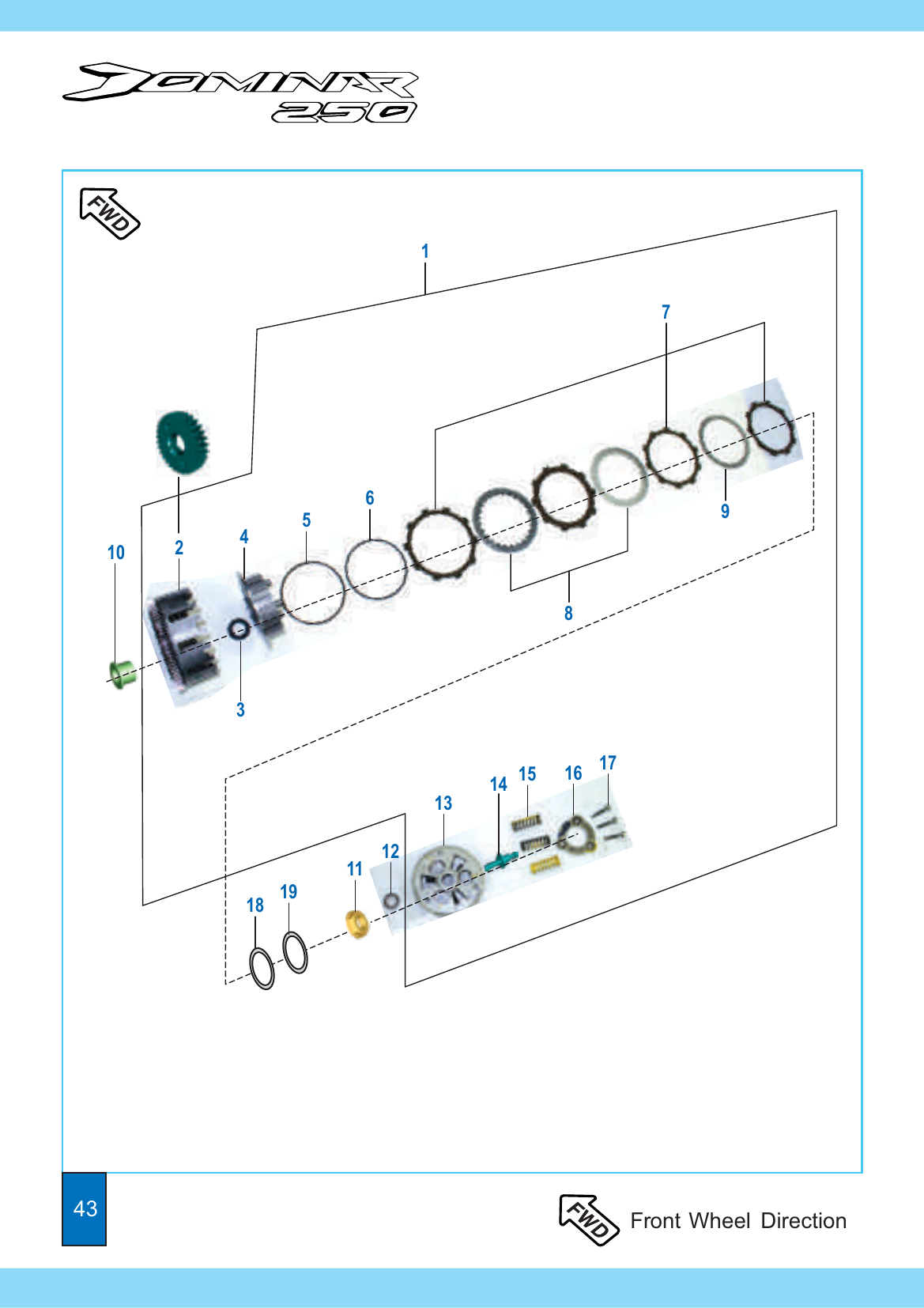

Clutch Assembly
19 parts
Plate 19
Throttle Body & Sensors
11 parts
Plate 20

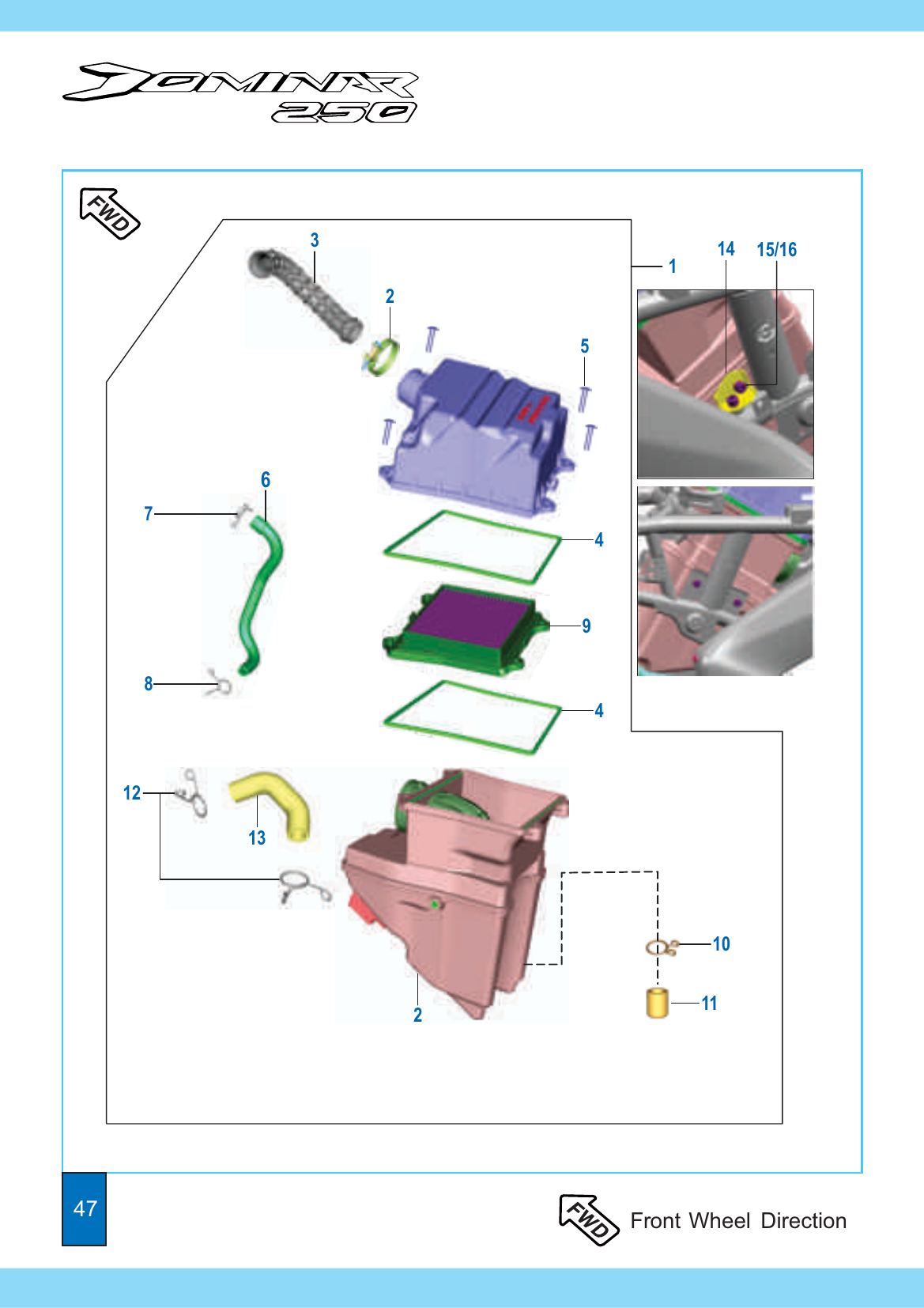

Air Cleaner Assembly
17 parts
Plate 21
Silencer Assembly
32 parts
Plate 22
Belly Pan
19 parts
Plate 23

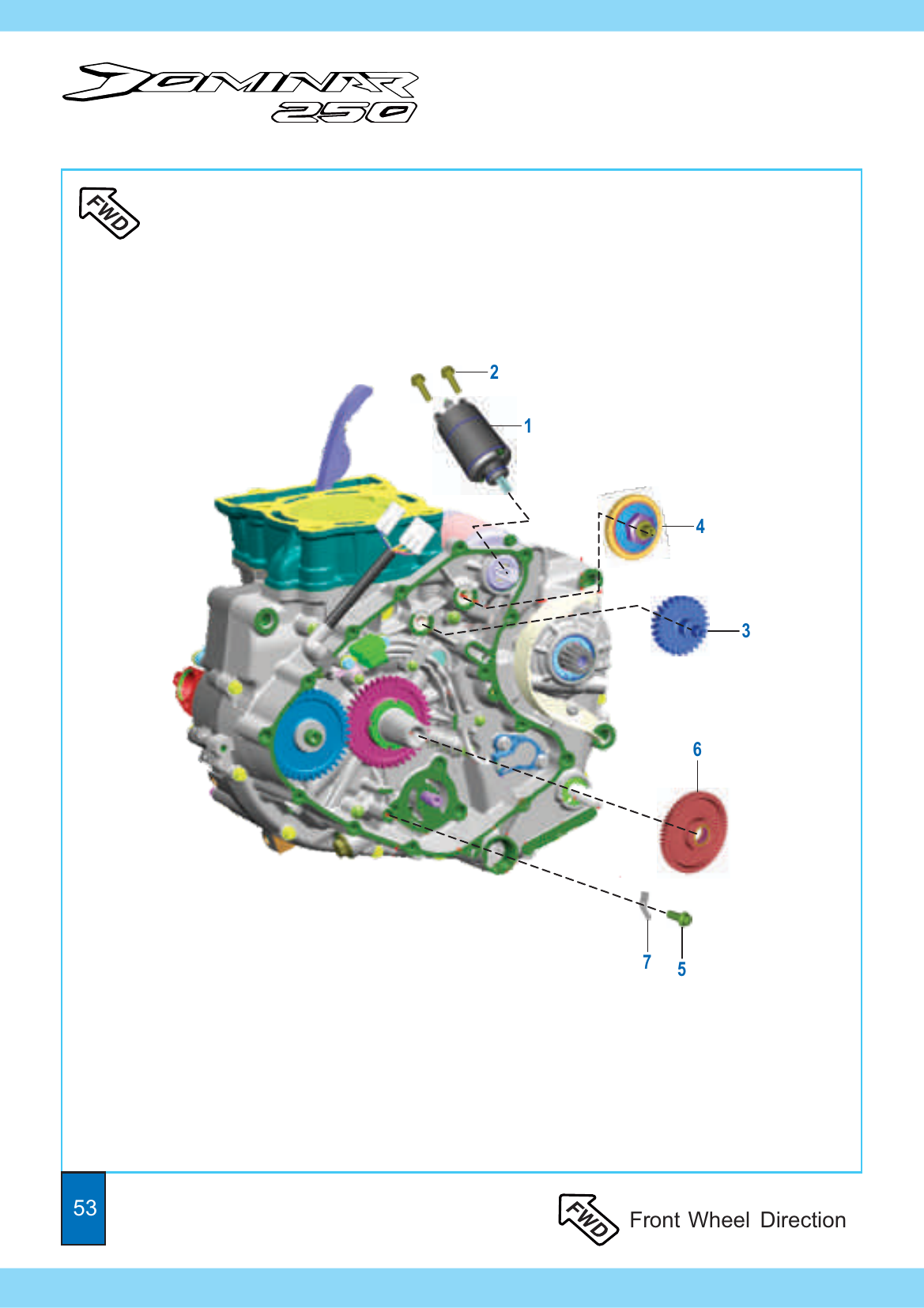

Starter Assembly
7 parts
Plate 24
Magneto, Regulator & ECU
25 parts
Plate 25
H.T. Coils
13 parts
Plate 26
H.T. Coils - Applicable for single spark version 00JF36ZZ
8 parts

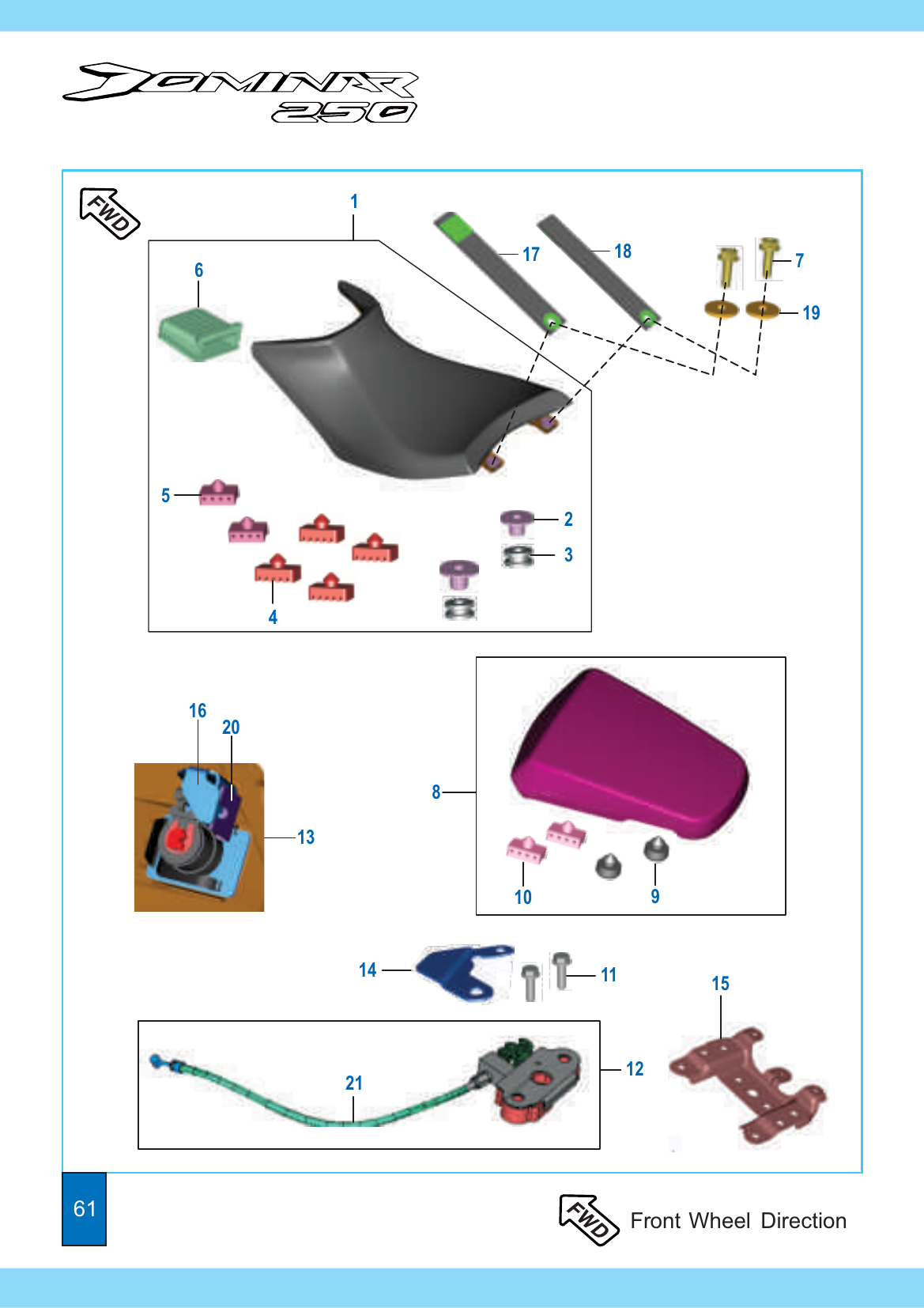

Plate 27
Seat Assembly & Seat Lock
22 parts
Plate 28
Engine Mountings
18 parts
Plate 29
Frame and Frame Fittings
19 parts
Plate 30
Swing Arm & Rear Shock Absorber
17 parts
Plate 31
Pillion Foot Rest
31 parts
Plate 32
Front Fender
6 parts
Plate 33
Side Stand Assembly
19 parts
Plate 34
Tubeless Tyre & Rim
7 parts
Plate 35
Front Hub
13 parts
Plate 36
Master Cylinder - Front
17 parts
Plate 37

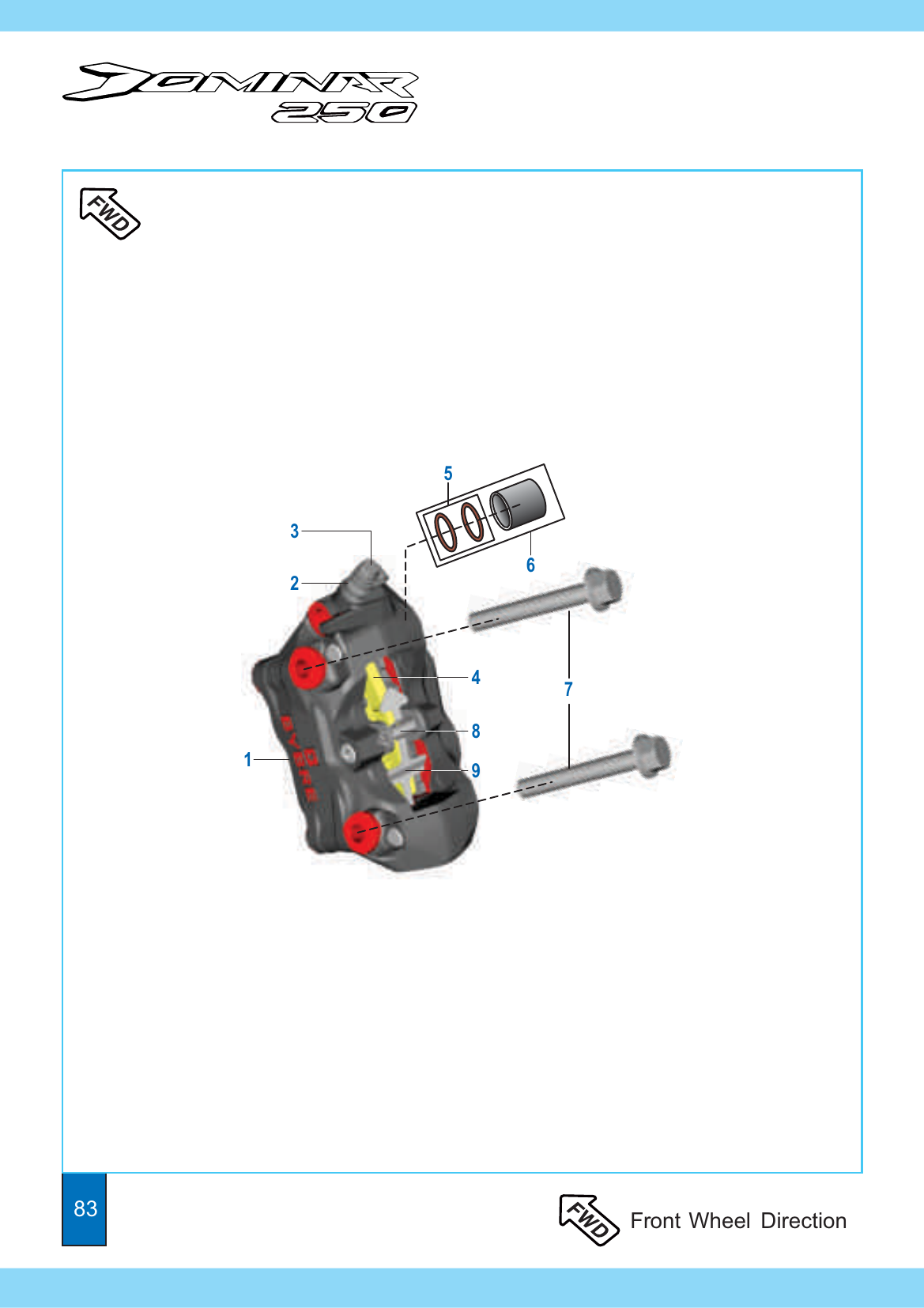

Caliper Assembly - Front
9 parts
Plate 38
Anti Brake Lock System
17 parts
Plate 39
Rear Disc Brake Assembly
19 parts
Plate 40
Rear Hub
24 parts
Plate 41
Rear Brake Pedal
13 parts
Plate 42
Handle Bar Assembly
36 parts
Plate 43
Front Fork
32 parts
Plate 44
Petrol Tank, Cap Tank & Gauge Fuel
31 parts
Plate 45
EVAP Mechanism
23 parts
Plate 45A
EVAP Mechanism - From Jan 25
18 parts
Plate 46

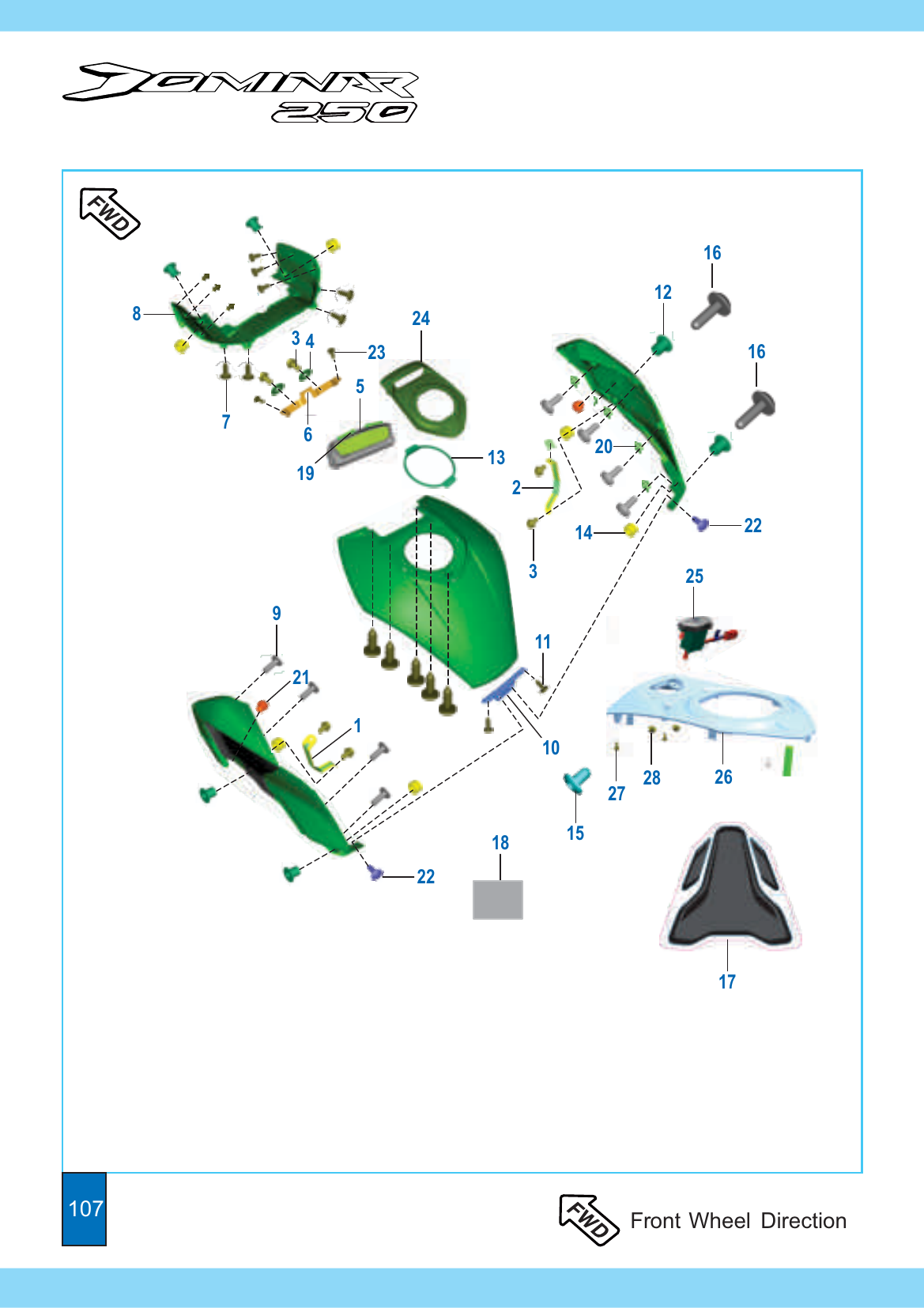

Fitting - Petrol Tank Cover
29 parts
Plate 47
Fitting - Side Covers, Seat Cowls & Under Tray Front
12 parts
Plate 48
Speedometer Assembly
19 parts
Plate 49
Control Cables & Chain Case
8 parts

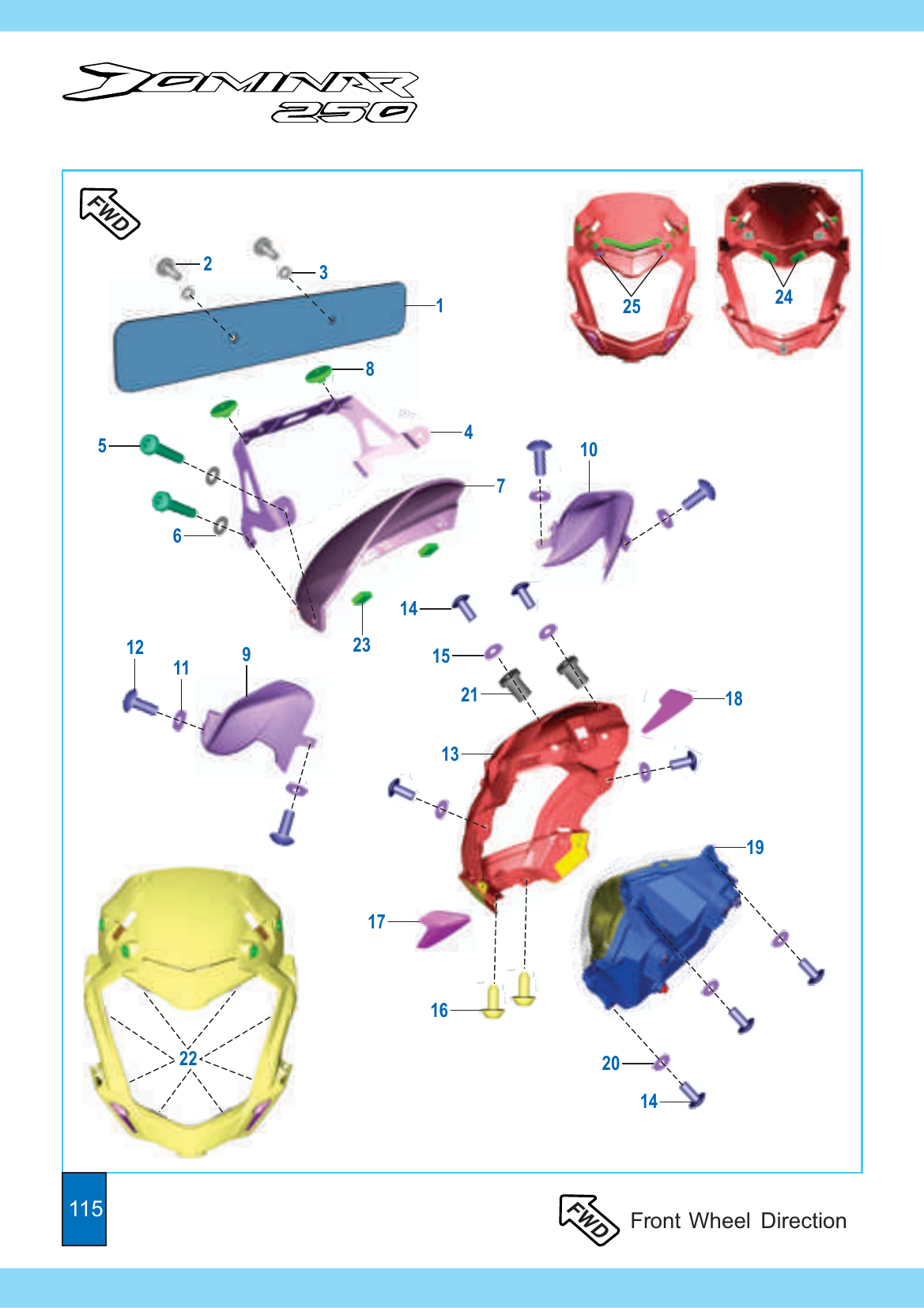

Plate 50
Head Lamp Assembly & Front Number Plate
25 parts
Plate 51

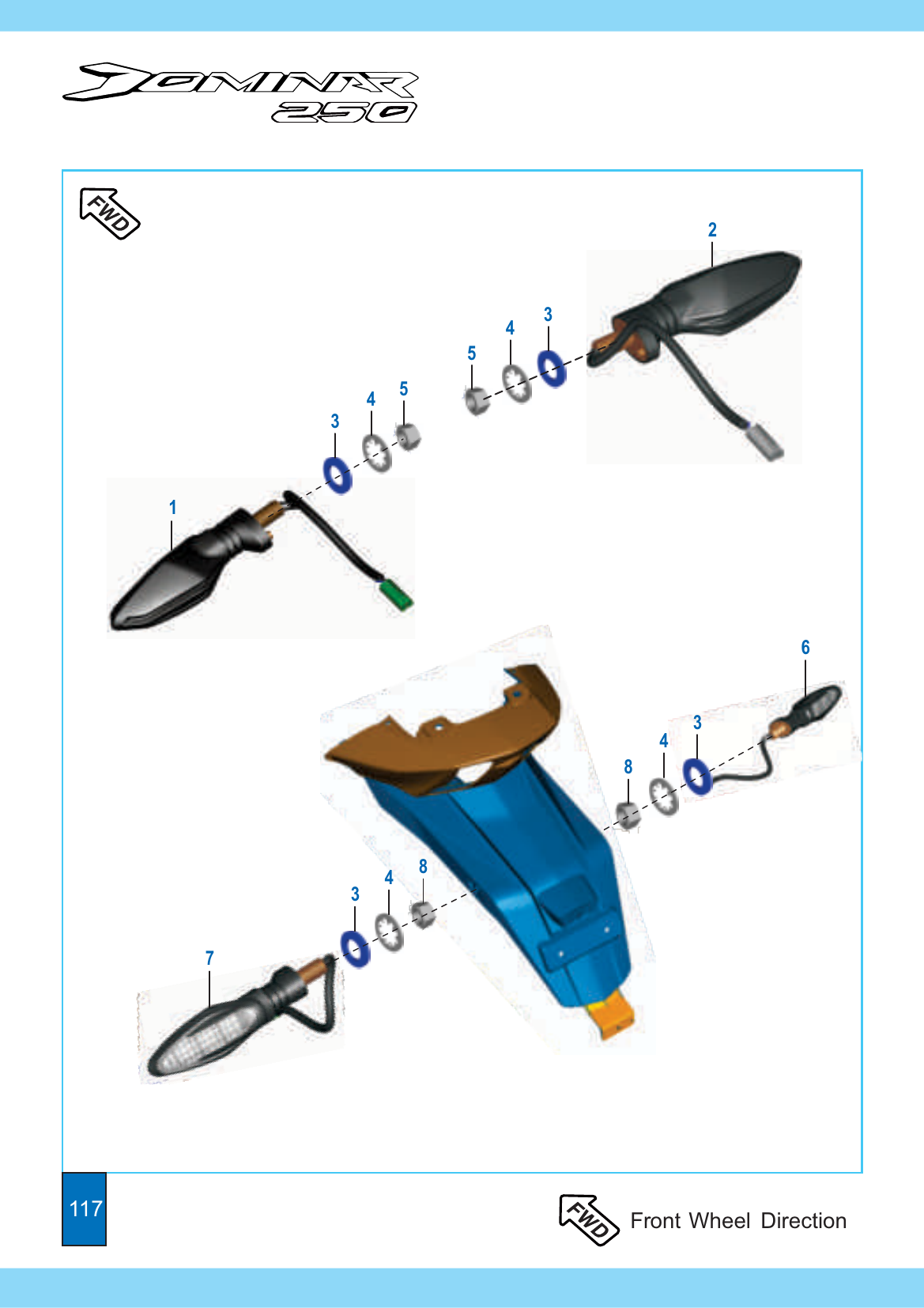

Indicator Light Assembly
8 parts
Plate 52
Tail Lamp Assembly & Rear Number Plate
22 parts
Plate 53
Electrical Equipments
41 parts
Plate 54
Tool Kit
2 parts
Plate 55
Accessories - Mirror, Leg Guards, Grab Handles & Saree Guard
24 parts
Plate 56
Painted Parts and Decals
48 parts
Plate 57
Painted Parts and Decals - From Aug. 2021
83 parts
Plate 58
Consumable Parts
27 parts
