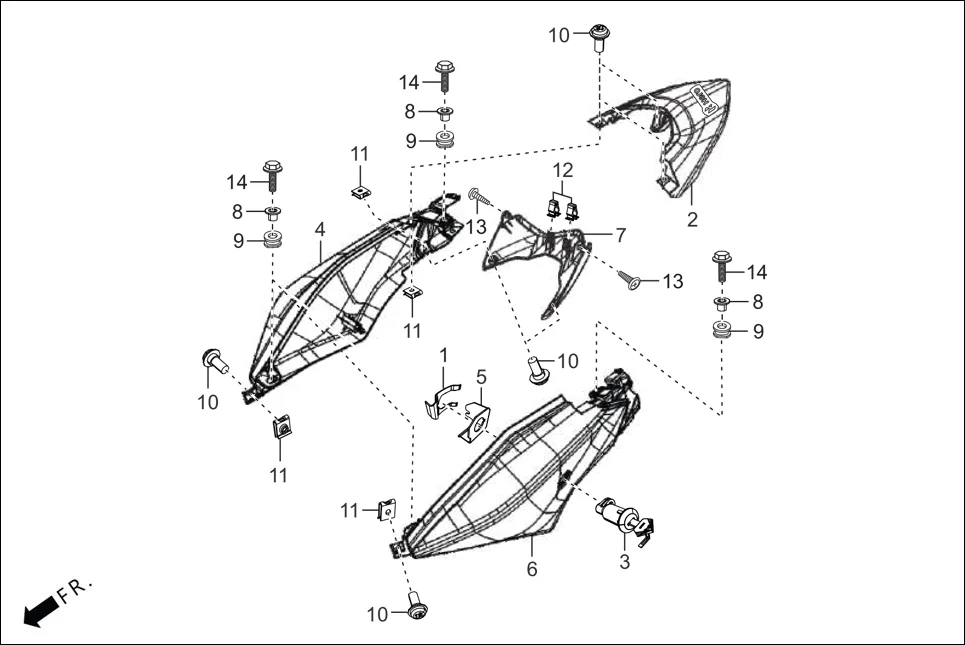

F-10A-BODY COVER(R./L. COWLS)
HeroXTREME 200S FF BS-VI OBD II(Jul,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 2 | 77235-AAB-D00T | SET COWL CENTER REAR | 1 | |
| 3 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 4 | 77240-ACN-000R | SET COWL R REAR (PANTHER BLACK MAT. NH-B08M) | 1 | |
| 4 | 77240-ACN-000T | SET COWL R REAR (MOON YELLOW Y-153) | 1 | |
| 4 | 77240-ACN-000W | SET COWL R REAR (MAT AXIS GREY ME. NH-303M) | 1 | |
| 4 | 77240-ACN-000S | SET COWL R REAR (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 5 | 77244-AAB-000 | STAY SEAT LOCK CABLE | 1 | |
| 6 | 77250-ACN-000R | SET COWL L REAR (PANTHER BLACK METALLIC NH-B08M) | 1 | |
| 6 | 77250-ACN-000T | SET COWL L REAR (MOON YELLOW Y-153) | 1 | |
| 6 | 77250-ACN-000W | SET COWL L REAR (MAT AXIS GREY ME. NH-303M) | 1 | |
| 6 | 77250-ACN-000S | SET COWL L REAR (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 7 | 77266-AAB-A000 | COWL RR UNDER | 1 | |
| 8 | 80111-KVN-900 | COLLAR, RR. FENDER | 4 | |
| 9 | 80112-KVN-900 | RUBBER, RR FENDER | 4 | |
| 10 | 90101-GE0-000 | SCREW, HINGE PATCH | 7 | |
| 11 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 12 | 90666-AAB-000 | CLIP SNAP FIT | 2 | |
| 13 | 93903-34310 | SCREW TAPPING M4X12 | 2 | |
| 14 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 |
