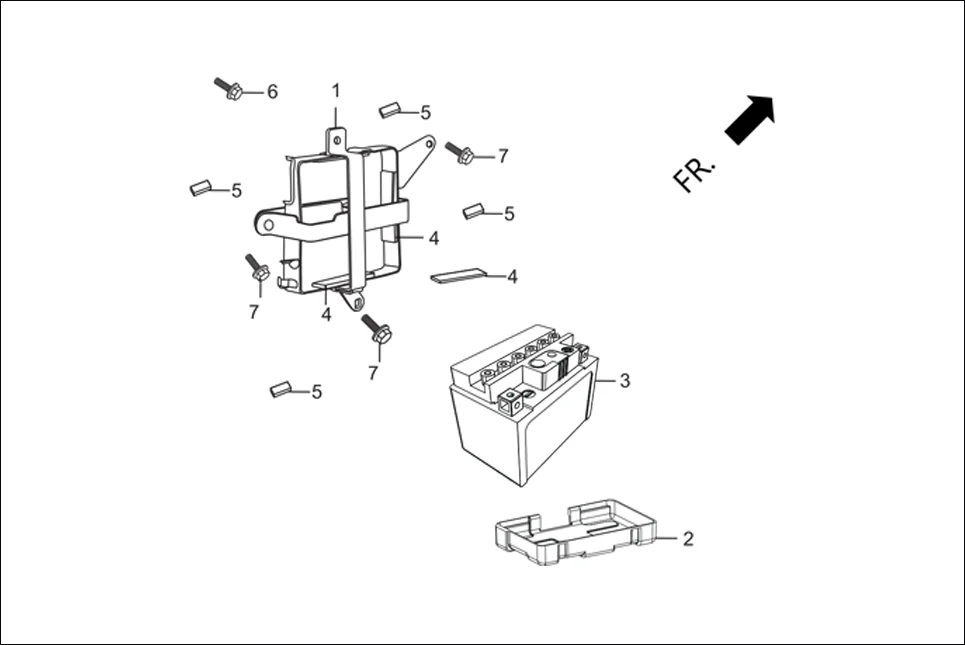

F-23A-BATTERY
HeroAchiever 150 (Sep, 2016) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-AAM-000 | CASE COMP, BATTERY | 1 | |
| 2 | 17250-KVN-970H | TRAY,BATTERY | 1 | |
| 3 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 4 | 50383-KRC-900 | RUBBER , BATTERY | 3 | |
| 5 | 83407-KCC-902 | CUSHION, FR. VISOR | 4 | |
| 6 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 3 |
