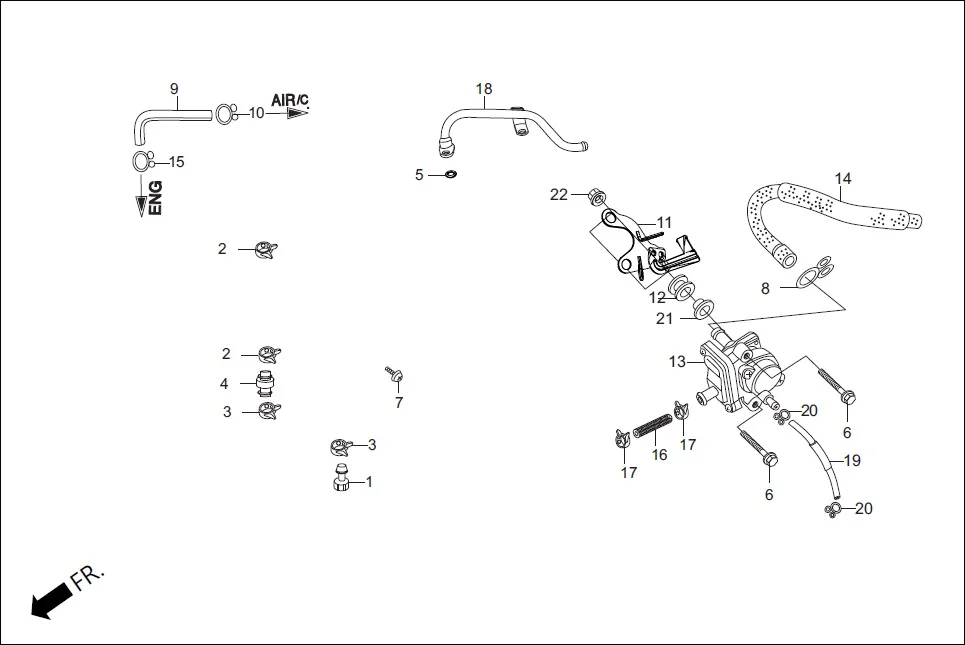

F-14A-AIR CLEANER /ASV ASSY.
HeroAchiever 150 (Sep, 2016) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17370-382-870 | PLUG, BREATHER TUBE | 1 | |
| 2 | 91405-KFN-850 | CLAMP, D-17 TUBE | 2 | |
| 3 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 2 | |
| 4 | 91463-393-780 | JOINT, TUBE | 1 | |
| 5 | 91309-MJ0-003 | O-RING, 9.8 X 2.8 | 1 | |
| 6 | 95701-06030-00 | BOLT, FLANGE, 6X30 | 2 | |
| 7 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 8 | 15772-KTN-900 | CLIP BREATHER TUBE | 1 | |
| 9 | 17371-KTN-700 | TUBE BREATHER A | 1 | |
| 10 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 12 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 13 | 18600-KSP-901 | VALVE, ASSY. AIR SUCTION | 1 | |
| 14 | 18601-KTN-700 | TUBE, A ASV | 1 | |
| 15 | 90601-KAF-003 | CLIP, SW. COVER | 1 | |
| 16 | 18602-KSP-900 | TUBE, B ASV | 1 | |
| 17 | 19509-KFN-850 | CLAMP, D16 TUBE | 2 | |
| 18 | 18640-KTN-900 | PIPE COMP., AIR FEED | 1 | |
| 19 | 18655-KTN-700 | TUBE, PB ASV | 1 | |
| 20 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 21 | 90502-KEZ-900 | COLLAR, RUBBER CUSHION | 2 | |
| 22 | 94050-06000 | NUT, FLANGE, 6 MM | 2 |
