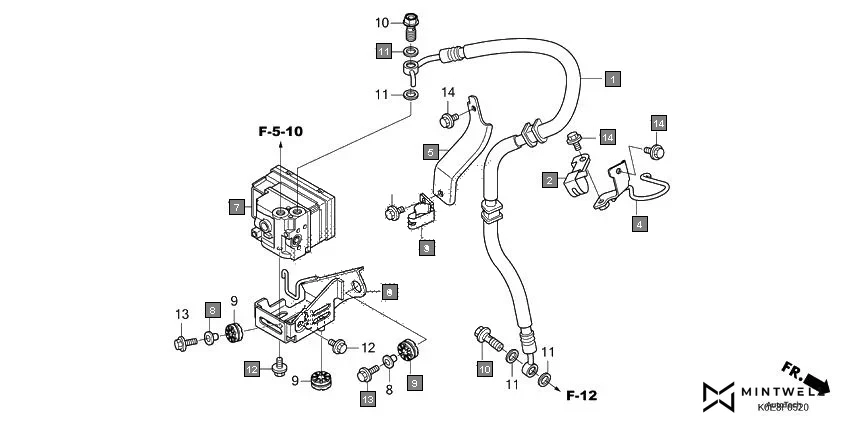

F-5-20-ABS MODULATOR
HONDAXBLADE CBF160FSK · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45127-K0E-D21 | HOSE COMP. B, FR. BRAKE | 1 | |
| 2 | 45155-K0E-D20 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 3 | 45156-K0E-D20 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 4 | 45160-K0E-D20 | STAY COMP. A, FR. BRAKE HOSE | 1 | |
| 5 | 45170-K0E-D00 | STAY COMP. B, FR. BRAKE HOSE | 1 | |
| 6 | 50345-K0E-D20 | STAY, ABS MODULATOR | 1 | |
| 7 | 57110-K0E-D21 | MODULATOR ASSY. | 1 | |
| 8 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 2 | |
| 9 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 3 | |
| 10 | 90145-GAZ-981 | BOLT, OIL, 10X22 | 2 | |
| 11 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 12 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 13 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 14 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 4 |
