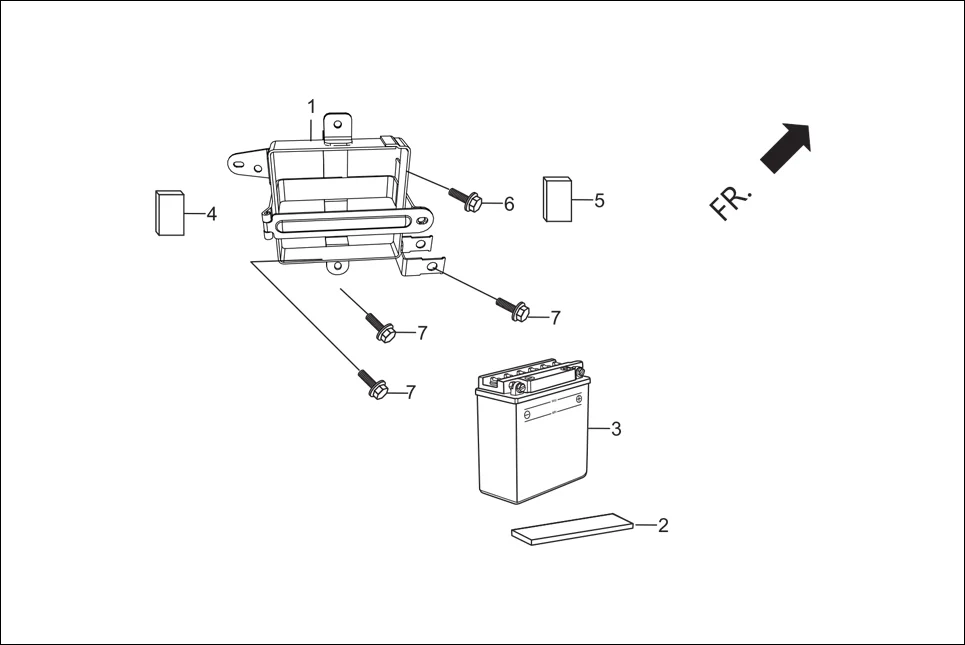

F-24A-BATTERY ASSY.
HeroXtreme Sports (Feb, 2015) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 1723A-AAB-100 | BATTERY PAN ASSY | 1 | |
| 2 | 17250-KVE-860 | TRAY,BATTERY | 1 | |
| 3 | 31500-KRP-801 | BATTERY ASSY | 1 | |
| 4 | 83407-KVE-860 | CUSHION BATTERY | 1 | |
| 5 | 50383-KVE-860 | RUBBER, BATTERY | 1 | |
| 6 | 90105-AAB-100 | BOLT SPECIAL 6X8 | 1 | |
| 7 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 3 |
