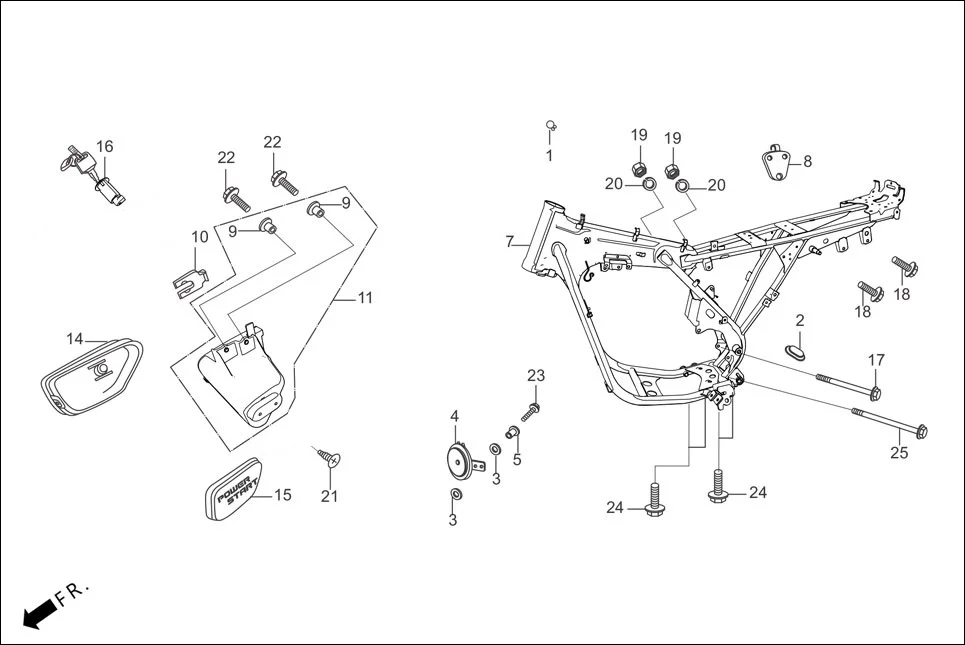

F-25-SELF-FRAME BODY/UTILITY BOX
HeroHF Deluxe (Apr, 2015) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17369-198-770 | CLIP BREATHER TUBE | 1 | |
| 2 | 32712-ZA0-000 | GROMMET, TERM/C | 1 | |
| 3 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 4 | 38110-AAH-00099 | HORN COMP | 1 | |
| 5 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 7 | 50100-AAH-110 | FRAME BODY COMP | 1 | |
| 8 | 50211-KCC-900 | PLATE, ENGINE HANGER | 1 | |
| 9 | 61107-KK6-000 | WASHER, 6MM | 2 | |
| 10 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 11 | 83510-AAH-100 | UTILITY BOX COMP | 1 | |
| 14 | 83540-AAH-100 | SET, UTILITY BOX R COVER | 1 | |
| 15 | 83530-AAH-100 | SET, UTILITY BOX L COVER | 1 | |
| 16 | 83550-AAH-101 | LOCK, SIDE COVER ASSY | 1 | |
| 17 | 90116-KCC-900 | BOLT FLANGE, 8 X 97 | 1 | |
| 18 | 90121-AAD-500 | BOLT FLANGE 8 X 16 | 2 | |
| 19 | 94030-08000 | NUT, HEX., 8 MM | 2 | |
| 20 | 94111-08000 | WASHER, SPRING, 8MM | 2 | |
| 21 | 93913-24320 | SCREW TAPPING, 4 X 14 | 1 | |
| 22 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 2 | |
| 23 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 24 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 4 | |
| 25 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 2 |
