OEM Part
50603-KB4-000
PIN, MAIN STEP BAR JOINT
Frame
Qty Required: 2
Ref #10 in Assembly
Part of Assembly

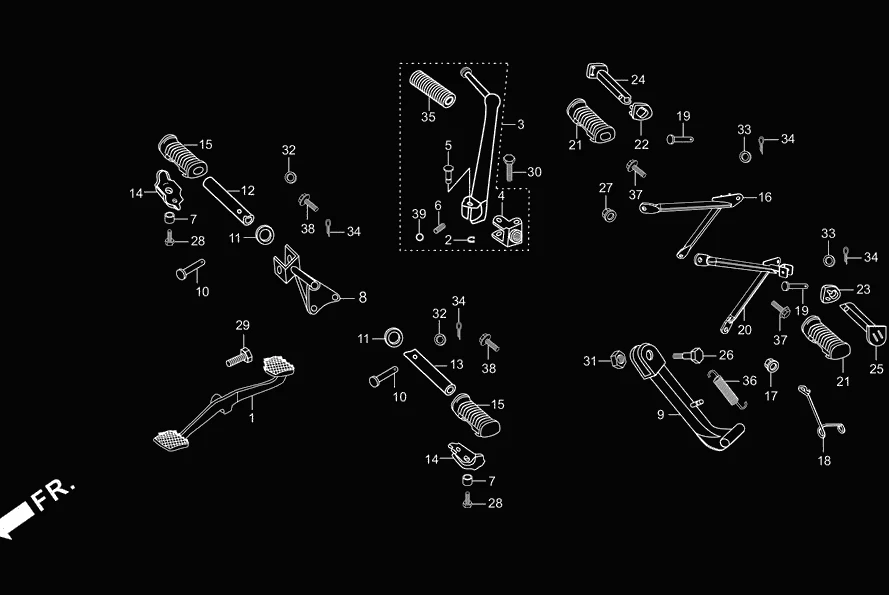

F-17
STEP ASSY./KICK STARTER/GEAR CHANGE PEDAL/SIDE
39 parts in this assembly
Assembly Diagram
Ref #10
Supported Vehicles
More compatible vehicles will be added soon.
Related Parts
24701-KWA-940
PEDAL, GEAR CHANGE
28293-KAG-900
CLIP, KICK STARTER
2830A-KWH-760
ARM ASSY., KICK STARTER WITH RUBBER
28302-KAG-900
JOINT, KICK ARM
28321-355-000
PIN, KICK STARTER
28333-124-000
SPRING, KICK STARTER STOPPER
