OEM Part
46515-KB9-000
TUBE , BRAKE PEDAL SPRING
Frame
Qty Required: 1
Ref #6 in Assembly
Part of Assembly
F-18
MAIN STAND / BRAKE PEDAL
16 parts in this assembly

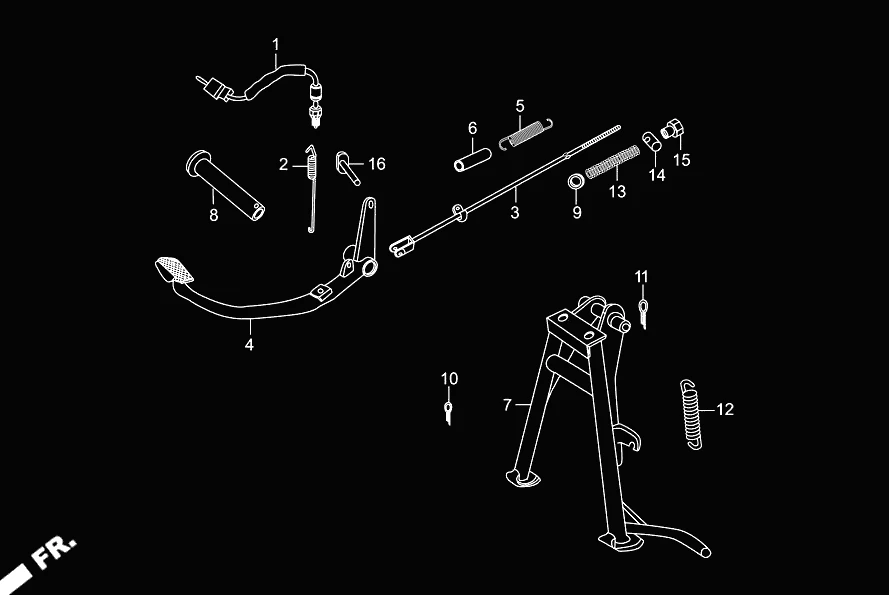

Assembly Diagram
Ref #6
Supported Vehicles
More compatible vehicles will be added soon.
Related Parts
35350-KCC-900
SWITCH ASSY., RR. STOP
35357-KCC-900
SPRING STOP SWITCH
43451-KCC-900
ROD COMP. RR. BRAKE
46500-KWA-910
PEDAL, BRAKE
46514-KCC-900
SPRING , BRAKE PEDAL
50500-KWH-760
STAND COMP., MAIN
