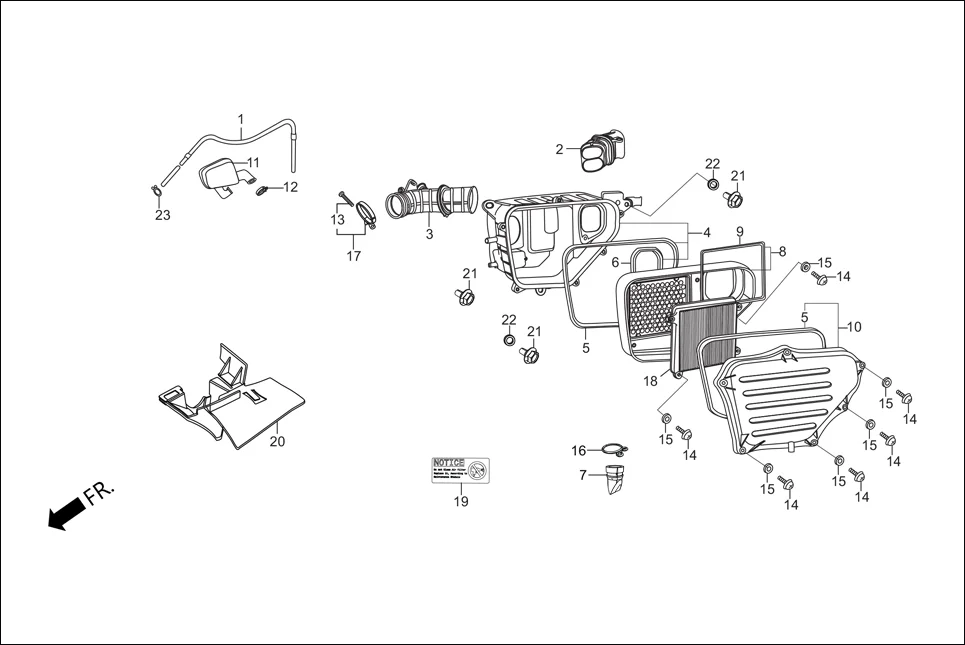

F-14-AIR CLEANER
HeroAchiever 150 (Sep, 2016) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16199-KTN-700 | TUBE, AIR VENT | 1 | |
| 2 | 17219-KTN-700H | DUCT AIR/C | 1 | |
| 3 | 17222-KTN-700 | TUBE, AIR/C CONN. | 1 | |
| 4 | 17225-KTN-700H | CASE SUB ASSY.AIR/C | 1 | |
| 5 | 17213-KRY-900 | SEALA AIR CLEANER | 2 | |
| 6 | 17214-KRY-900 | SEAL B AIR CLEANER | 1 | |
| 7 | 17234-KS4-770 | TUBE,AIR CLEANER DRAIN | 1 | |
| 8 | 17235-KTN-700 | HOLDER SUB ASSY., AIR / CLEANER | 1 | |
| 9 | 17215-KTN-700 | SEAL, HOLDER | 1 | |
| 10 | 17245-KTN-700H | COVER SUB ASSY.AIR/C | 1 | |
| 11 | 17311-KRC-910 | RESONATOR | 1 | |
| 12 | 17312-KFN-880 | BAND, RESONATOR | 1 | |
| 13 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 14 | 93500-05016-0A | SCREW, PAN, 5 X 16 | 11 | |
| 15 | 94101-05000 | WASHER , PLAIN, 5MM | 11 | |
| 16 | 95002-80000 | CLIP,C12 TUBE | 1 | |
| 17 | 95018-52320 | BAND 52 A/C CONN TUBE | 1 | |
| 18 | 17211-AAB-100 | ELEMENT COMP AIR/C | 1 | |
| 19 | 87509-AAP-000 | LABEL AIR/C ELEMENT NOTICE | 1 | |
| 20 | 17234-KRC-900 | COVER, AIR CLEANER DUCT | 1 | |
| 21 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 22 | 90417-041-000 | WASHER, GEAR SHIFT DRUM SIDE | 2 | |
| 23 | 95002-70000 | CLIP, C11 TUBE | 1 |
