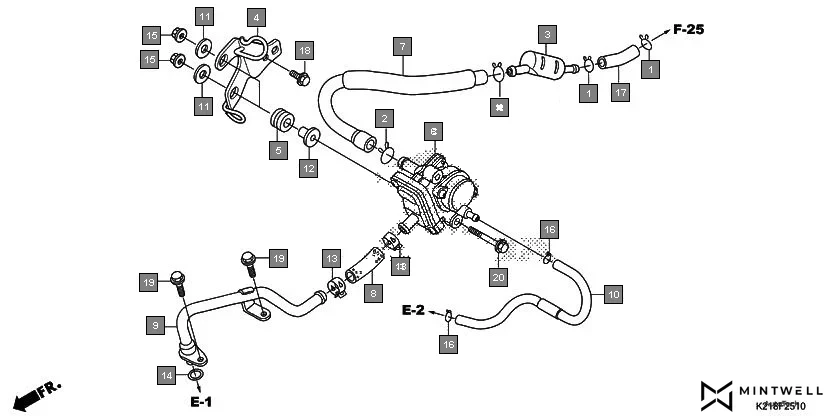

F-25-10-AIR SUCTION VALVE
HONDACB Trigger CBF150MD · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-KSP-D20 | CLIP, BREATHER PIPE(15) | 3 | |
| 2 | 17316-611-000 | CLIP, BREATHER TUBE | 1 | |
| 3 | 17360-KSP-900 | RESONATOR, AIR SUCTION VALVE | 1 | |
| 4 | 17365-K21-900 | PLATE, AIR SUCTION VALVE SETTING | 1 | |
| 5 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 6 | 18600-KSP-901 | VALVE, ASSY. AIR SUCTION | 1 | |
| 7 | 18601-KSP-900 | TUBE A, AIR SUCTION VALVE | 1 | |
| 8 | 18602-KSP-900 | TUBE, B ASV | 1 | |
| 9 | 18640-KSP-B00 | PIPE COMP., AIR FEED | 1 | |
| 10 | 18655-KSP-901 | TUBE, AIR SUCTION VALVE(PB) | 1 | |
| 11 | 90417-KSP-900 | WASHER, AIR SUCTION VALVE | 2 | |
| 12 | 90502-KEZ-900 | COLLAR, RUBBER CUSHION | 2 | |
| 13 | 90678-MR1-690 | CLIP, HOSE | 2 | |
| 14 | 91309-MJ0-003 | O-RING, 9.8 X 2.8 | 1 | |
| 15 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 16 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 17 | 95005-80055-20 | TUBE, 8X55(95005-80001-20M) | 1 | |
| 18 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 1 | |
| 18 | 95702-06012-07 | BOLT, FLANGE, 6X12 | 1 | |
| 19 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 19 | 95702-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 20 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 2 | |
| 20 | 95702-06035-00 | BOLT, FLANGE, 6X35 | 2 |
