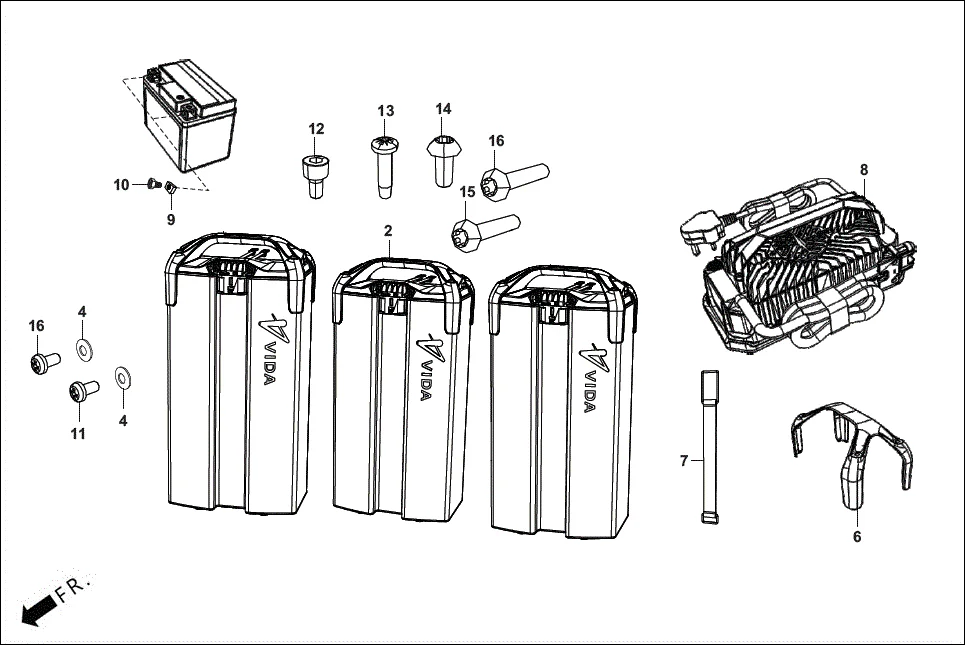

E-4-PRO-BATTERY
HeroVIDA V2 (Dec.,2024) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | VDACPCA7B004000G | 8P BATTERY | 1 | |
| 3 | VD31500-KVT-801 | BATTERY ASSY ETZ4-BS | 1 | |
| 4 | VD94101-05000 | WASHER PLAIN 5 MM | 2 | |
| 6 | VD31824-ACP-010 | HANDLE COVER | 1 | |
| 7 | VD50327-ACP-000 | BAND CHARGER | 1 | |
| 8 | VD31850-ACP-001 | PORTABLE BATTERY CHARGER | 1 | |
| 9 | VD90306-KRY-971 | NUT BATTERY TERMINAL | 2 | |
| 10 | VD90122-KRY-971 | BOLT BATTERY TERMINAL | 2 | |
| 11 | VD93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 12 | VDSFBLRA021G | BOLT ALLEN M5X0.8X10X8.8_S | 1 | |
| 13 | VDSFSRPP021G | SCREW PAN PLUS M4X1.8X16_S | 1 | |
| 14 | VDACPCA7B007000G | SCREW PAN TORX M2.5X0.45X6_B | 1 | |
| 15 | VDACPCA7B009000G | PAN TORX HEAD SCREW M2.5 X 14 | 1 | |
| 16 | VDACPCA7B008000G | PAN TORX HEAD SCREW M2.5 X 12 | 1 |
